Thermokon · Outdoor sensor · Modbus
AGS55+ RS485 Modbus
Outdoor temperature sensor with a stainless probe, Modbus RTU and 0 to 10 V output, with an optional LCD.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number658584
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- Modbus RTU
- Interface
- RS485, plus active 0 to 10 V or 0 to 5 V
Electrical
- Power supply
- 15 to 35 V DC SELV or 19 to 29 V AC SELV
- Power consumption
- Up to 2.5 W at 24 V DC
Environment
- Protection
- IP65 IP rating
Performance
- Output signal
- 0 to 10 V or 0 to 5 V, minimum load 10 kOhm, scalable
- Measuring range
- -35 to +70 °C
- Accuracy
- +/-0.5 K at 21 °C within the default range
- Probe length
- 25 mm, 6 mm diameter
Physical
- Housing material
- USE-M enclosure, PC
- Colour
- Pure white, transparent cover
Part numbers
From the manufacturer's datasheet for AGS55+ RS485 Modbus.
Overview

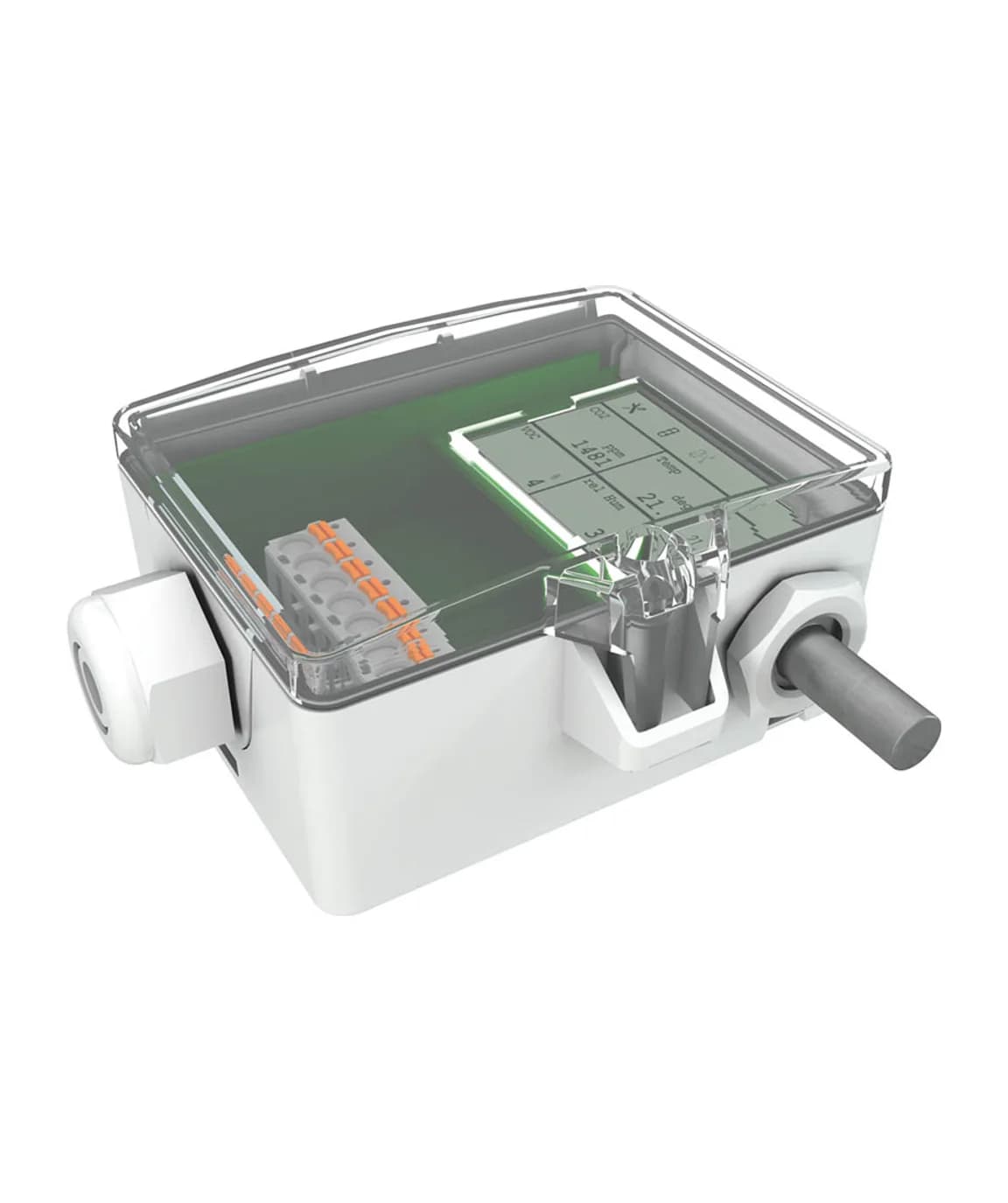

The AGS55+ measures temperature outdoors and in cold rooms, greenhouses and warehouses. A short 6 mm stainless steel probe responds quickly, and the IP65 enclosure has a hinged cover and removable cable entries. It offers Modbus RTU on RS485 and an active 0 to 10 V or 0 to 5 V output at the same time. The LCD version adds a colour display with a traffic light function.
