Thermokon · Duct sensor · Modbus

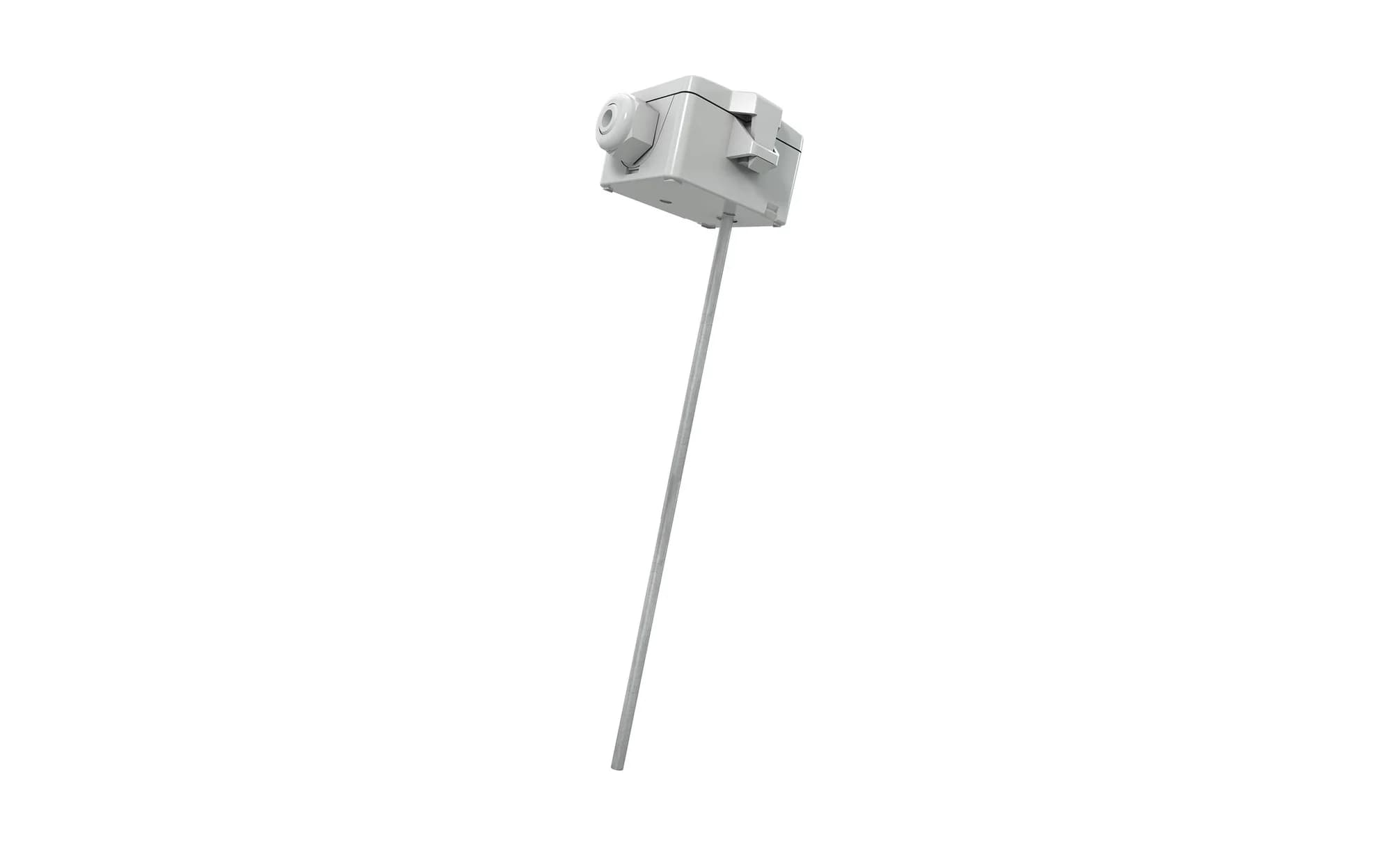

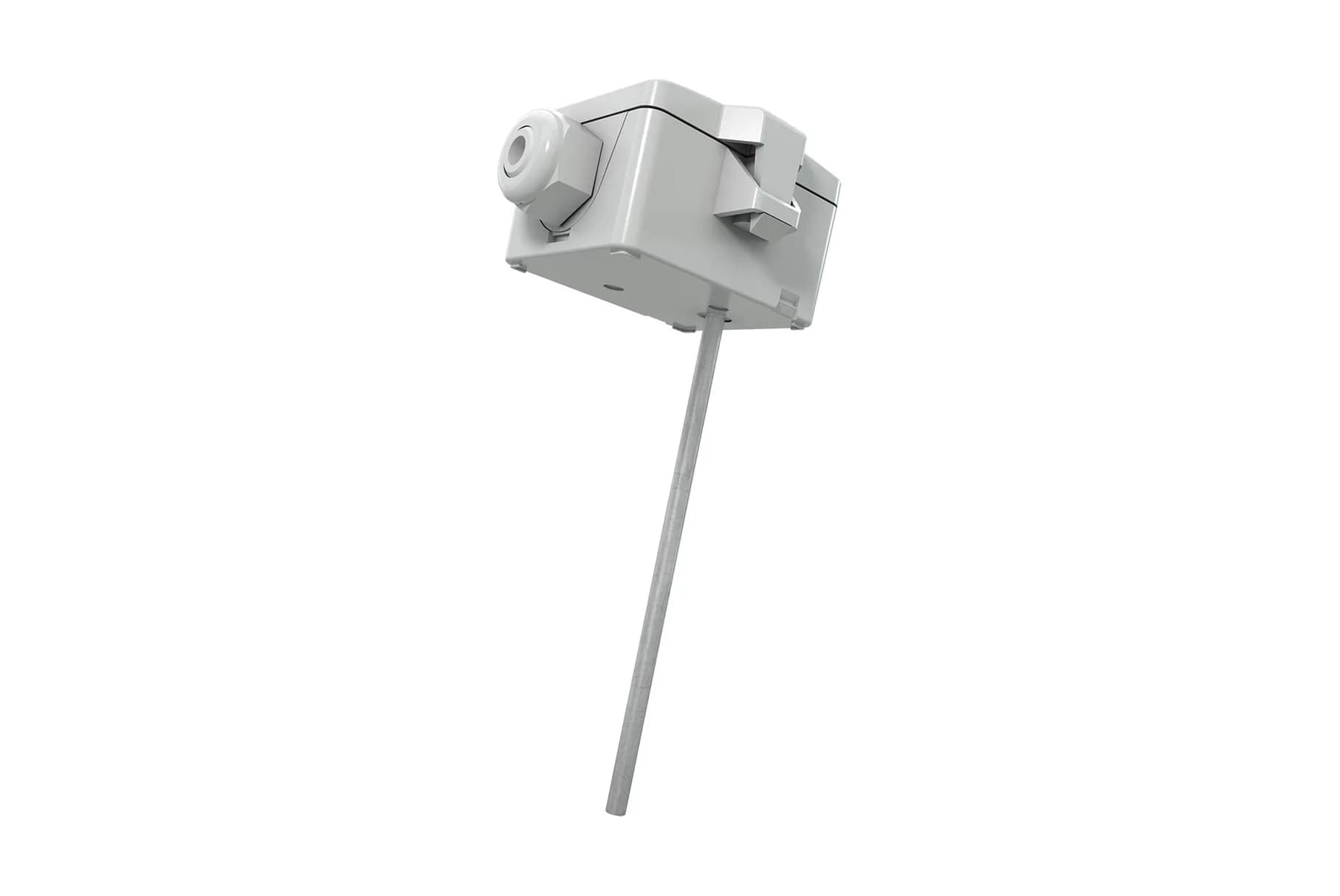

AKF10+ Basic RS485 Modbus
Duct or immersion temperature sensor with Modbus RTU, in probe lengths from 50 to 450 mm.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number747790
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Overview
The AKF10+ Basic measures air temperature in ducts and, with a thermowell, liquid temperature as an immersion sensor. It reports over RS485 Modbus RTU with address and baud rate set by DIP switches. The 6 mm stainless steel probe suits aggressive media and comes in seven lengths. For duct mounting use the MF6DS flexible flange or the brass MF6 flange; for immersion use a THVADS or THMSDS pocket.
Specification13 values · 7 part numbers
Communication
- Protocol
- Modbus RTU
- Interface
- RS485
- Connection
- Removable M20 cable entry, plug-in terminals up to 2.5 mm²
Electrical
- Power supply
- 15 to 24 V DC +/-10% SELV or 24 V AC +/-10% SELV
- Power consumption
- Up to 0.7 W at 24 V DC, 1.8 VA at 24 V AC
Environment
- Operating temperature
- -35 to +70 °C (enclosure)
- Humidity
- Maximum 85% rH, short term condensation
- Protection
- IP65
Performance
- Measuring range
- -50 to +160 °C
- Accuracy
- +/-0.5 K at 21 °C within the default range
- Probe length
- 50, 100, 150, 200, 250, 300 or 450 mm
Physical
- Housing material
- USE-S enclosure, PC; probe stainless steel V4A, 6 mm
- Colour
- Pure white, transparent cover
Part numbers
From the manufacturer's datasheet for AKF10+ Basic RS485 Modbus.
