UD-A and UD-V

Name: UD-A and UD-V
Brand: Thermokon

Panel displays that show a 4 to 20 mA or 0 to 10 V signal as a 4 digit number, with a programmable decimal point.

Sign in for trade prices

Availability and lead time confirmed on your quote

Range: 4 to 20 mA

Part number718189

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Connection: Plug and socket to DIN 43650

Electrical

Power supply: 24 V DC (UD-A); 24 V DC or 24 V AC +/-10% (UD-V)

Environment

Operating temperature: -20 to +75 °C
Protection: IP65 IP rating

Performance

Input signal: 4 to 20 mA (UD-A) or 0 to 10 V (UD-V)
Display: 4 digit LED, -1999 to +9999, programmable decimal point
Accuracy: 0.2% of full scale

Physical

Housing material: ABS, polycarbonate cover
Colour: Black

Part numbers

From the manufacturer's datasheet for UD-A and UD-V.

Overview

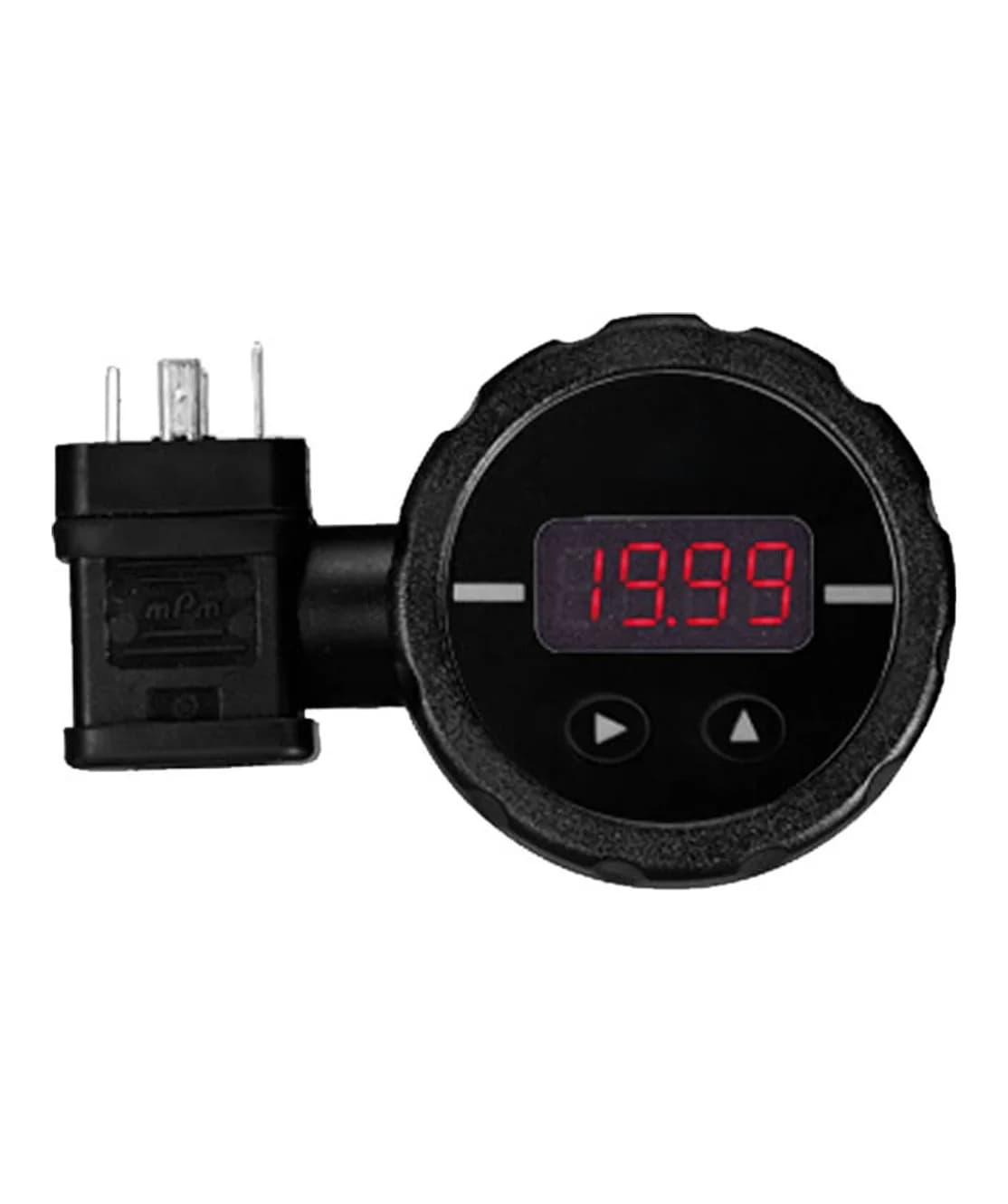

The UD-A shows a 4 to 20 mA signal and the UD-V shows a 0 to 10 V signal on a four digit LED readout. The range is -1999 to +9999 and the decimal point and scaling are set with the buttons on the unit. Both are black ABS housings with a polycarbonate cover and an IP65 rating, connected through a DIN 43650 plug and socket.
