Thermokon · Pressure sensor · LoRaWAN

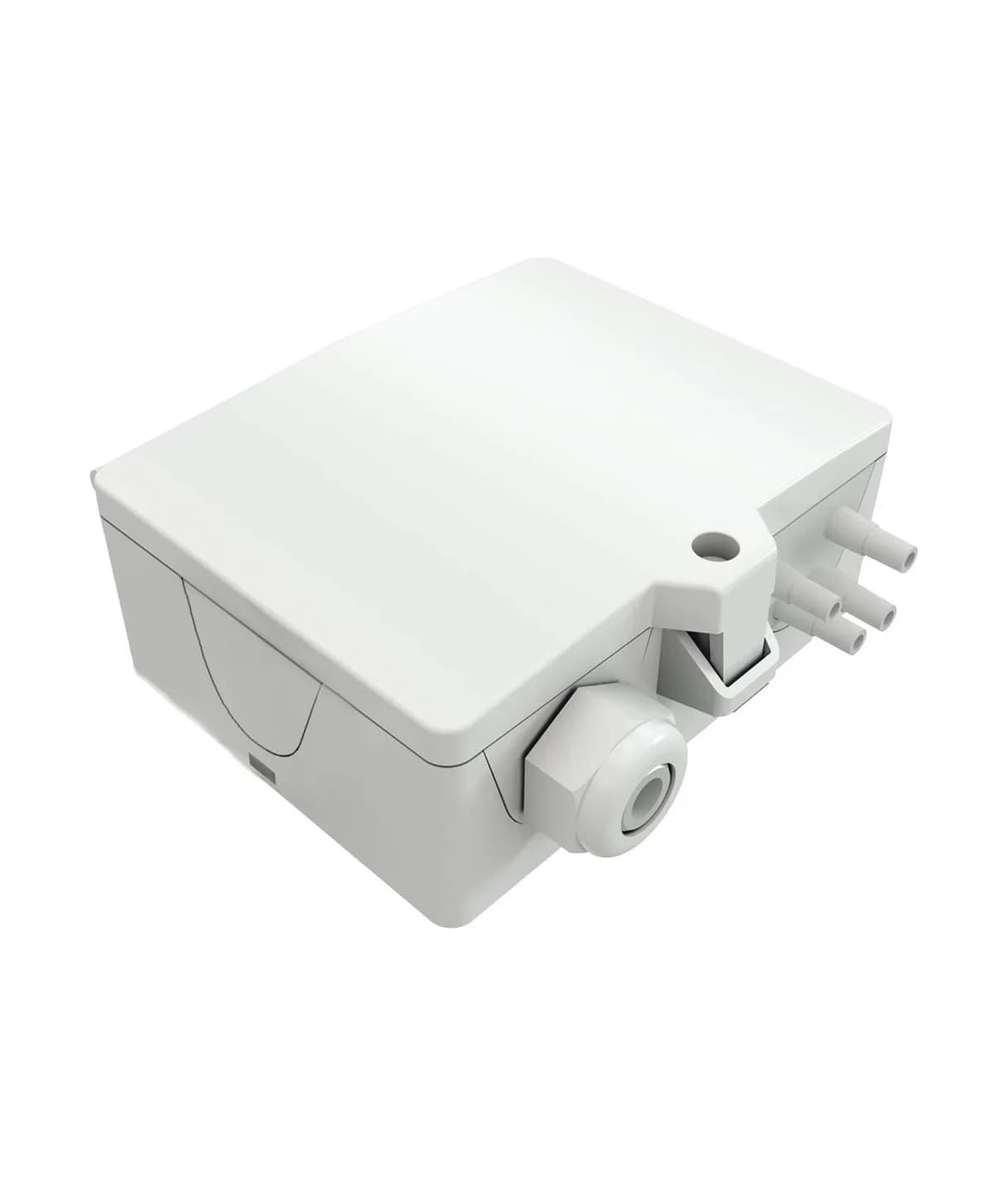

DPA+ LoRaWAN

Name: DPA+ LoRaWAN
Brand: Thermokon

Differential pressure and air flow transmitter with a LoRaWAN radio link, in 250, 2500 and 7000 Pa ranges and a dual sensor version.

Availability and lead time confirmed on your quote

Range: 0 to 2500 Pa

Version: Single sensor

Part number798105

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Protocol: LoRaWAN (868 MHz), bidirectional
Connection: Pressure connection 5.0 or 6.3 mm, removable M25 cable entry, plug-in terminal up to 2.5 mm2

Electrical

Power supply: 15 to 35 V DC or 19 to 29 V AC, SELV
Power consumption: Max. 2.5 W at 24 V DC, 4.3 VA at 24 V AC

Environment

Operating temperature: -10 to +50 °C, humidity up to 85% rH with short term condensation
Protection: IP65 IP rating

Performance

Output signal: 2 x 0 to 10 V or 0 to 5 V, minimum load 10 kΩ
Measuring range: Differential pressure in eight selectable ranges up to 250, 2500 or 7000 Pa, by model; default 0 to 250, 0 to 2500 or 0 to 7000 Pa
Accuracy: ±1 Pa for ranges below 250 Pa, up to ±25 Pa for ranges above 2000 Pa
Sensor element: MEMS membrane
Nominal pressure: Air or other non-flammable, non-aggressive gases, max. 40 kPa

Physical

Housing material: PC, USE-L enclosure
Colour: Pure white
Mounting: Flat surface with screws, or TS35 DIN rail

Part numbers

From the manufacturer's datasheet for DPA+ LoRaWAN.

Overview

The DPA+ measures overpressure, underpressure, differential pressure and volume flow of air and other non-aggressive gases in fan and filter systems and ducts. Each version has eight selectable pressure ranges, and flow can be shown in m3/h or cfm and pressure in Pa or inch water column. It reports over LoRaWAN at 868 MHz and also has two 0 to 10 V or 0 to 5 V analogue outputs. The Dual version has two independent sensors in one enclosure for up to two differential pressures or two flow volumes. An optional external antenna helps in radio shielded locations. A mounting base is included for flat surface or TS35 DIN rail mounting, together with a pressure connection set and 2 m of PVC hose.
