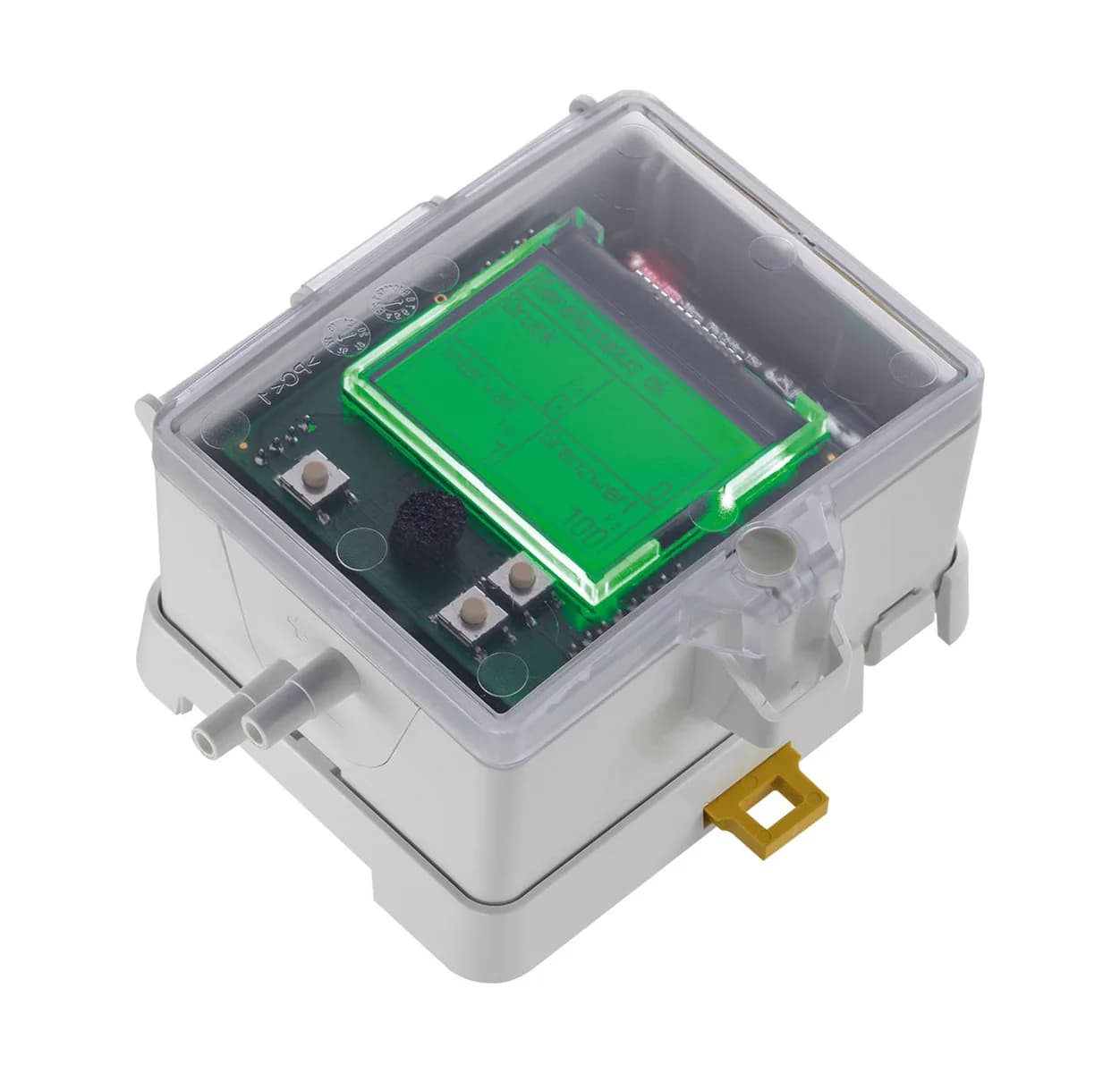

Thermokon · Pressure sensor

DPGe active

Name: DPGe active
Brand: Thermokon
SKU: 736176

Battery powered electronic differential pressure gauge with backlit display for air pressure in HVAC systems, measuring 0 to 2500 Pa.

Availability and lead time confirmed on your quote

Part number736176

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Connection: Soft PVC tube connection

Electrical

Power supply: AAA battery
Power consumption: Max. 60 mW in operation, max. 1 mW in standby

Environment

Operating temperature: -10 to +50 °C
Humidity: Max. 85% rH, short term condensation
Protection: IP65 to EN 60529 IP rating

Performance

Measuring range: 0 to 2500 Pa differential pressure
Accuracy: ±1.5% of measuring range
Nominal pressure: Max. 34 kPa operating pressure

Physical

Housing material: PC, UV resistant (USE-M enclosure)
Colour: Pure white with transparent cover
Dimensions: 85 x 65 x 45 mm

From the manufacturer's datasheet for 736176.

Overview

The DPGe is a compact electronic differential pressure manometer for displaying and monitoring differential air pressure in HVAC applications, for example across filters and fans. It runs from a single AAA battery, so it can be added to an existing installation without new power wiring. It comes in a USE-M enclosure with a quick-release cover, and with a mounting set, a pressure connection set, a 2 m PVC hose and the battery.
