Thermokon · Room sensor
FTB+ active

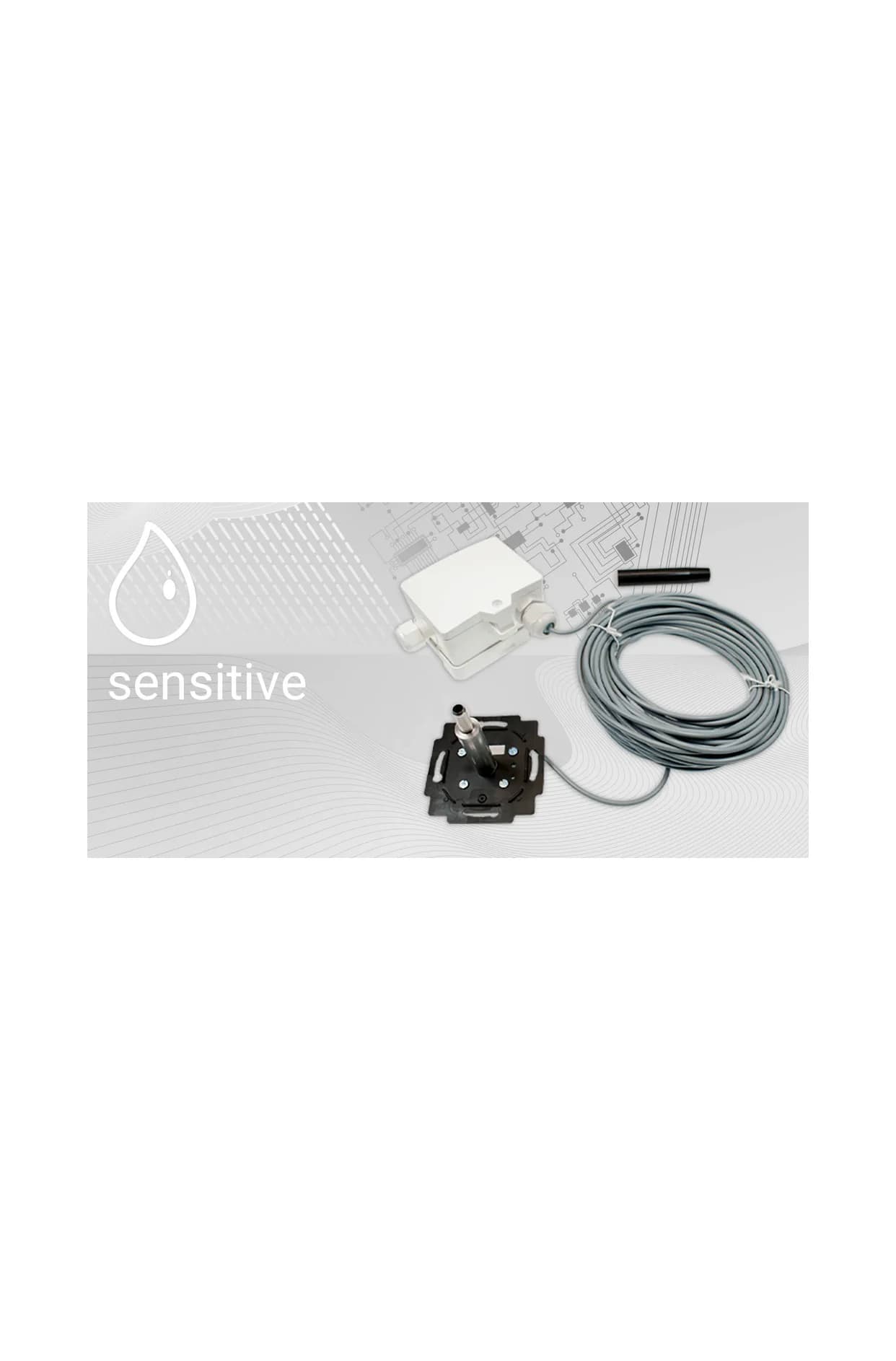

Stainless steel humidity and temperature sensor with 2 x 0 to 10 V output on a 15 m cable, for plastering into flush boxes or hollow walls.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number689205
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Interface
- Active analogue
- Connection
- Plug-in terminal, max. 2.5 mm², M20 or M25 cable entry
Electrical
- Power supply
- 15 to 35 V DC or 19 to 29 V AC (SELV)
- Power consumption
- Max. 2.5 W (24 V DC), 4.3 VA (24 V AC)
Environment
- Operating temperature
- -40 to +120 °C
- Humidity
- Max. 85% rH, short term condensation
- Protection
- IP65 housing IP rating
Performance
- Output signal
- 2 x 0 to 10 V or 0 to 5 V, min. load 10 kΩ
- Measuring range
- Humidity 0 to 100% rH, non-condensing; output scaling -20 to +80 °C by default
- Accuracy
- ±0.3 K (typ. at 21 °C), ±2% rH between 10 and 90% rH
- Probe length
- 34 or 66 mm, stainless steel 1.4305
Physical
- Cable length
- 15 m, PVC
- Housing material
- PC, USE-M housing
- Colour
- Pure white, transparent cover
- Mounting
- Plastered in, or in a hollow wall
Part numbers
From the manufacturer's datasheet for FTB+ active.
Overview
The FTB+ active measures relative humidity and temperature in a stainless steel head that is almost invisible once fitted. It is plastered into flush boxes or installed in hollow walls, which suits museums and exhibitions where sensors must be discreet but accurate. It has two 0 to 10 V or 0 to 5 V outputs, set by jumper, and a 15 m cable to the USE-M housing. The sensor head comes in 34 mm and 66 mm lengths. Dew point, absolute humidity and enthalpy can also be output.
