Thermokon · Room controller · Modbus
JOY HC EnOcean

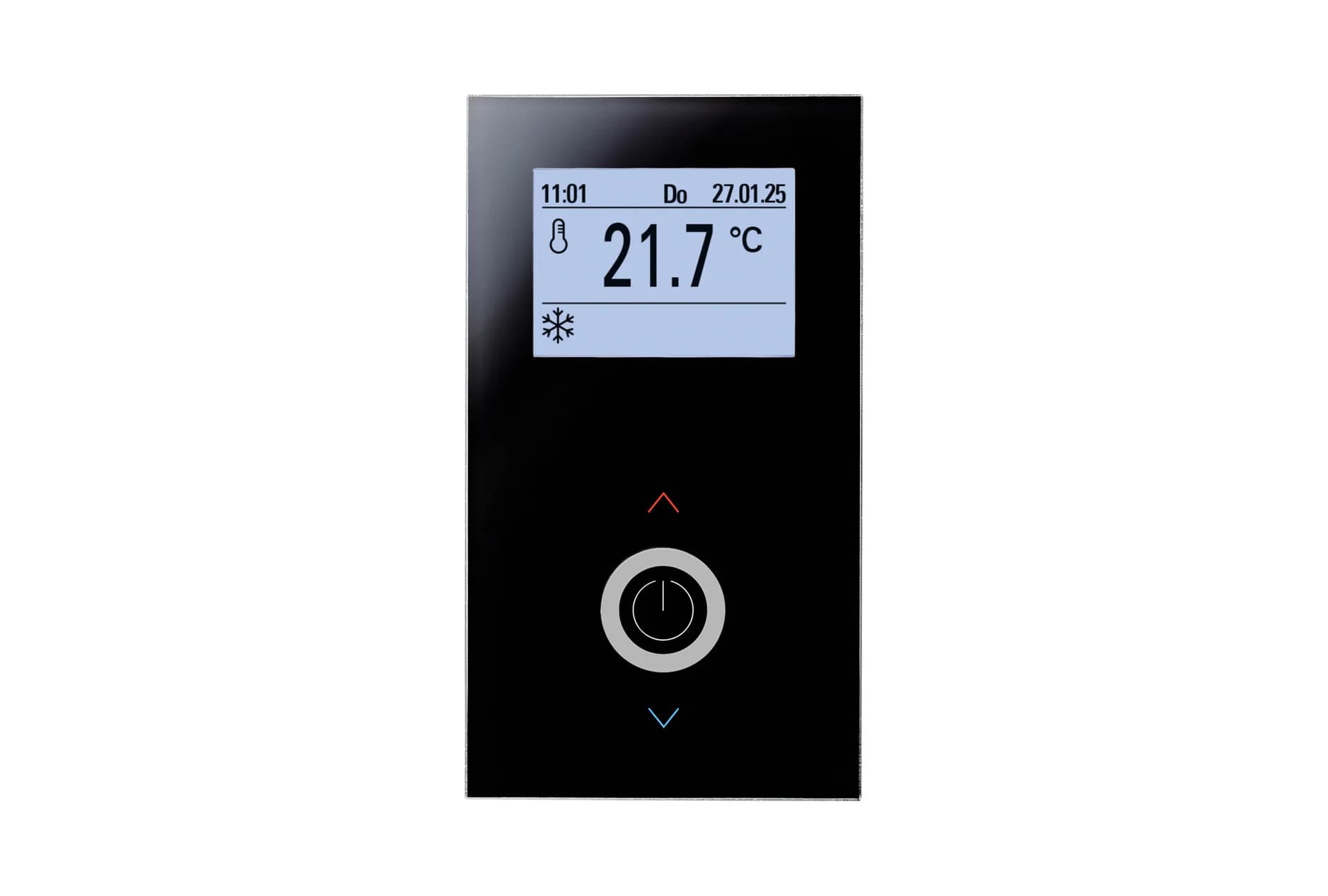

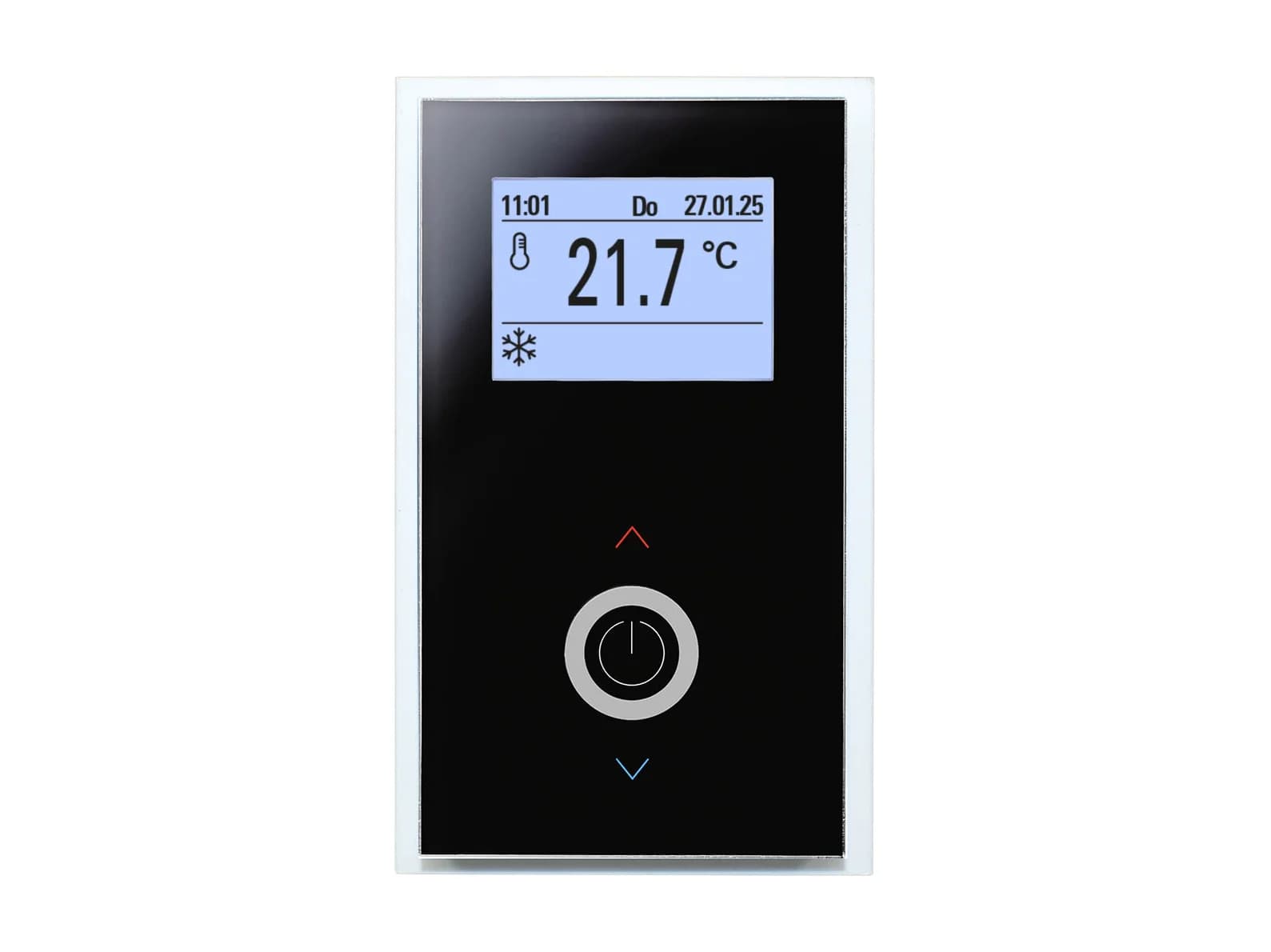

Glass-fronted touch room thermostat with EnOcean radio and Modbus RTU, for fan coil and heating and cooling control.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number700993
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- EnOcean 868 MHz and Modbus RTU (RS485)
- Connection
- Terminal block, max. 1.5 mm², inputs max. 1.0 mm²
Electrical
- Power supply
- 24 V DC, 24 V AC, or 85 to 260 V AC, by version
- Power consumption
- Typ. 2.5 W (24 V DC), max. 3 VA (260 V AC)
Environment
- Operating temperature
- 0 to +50 °C
- Humidity
- Max. 85% rH non-condensing
- Protection
- IP30 IP rating
Performance
- Outputs
- 1 or 3 x 0 to 10 V (max. 5 mA), or 2 x triac NO contact for heating and cooling, 500 mA at 240 V
- Inputs
- NTC10k or floating contact, floating contacts, and one 230 V AC potential input
- Accuracy
- Temperature ±1 K (typ. at 21 °C)
Physical
- Housing material
- PC with cover glass
- Colour
- White or black, by version
- Mounting
- In standard 60 mm EU box (min. depth 45 mm)
- Dimensions
- 140 x 78 x 35 mm
- Weight
- 195 g
Part numbers
From the manufacturer's datasheet for JOY HC EnOcean.
Overview
The JOY HC is a room thermostat with a glass surface, touch buttons and an LCD, intended for hotel rooms and offices. Its internal controller calculates control values for fans and for heating and cooling, output as analogue or digital signals depending on version. The EnOcean interface supports a second heating circuit and external sensors such as window contacts, change-over and condensation sensors, which can also be hard-wired. It also has an RS485 Modbus RTU connection. It fits a standard 60 mm EU box.
