Loytec
L-VIS
The L-VIS Touch Panel is an advanced graphical interface for BACnet, LonMark, and Modbus systems, featuring IoT integration, dual Ethernet, and customizable visualization for intuitive building automation control.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part numberl-vis 7
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- BACnet/IP, BACnet/SC, LonMark IP-852, Modbus TCP/RTU, OPC UA, OPC XML-DA, HTTP/HTTPS, FTP, SSH, VPN
Electrical
- Power supply
- PoE Class 4 or 24 V DC ±10%, 8–18 W depending on display size
Environment
- Operating temperature
- +10 °C to +40 °C (10–90% RH, non-condensing)
Performance
- Response time
- <1 s for UI interactions
Physical
- Housing material
- Frameless glass front, plastic rear housing (IP54 front / IP10 back)
- Dimensions
- Different Variations mm
- Weight
- Different Variations g
From the manufacturer's datasheet for L-VIS. Not stated by the maker: accuracy.
Overview
The L-VIS Touch Panel is a powerful graphical operator interface designed for BACnet, LonMark, and Modbus networks. Available in 7”, 12.1”, and 15” sizes, it provides real-time visualization, control, and monitoring through fully customizable graphical pages. The panels integrate Node.js for IoT connectivity, enabling cloud integration, MQTT telemetry, and web-based automation. Dual Ethernet ports support daisy-chain or RSTP network redundancy, while built-in BACnet router, BBMD, and OPC UA server functions simplify system integration. With its frameless glass design, vivid IPS display, and support for dynamic content, L-VIS offers an elegant, high-performance user interface for professional building management applications.

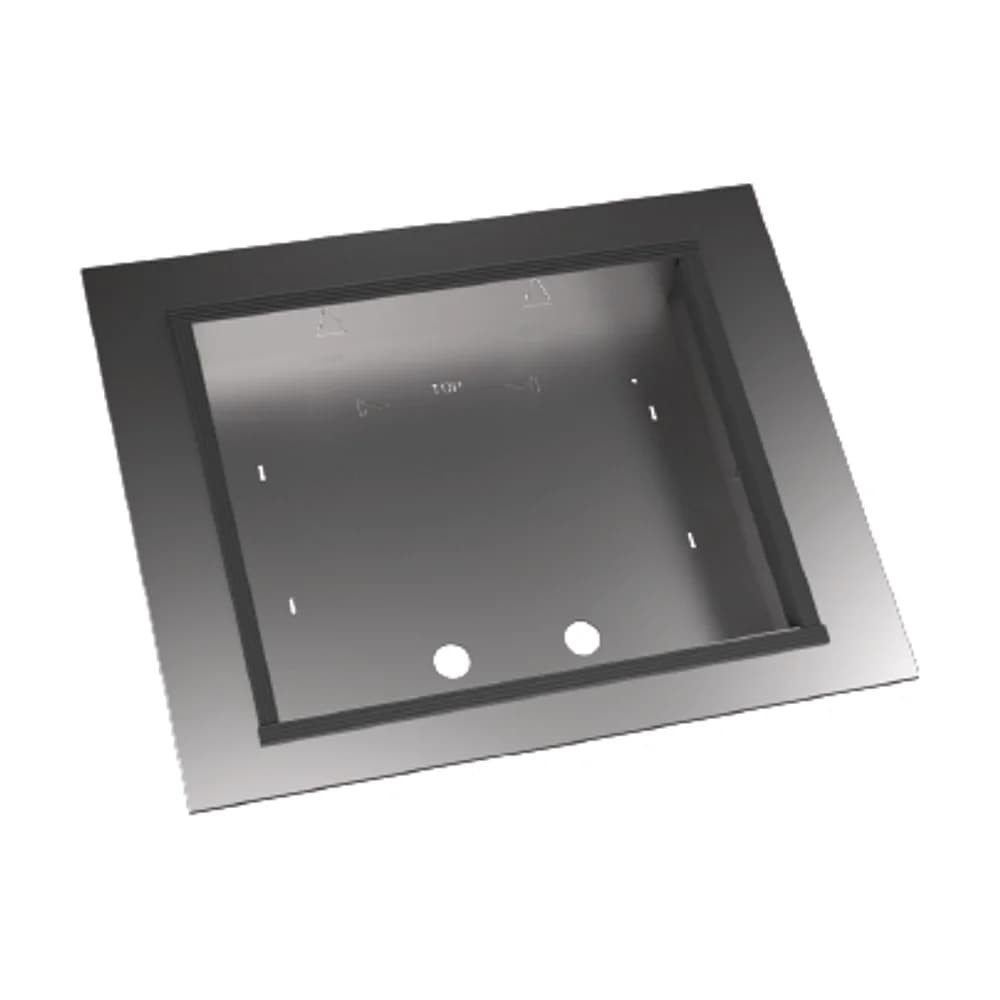

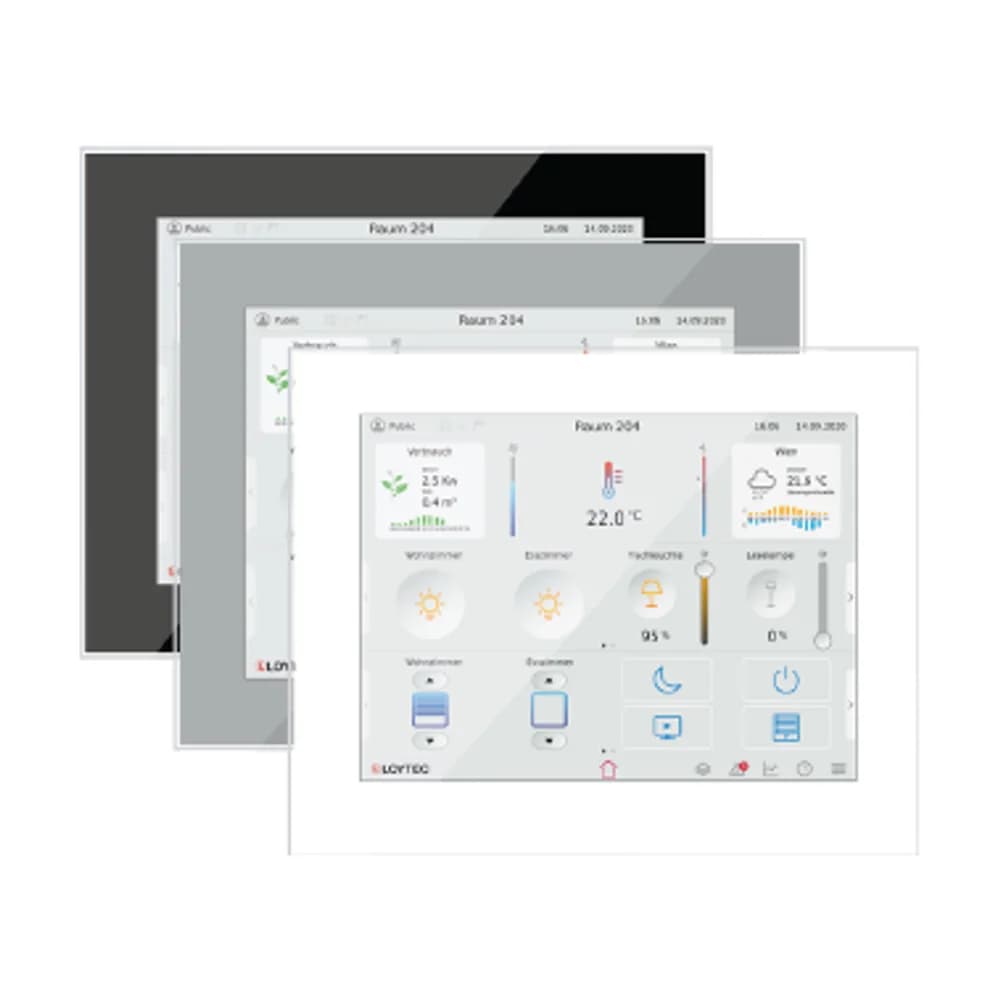

Built-in AST™: Alarming, Scheduling, and Trending functionality. Web-based configuration via L-PAD/L-VIS/L-WEB Configurator software (no coding required). Supports multimedia content (audio, web radio, webcams, and video streams). Compatible with L-STUDIO and L-WEB-900 visualization tools. Color options: silver, black, and white glass fronts. Accessories: LVIS-FRAME (flush mount), LVIS-ONWALL (surface mount), LVIS-STAND (demo stand), LWLAN-800 (WLAN interface), LTE-800 (LTE interface). BTL-certified BACnet Building Controller (B-BC). CE and RoHS compliant.
