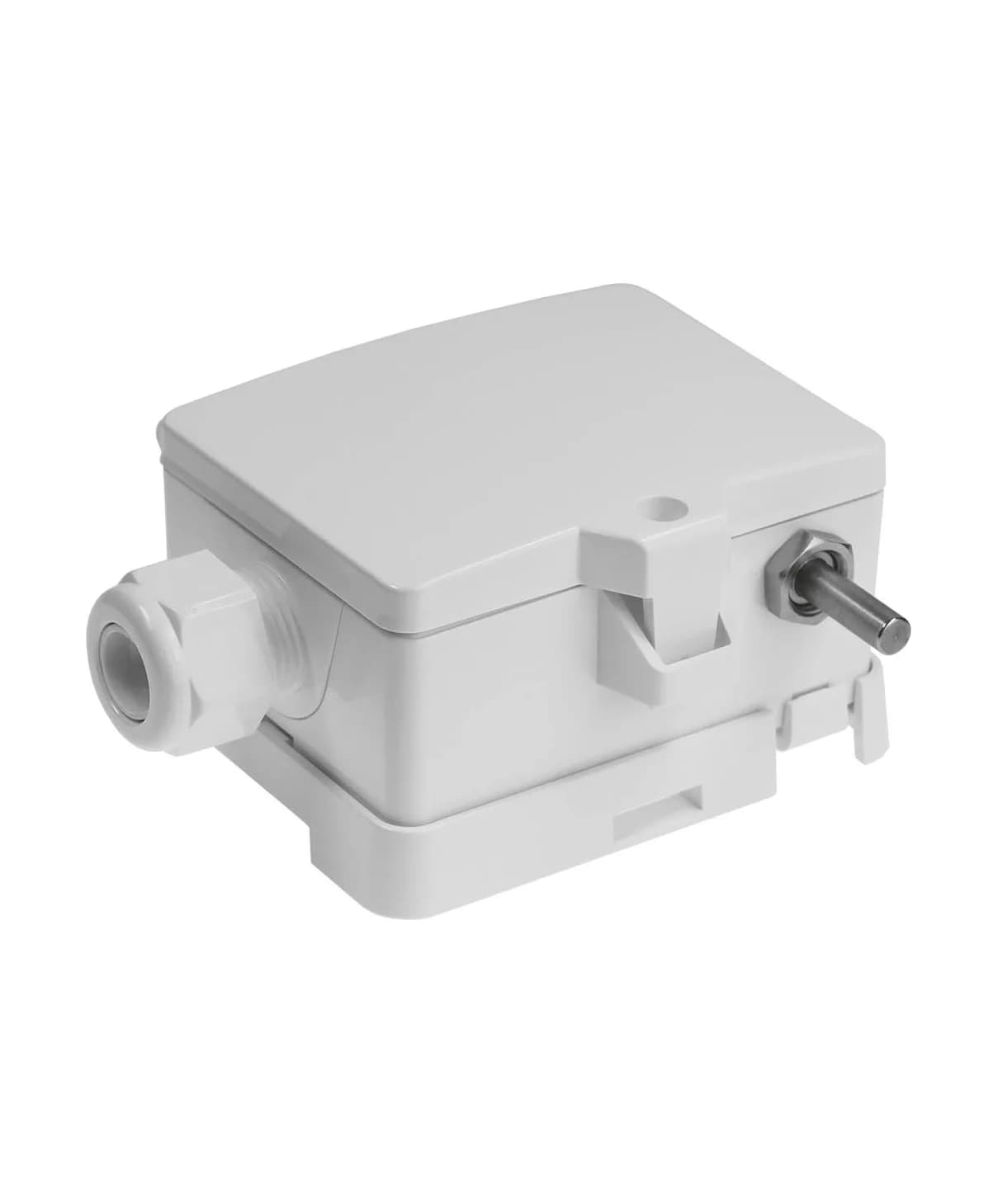

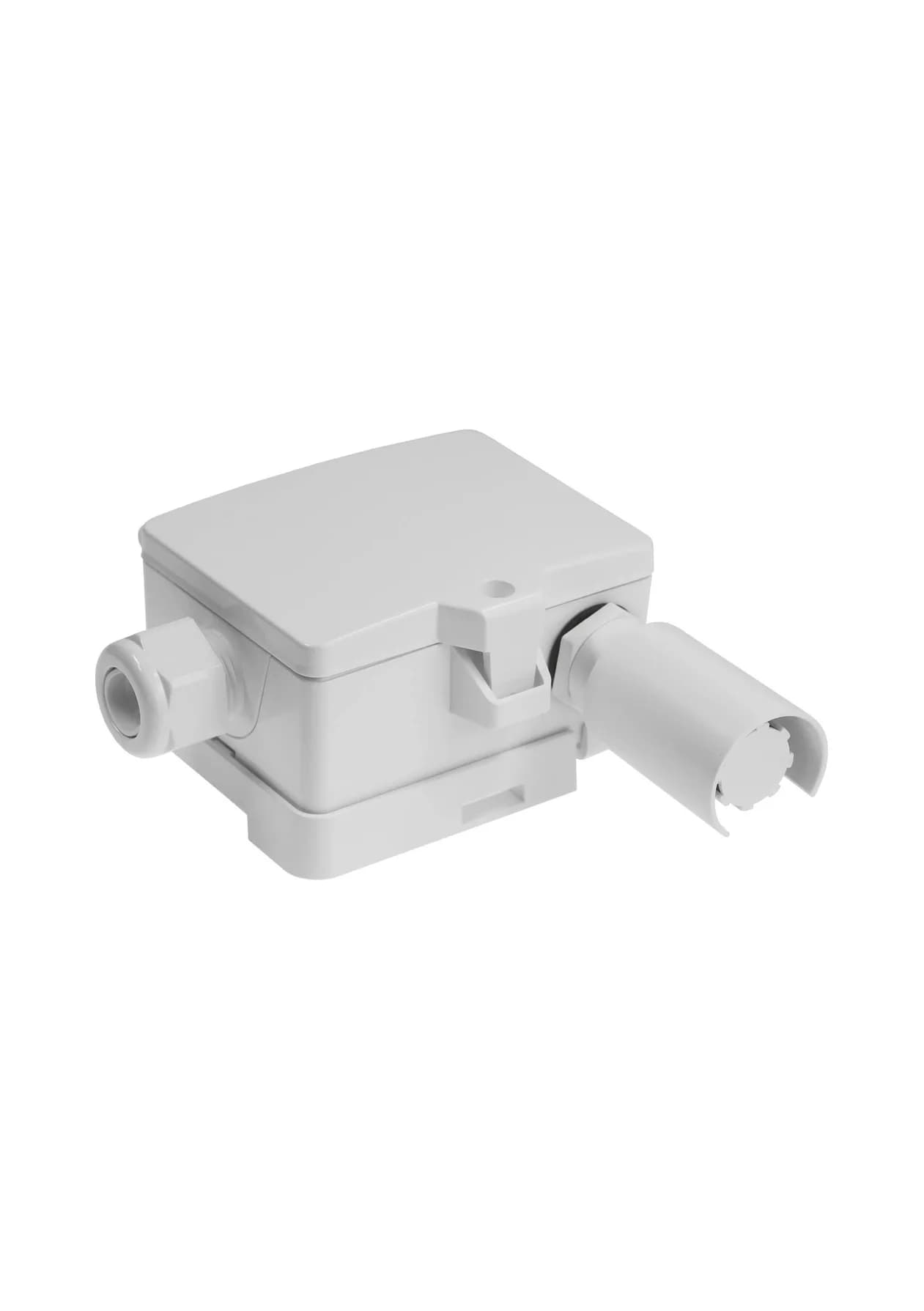

Thermokon · Air quality sensor · BACnet
LA+ RS485 BACnet
Outdoor and high IP air quality sensor for CO2 and VOC, optionally temperature and humidity, on BACnet MS/TP.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number700641
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- BACnet MS/TP
- Interface
- RS485, plus active 0 to 10 V or 0 to 5 V
Electrical
- Power supply
- 15 to 35 V DC SELV or 19 to 29 V AC SELV
- Power consumption
- Up to 2.5 W at 24 V DC
Environment
- Operating temperature
- 0 to +50 °C
- Protection
- IP65 IP rating
Performance
- Output signal
- 1 or 2 x 0 to 10 V or 0 to 5 V, minimum load 10 kOhm
- Measuring range
- CO2 0 to 2000 or 0 to 5000 ppm; humidity 0 to 100% rH
- Accuracy
- CO2 +/-50 ppm +3% of reading; humidity +/-2% between 10 and 90% rH; temperature +/-0.5 K
- Sensor element
- NDIR CO2 with dual channel self-calibration; heated metal oxide VOC
Physical
- Housing material
- USE-M enclosure, PC
- Colour
- Pure white, transparent cover
Part numbers
From the manufacturer's datasheet for LA+ RS485 BACnet.
Overview
The LA+ measures CO2 and mixed gas (VOC), and on some versions temperature and humidity. It is made for places that need a high IP rating, such as tunnels, underground stations, exhibition halls, cold stores and greenhouses. It connects on RS485 BACnet MS/TP and also has active 0 to 10 V or 0 to 5 V outputs. On CO2 plus VOC versions each output can be set to a chosen mix of the two. A sun and rain shield is supplied.
