Thermokon · Air quality sensor · Modbus

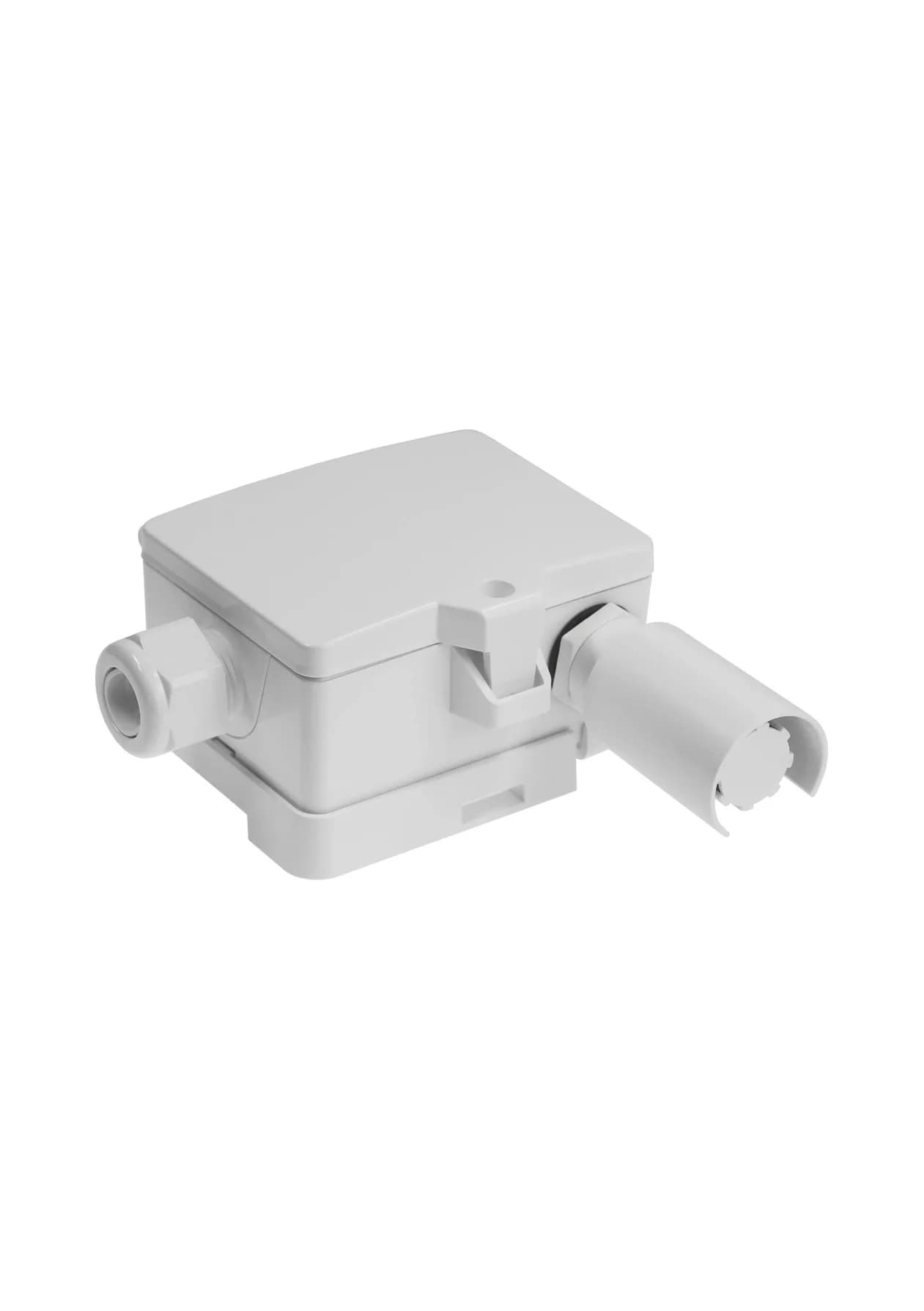

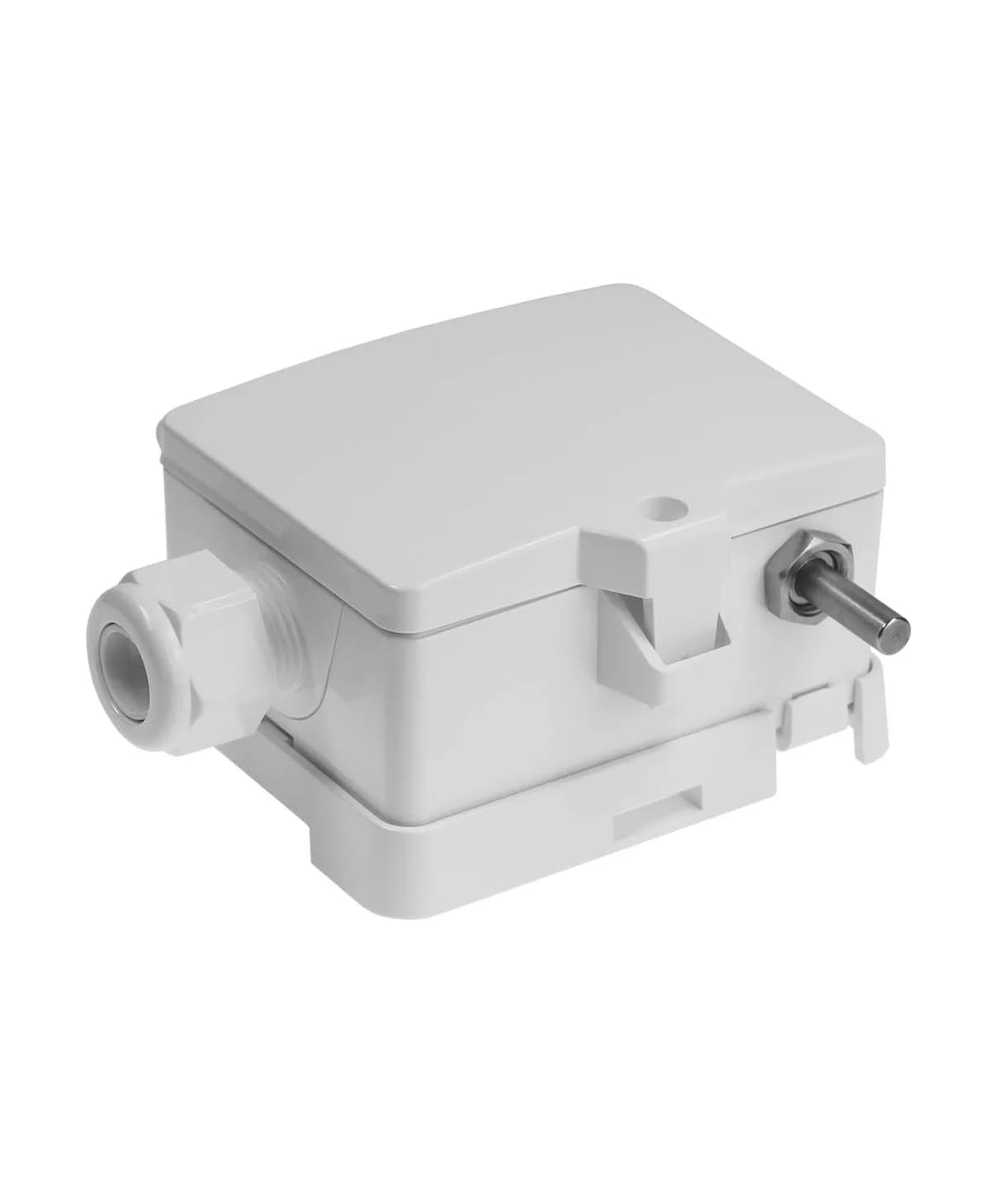

LA+ RS485 Modbus
Outdoor and high-protection air quality sensor for CO2, VOC, temperature and humidity with Modbus RTU and analogue outputs.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number700634
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Overview
The LA+ measures CO2 and mixed gas (VOC), with optional temperature and humidity, outdoors and where a high IP rating is needed, such as tunnels, underground stations, exhibition halls, cold chains, greenhouses and warehouses. A sun and rain shield is supplied. It outputs over RS485 Modbus RTU and as 0 to 10 V or 0 to 5 V analogue signals. On CO2 and VOC versions each output can be set to a mix of the two. Versions with a relay can act as 2-point or 2-stage controllers, and an LCD option is available.
Specification13 values · 4 part numbers
Communication
- Protocol
- Modbus RTU (RS485), half-duplex, 9600 to 57600 baud
- Connection
- Removable M25 cable entry, plug-in terminal max. 2.5 mm², BUS max. 1.5 mm²
Electrical
- Power supply
- 15 to 35 V DC SELV or 19 to 29 V AC SELV
- Power consumption
- Max. 2.5 W (24 V DC), 4.3 VA (24 V AC)
Environment
- Operating temperature
- 0 to +50 °C
- Humidity
- Max. 85% rH, short term condensation
- Protection
- IP65
Performance
- Output signal
- 1 or 2 x 0 to 10 V or 0 to 5 V (min. load 10 kΩ), live-zero configurable
- Measuring range
- CO2 0 to 2000 or 0 to 5000 ppm; humidity 0 to 100% rH; temperature 0 to +50 °C by default
- Accuracy
- CO2 ±50 ppm +3% of reading, humidity ±2%, temperature ±0.5 K (typ. at 21 °C)
- Sensor element
- NDIR CO2 with dual channel self-calibration; VOC by heated metal oxide semiconductor
Physical
- Housing material
- PC, USE-M enclosure
- Colour
- Pure white, transparent cover
From the manufacturer's datasheet for LA+ RS485 Modbus.
