Thermokon · Air quality sensor · LoRaWAN

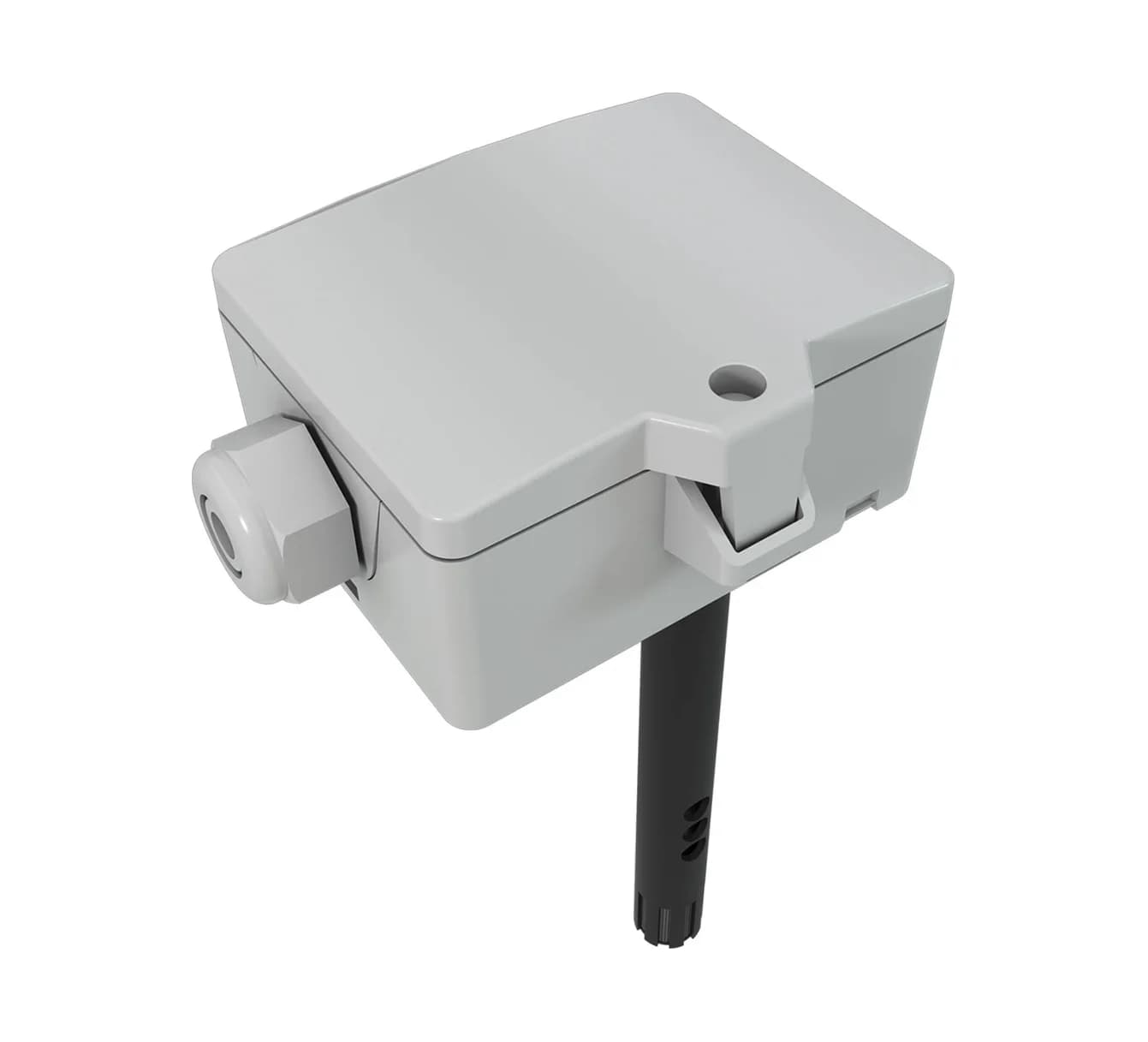

LK+ LoRaWAN
Duct air quality sensor with LoRaWAN radio and two analogue outputs, measuring CO2, VOC, temperature and humidity.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number797962
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Overview
The LK+ LoRaWAN measures air quality in a duct. Depending on the version it reports CO2, mixed gas (VOC), temperature and relative humidity. It sends its data by LoRaWAN on 868 MHz and also has two analogue outputs of 0 to 10 V or 0 to 5 V, where each output can carry a set mix of CO2 and VOC. It can run from 15 to 35 V DC, 19 to 29 V AC or two AA batteries. An external antenna can be added in radio-shielded locations. Setup is by app, uConfig, jumper or LoRaWAN downlink.
Specification13 values · 7 part numbers
Communication
- Protocol
- LoRaWAN, 868 MHz
- Connection
- Removable M20 cable entry for 4.5 to 9 mm cable, plug-in terminals up to 2.5 mm²
Electrical
- Power supply
- 15 to 35 V DC, 19 to 29 V AC or 2 x AA batteries
- Power consumption
- Maximum 2.5 W (DC), 4.3 VA (AC)
Environment
- Operating temperature
- 0 to +50 °C
- Protection
- IP65
Performance
- Output signal
- 2 x 0 to 10 V or 0 to 5 V, jumper selectable, minimum load 10 kΩ
- Measuring range
- CO2 0 to 2000 or 0 to 5000 ppm; humidity 0 to 100% rH, non-condensing
- Accuracy
- CO2 +/-50 ppm + 3% of reading; humidity +/-2% or +/-5%, by version; temperature +/-0.4 or +/-0.5 K at 21 °C
- Sensor element
- NDIR for CO2; heated metal oxide for VOC
- Probe length
- 70, 100, 150 or 180 mm, 19.5 mm diameter, with or without filter
Physical
- Housing material
- PC, USE-M enclosure
- Colour
- Pure white
Part numbers
From the manufacturer's datasheet for LK+ LoRaWAN.
