Kieback&Peter · Radiator valve actuator (EnOcean) · EnOcean
MD15-LP-FTL-HE

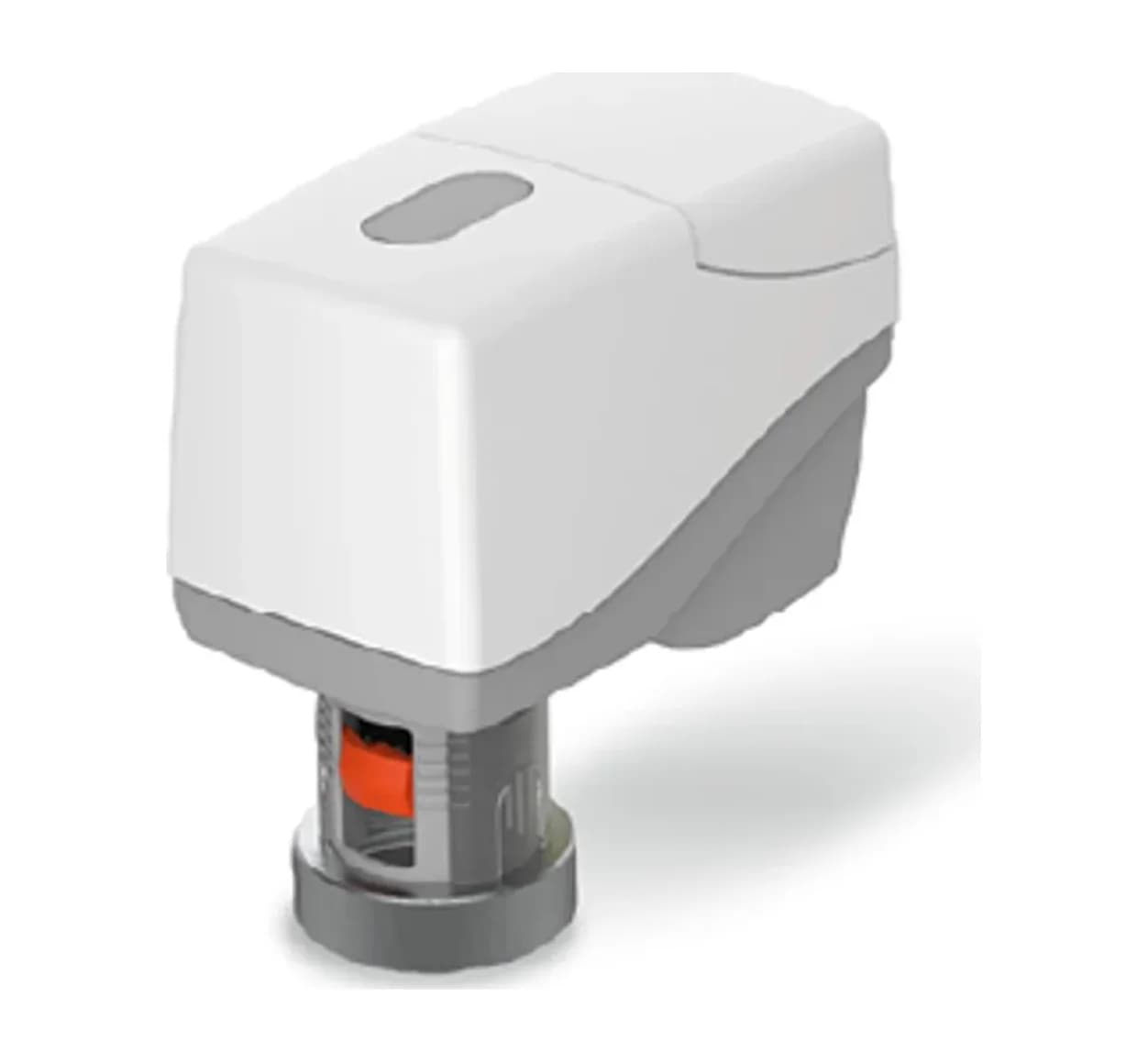

MD15-LP-FTL-HE is a 100 N, 12 to 24 V powered EnOcean radiator valve actuator with a built-in temperature sensor and M30 x 1.5 connection.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part numberMD15-LP-FTE-HE
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- EnOcean, bidirectional; EEP A5-20-01, A5-10-10, D5-00-01
- Interface
- EnOcean radio 868.3 MHz, range about 30 m in buildings, duty cycle under 1 %
- Connection
- M30 x 1.5; fixed 1.5 m cable, 2 x 0.5 mm²
Electrical
- Power supply
- 12 to 24 V AC or DC (-10 / +10%), 50/60 Hz
- Power consumption
- Rated 1.5 VA (AC), 0.7 W (DC); nominal 0.9 VA (AC), 0.4 W (DC)
Environment
- Operating temperature
- 0 to 50 °C; storage -20 to 60 °C
- Humidity
- 0 to 85 % r.h., non-condensing
- Protection
- IP54 IP rating
- Protection class
- III
Performance
- Measuring range
- 0 to 40 °C, ±0.5 °C at 25 °C
- Force
- 100 N nominal
- Stroke
- Up to 6 mm, automatic valve detection
- Running time
- 10 s/mm
Physical
- Colour
- Top RAL 9019 pure white, base RAL 7035 light grey
- Weight
- 225 g
From the manufacturer's datasheet for MD15-LP-FTE-HE.
Overview
The MD15-LP-FTL-HE is a small actuator that fits straight onto radiator valves with an M30 x 1.5 connection, including Heimeier, Honeywell-MNG, Junkers, Honeywell-Baukmann, Oventrop and Cazzaniga, plus other makes with adapters. It is powered from 12 to 24 V AC or DC through a fixed 1.5 m cable and is controlled by radio using the EnOcean standard. It supports the EnOcean profiles A5-20-01, A5-10-10 and D5-00-01. Working as an actuator it follows a 0 to 100 % telegram from a controller; it can also act as a local room controller with its own temperature sensor and a frost protection function once it has been taught in to a radio partner. Radio range is about 30 m in buildings on 868.3 MHz. Stroke is up to 6 mm with automatic valve detection, force 100 N and travel speed 10 s/mm. It is quiet, with a sound power of under 23 dB(A). In the DDC4000 system it is integrated through the FBG132 EnOcean gateway.
