Thermokon · Duct sensor
MWF400+ active
Duct averaging temperature sensor with a 400 mm element, selectable range, voltage or 4 to 20 mA output, optional relay and LCD.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number642088
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Electrical
- Power supply
- 15 to 24 V DC or 24 V AC for basic versions; 15 to 35 V DC or 19 to 29 V AC for LCD and relay versions
- Power consumption
- Basic max. 0.5 W (24 V DC); LCD and relay versions max. 2.5 W (24 V DC)
Environment
- Operating temperature
- -30 to +80 °C probe, -30 to +70 °C enclosure
- Humidity
- Max. 85% rH, short term condensation
- Protection
- IP65 to EN 60529 IP rating
Performance
- Output signal
- 0 to 10 V or 0 to 5 V (min. load 5 kΩ), or 4 to 20 mA (max. load 500 Ω), by part
- Measuring range
- Output default -20 to +80 °C, selectable
- Accuracy
- ±0.5 K (typ. at 21 °C)
- Probe length
- 400 mm
- Outputs
- 2 x floating NO contact, 24 V AC or DC, 3 A (relay versions)
Physical
- Housing material
- PC, USE-S or USE-M enclosure
- Colour
- Pure white
Part numbers
From the manufacturer's datasheet for MWF400+ active.
Overview

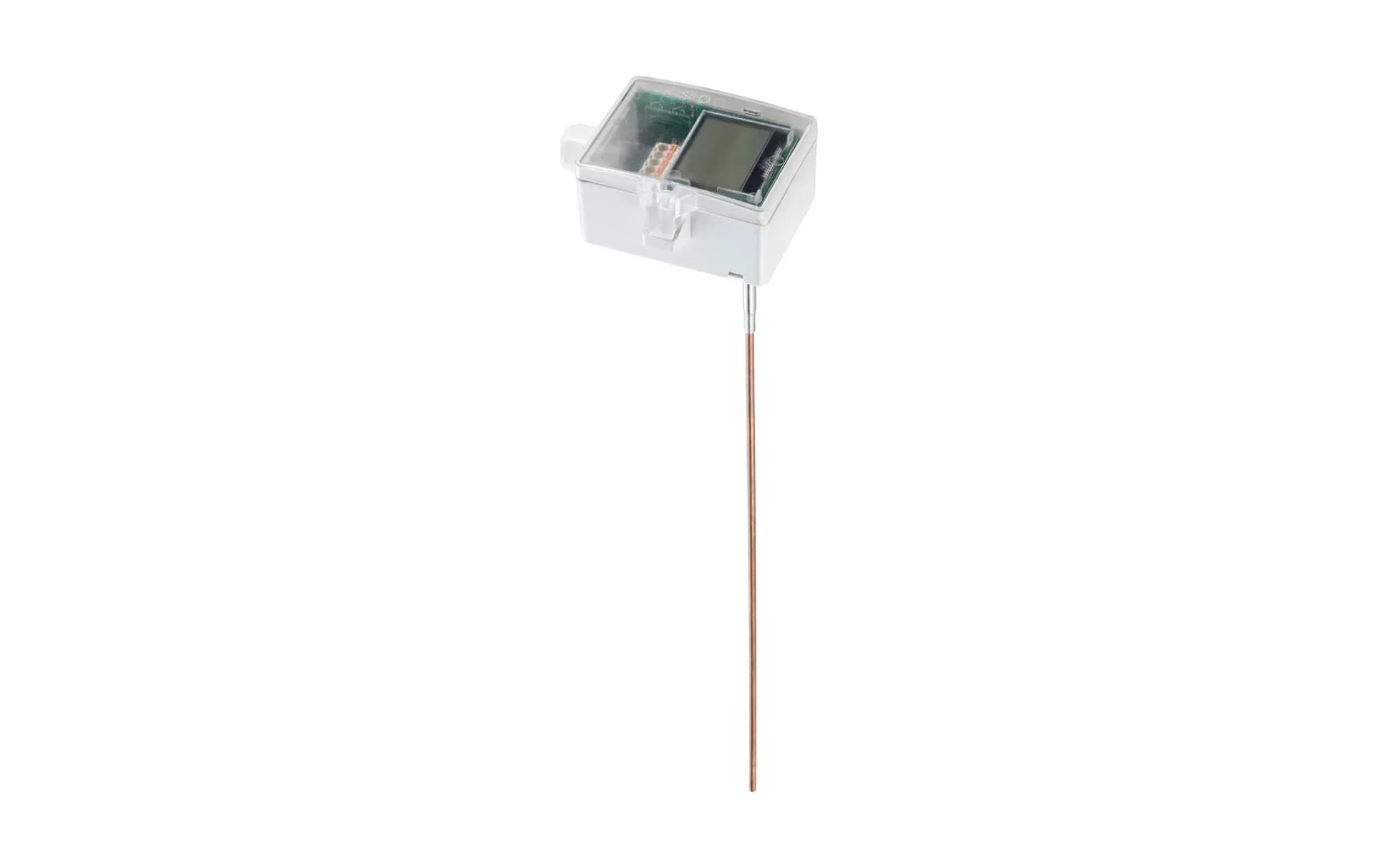

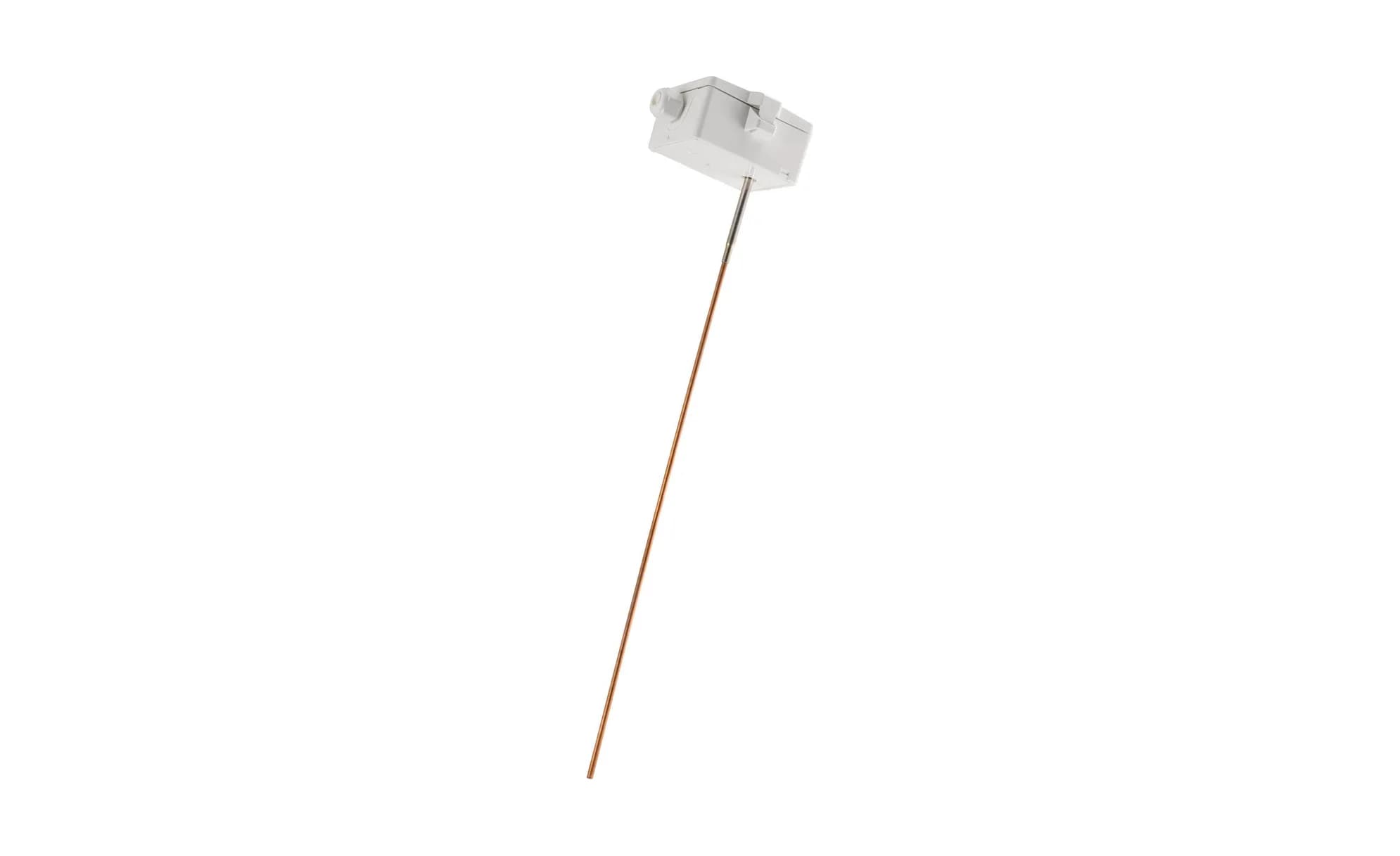

The MWF400+ measures the average air temperature along its 400 mm bendable copper element. A spring at the connection head reduces vibration and mounting angles are included. The output range is selectable from several presets. Versions are available with a 0 to 10 V or 0 to 5 V output, a 4 to 20 mA output, and a relay output that can act as a 2 point or 2 stage 2 point controller. LCD versions show the reading with a traffic light function, configured with the USEapp or uConfig.
