Thermokon · Duct sensor · BACnet
MWF400+ RS485 BACnet

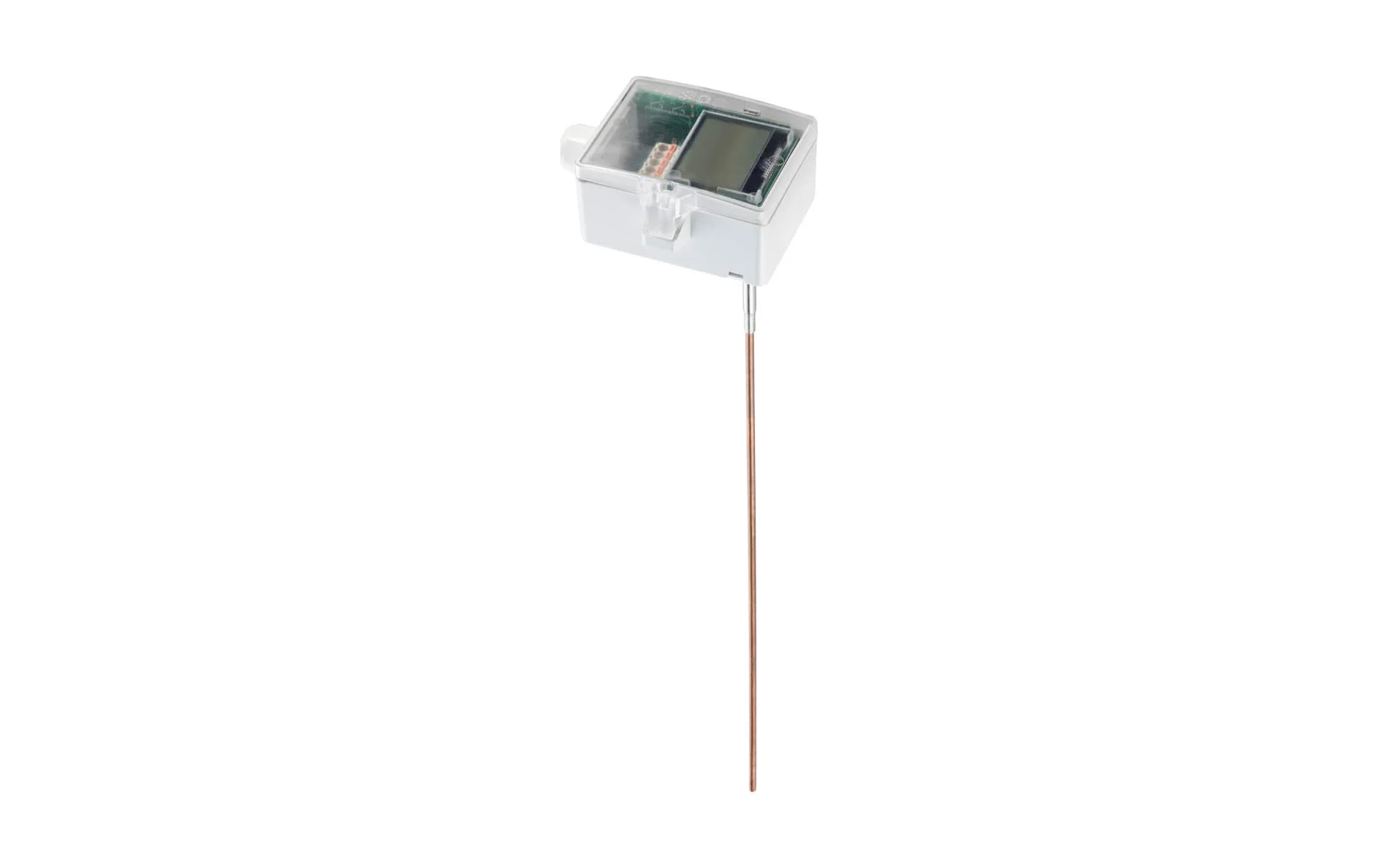

Averaging duct temperature sensor with a 400 mm bendable element and a BACnet MS/TP output.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number699365
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- BACnet MS/TP
- Interface
- RS485 BACnet MS/TP, also 0 to 10 V or 0 to 5 V analogue
- Connection
- Removable M25 cable entry with four cable entries, plug-in terminal up to 2.5 mm2, bus up to 1.5 mm2
Electrical
- Power supply
- 15 to 35 V DC or 19 to 29 V AC, SELV
- Power consumption
- Max. 2.5 W at 24 V DC, 4.3 VA at 24 V AC
Environment
- Operating temperature
- -30 to +80 °C at the element, enclosure -30 to +70 °C (-20 to +70 °C with display), humidity up to 85% rH with short term condensation
- Protection
- IP65 IP rating
Performance
- Measuring range
- -20 to +80 °C by default, selectable from -50 to +50, -20 to +80, -15 to +35, -10 to +120, 0 to +50, 0 to +100, 0 to +160 or 0 to +250 °C
- Accuracy
- ±0.5 K typical at 21 °C within the default range
- Probe length
- 400 mm bendable copper rod, 4 mm diameter, stainless steel V4A neck 6 mm
Physical
- Housing material
- PC, USE-M enclosure with quick release cover
- Colour
- Pure white, transparent cover
- Mounting
- Mounting flange MF6DS flexible, included
Part numbers
From the manufacturer's datasheet for MWF400+ RS485 BACnet.
Overview
The MWF400+ measures the average air temperature across the length of its 400 mm bendable copper sensing rod, which makes it suitable for ducts where the temperature is not even. A spring at the connection head damps vibration, and mounting angles come in the box. The temperature is read over RS485 BACnet MS/TP. The family also has a 0 to 10 V or 0 to 5 V analogue output with a selectable range. The LCD version adds a colour changing display with a traffic light function and configurable thresholds. A hinged cover, tool-free terminals and removable cable entries speed up installation. Settings can be made with USEapp or uConfig.
