Thermokon · Duct sensor · Modbus
MWF400+ RS485 Modbus

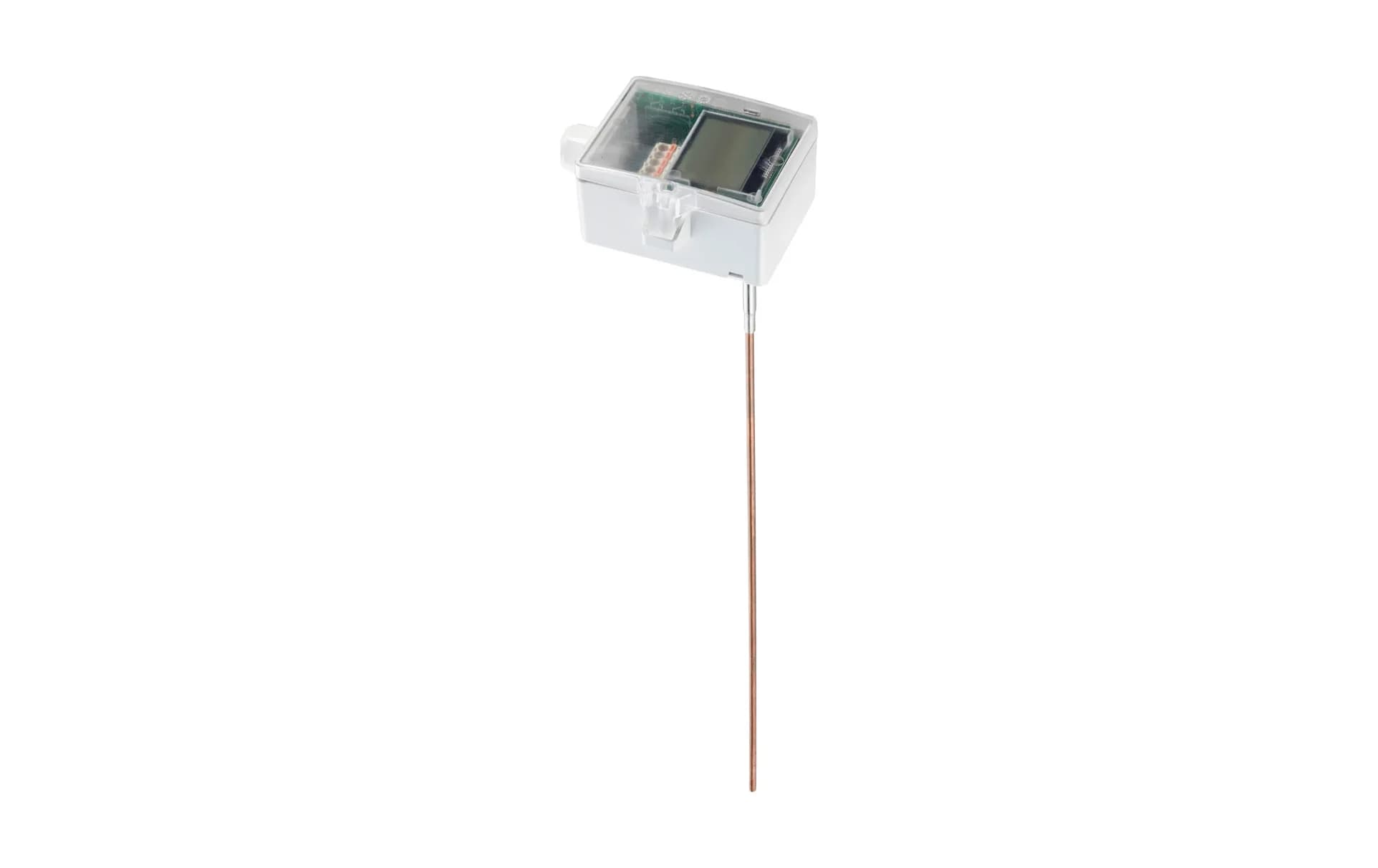

Averaging duct temperature sensor with a 400 mm bendable probe, Modbus RTU and 0 to 10 V output, with an optional LCD.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number662970
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- Modbus RTU
- Interface
- RS485, plus active 0 to 10 V or 0 to 5 V
Electrical
- Power supply
- 15 to 35 V DC SELV or 19 to 29 V AC SELV
- Power consumption
- Up to 2.5 W at 24 V DC
Environment
- Humidity
- Maximum 85% rH, short term condensation
- Protection
- IP65 IP rating
Performance
- Output signal
- 0 to 10 V or 0 to 5 V, minimum load 10 kOhm, scalable
- Measuring range
- -30 to +80 °C
- Accuracy
- +/-0.5 K at 21 °C within the default range
- Probe length
- 400 mm
Physical
- Housing material
- USE-M enclosure, PC
- Colour
- Pure white, transparent cover
Part numbers
From the manufacturer's datasheet for MWF400+ RS485 Modbus.
Overview
The MWF400+ averages the air temperature along a 400 mm bendable copper probe, which fits short ducts and coils. It has a Modbus RTU interface and also an active 0 to 10 V or 0 to 5 V output. The LCD version adds a colour changing display with a traffic light function. A flexible MF6DS mounting flange and fixing kit come with it.
