Thermokon · Duct sensor

MWF+ active

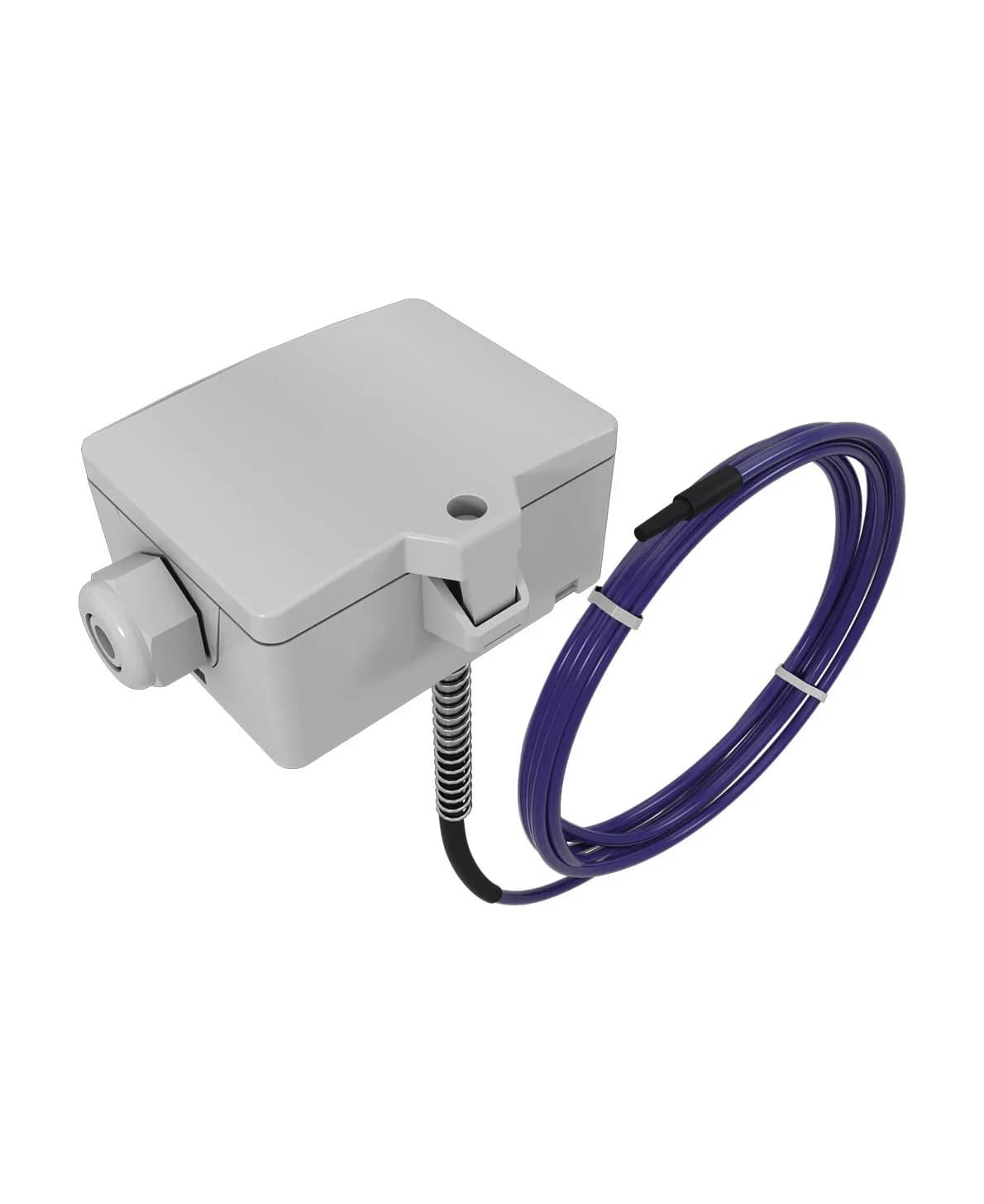

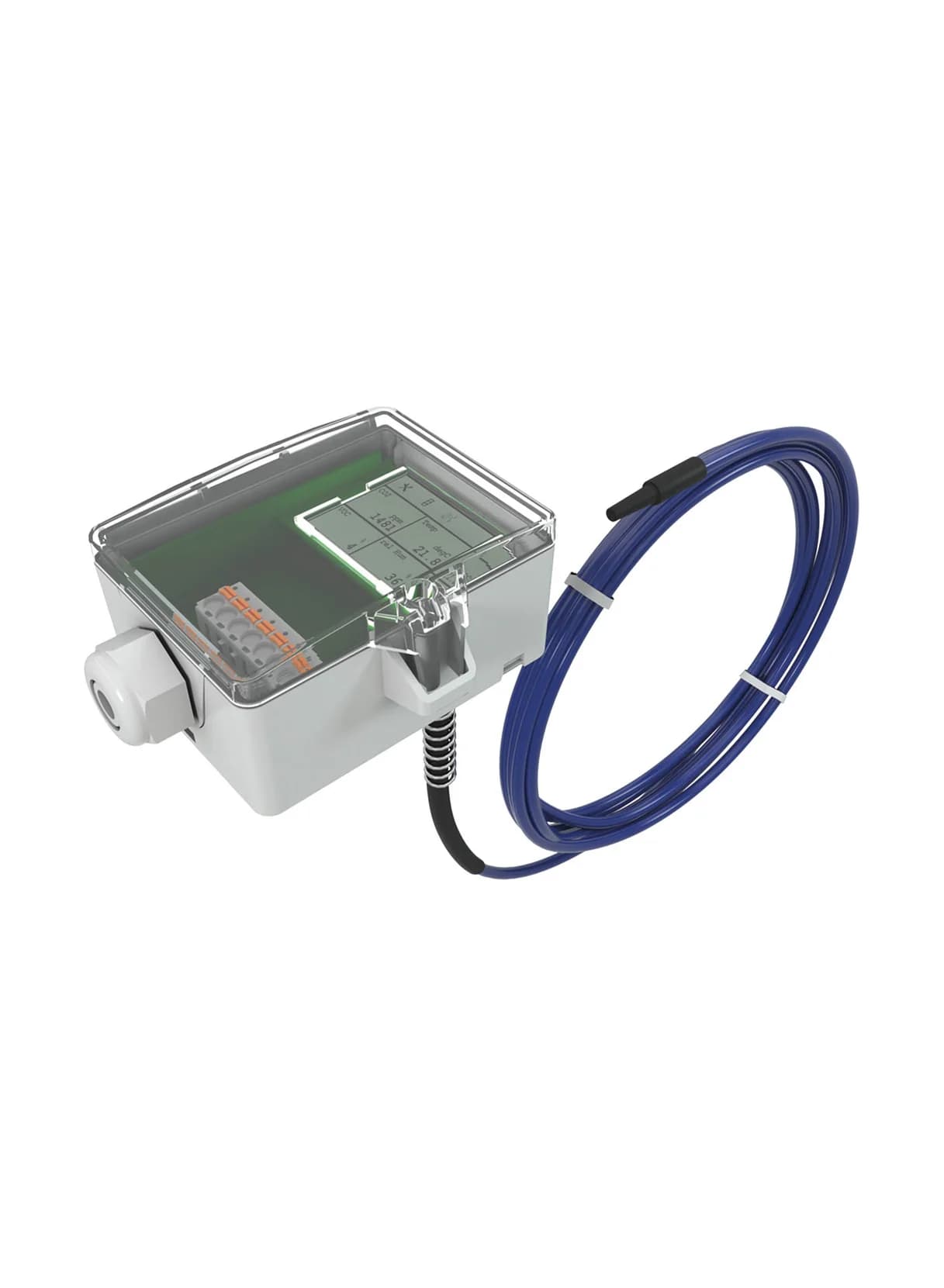

Name: MWF+ active
Brand: Thermokon

Average temperature duct sensor, 3 m or 6 m, with voltage or current output and optional relay outputs and LCD.

Availability and lead time confirmed on your quote

Length: 3 m

Output: 0 to 10 V

Display: None

Part number620475

Datasheet, PDF

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Datasheet

Communication

Connection: Removable cable entry (M20 Flextherm or M25), plug-in terminal max. 2.5 mm², relay max. 1.5 mm²

Electrical

Power supply: 15 to 24 V DC ±10% or 15 to 35 V DC SELV; 24 V AC ±10% or 19 to 29 V AC SELV
Power consumption: Typ. 0.4 or 0.5 W, max. 2.5 W (24 V DC); 0.8 to 4.3 VA (24 V AC)

Environment

Operating temperature: -30 to +70 °C (enclosure -20 to +70 °C on some versions)
Humidity: Max. 85% rH, short term condensation
Protection: IP65 IP rating

Performance

Output signal: 0 to 10 V or 0 to 5 V (min. load 5 or 10 kΩ), or 4 to 20 mA (max. load 500 Ω), by version
Outputs: 2 x floating NO contact, 24 V AC or DC, 3 A (relay versions)
Measuring range: -30 to +70 °C; analogue scaling -20 to +80 °C by default, selectable from eight ranges
Accuracy: ±0.5 K (typ. at 21 °C) within the default range
Probe length: 3000 mm or 6000 mm sensor rod

Physical

Housing material: PC, USE-S or USE-M enclosure
Colour: Pure white, transparent cover

Part numbers

From the manufacturer's datasheet for MWF+ active.

Overview

The MWF+ measures the average air temperature across a duct. The sensor rod measures the mean value over its whole length, which suits large ducts with uneven temperature. A spring at the connection head reduces vibration, and mounting angles are supplied. The rod is 3 m or 6 m long. Outputs are 0 to 10 V (or 0 to 5 V) or 4 to 20 mA, selectable from several temperature ranges. Relay versions add two floating contacts for a 2-point or 2-stage controller, and LCD versions add a colour-changing display.
