Thermokon · Duct sensor

MWF+ passive

Name: MWF+ passive
Brand: Thermokon

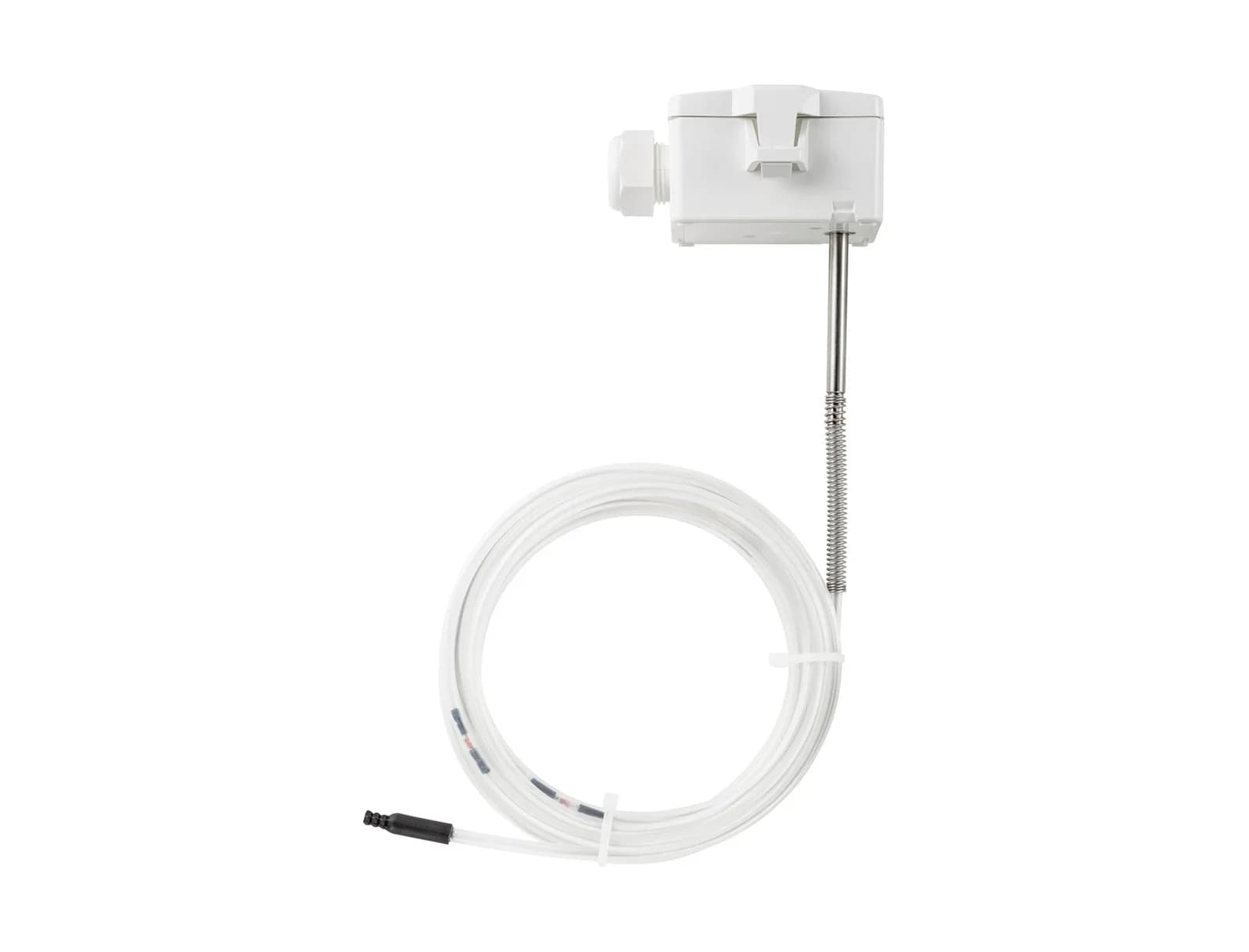

Averaging duct temperature sensor on a 3 m or 6 m flexible probe, with a passive sensor element.

Availability and lead time confirmed on your quote

Length: 3 m

Version: Pt1000

Part number620413

Datasheet, PDF

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Datasheet

Communication

Connection: Removable M20 cable entry, plug-in terminals up to 2.5 mm²

Environment

Operating temperature: -30 to +70 °C
Humidity: Maximum 85% rH, short term condensation
Protection: IP65 IP rating

Performance

Output signal: Passive, element as listed
Sensor element: Pt1000, Ni1000, Ni1000TK5000, NTC10k, NTC10k Precon or NTC20k
Measuring range: -30 to +70 °C
Accuracy: +/-0.5 K at 21 °C within the default range (element dependent)
Probe length: 3000 or 6000 mm

Physical

Housing material: USE-S enclosure, PC
Colour: Pure white, transparent cover

Part numbers

From the manufacturer's datasheet for MWF+ passive.

Overview

The MWF+ measures the average temperature along the whole length of its sensor rod, which suits large ducts where air is stratified. A spring at the connection head reduces vibration, and mounting flange and installation kit are included. The passive versions come in 3 m or 6 m lengths and in Pt1000, Ni1000, Ni1000TK5000, NTC10k, NTC10k Precon and NTC20k elements. Wiring is tool-free in an IP65 enclosure.
