Thermokon · Duct sensor · BACnet

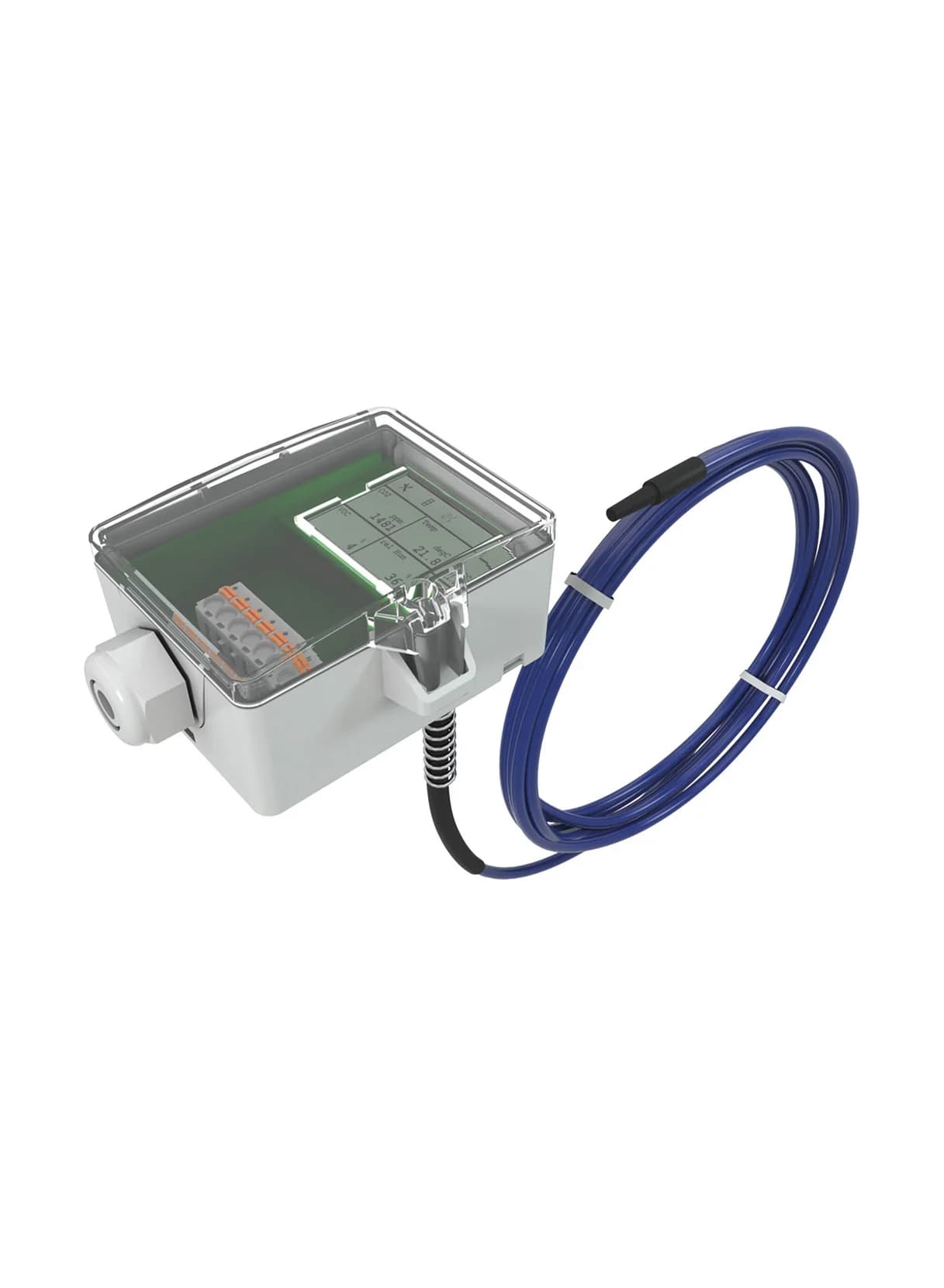

MWF+ RS485 BACnet
Averaging duct temperature sensor, 3 m or 6 m long, with BACnet MS/TP and a 0 to 10 V or 0 to 5 V analogue output, optional LCD.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number699310
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- BACnet MS/TP over RS485
- Connection
- Removable M25 cable entry for four cables up to 7 mm, plug-in terminals up to 2.5 mm²
Electrical
- Power supply
- 15 to 35 V DC or 19 to 29 V AC
- Power consumption
- Maximum 2.5 W (DC), 4.3 VA (AC)
Environment
- Humidity
- Maximum 85% rH, short term condensation
- Protection
- IP65 IP rating
Performance
- Output signal
- 0 to 10 V or 0 to 5 V, jumper selectable, minimum load 10 kΩ
- Measuring range
- -30 to +70 °C
- Accuracy
- +/-0.5 K at 21 °C, in the default range
- Probe length
- 3000 mm or 6000 mm
Physical
- Housing material
- PC, USE-M enclosure
- Colour
- Pure white, transparent cover
From the manufacturer's datasheet for MWF+ RS485 BACnet.
Overview
The MWF+ measures the average air temperature across a duct, using the whole length of the sensor rod. A spring at the connection head reduces vibration, and mounting angles are included. It connects over RS485 BACnet MS/TP and also has an analogue output of 0 to 10 V or 0 to 5 V. Versions with a colour LCD and traffic light function are listed. The USE-M enclosure has a hinged cover and removable cable entries.
