Thermokon · Duct sensor · Modbus

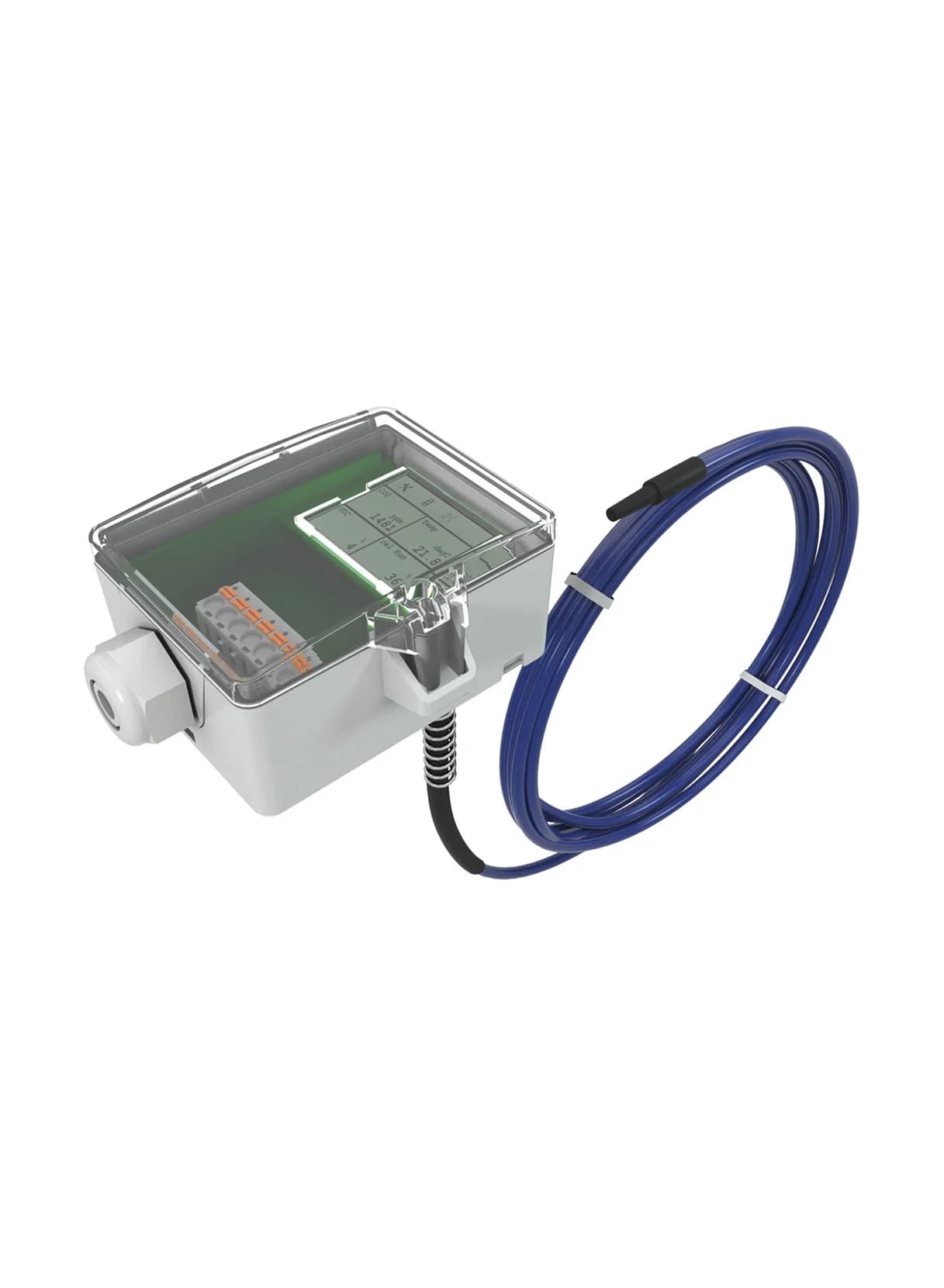

MWF+ RS485 Modbus
Duct averaging temperature sensor with a 3 m or 6 m flexible element, RS485 Modbus RTU and an analogue voltage output, with an optional LCD.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number662833
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- Modbus RTU over RS485, half duplex, 9600 to 57600 baud
- Connection
- M25 fourfold cable entry, plug-in terminal max. 2.5 mm²
Electrical
- Power supply
- 15 to 35 V DC or 19 to 29 V AC, SELV
- Power consumption
- Max. 2.5 W (24 V DC), 4.3 VA (24 V AC)
Environment
- Operating temperature
- -30 to +70 °C
- Humidity
- Max. 85% rH, short term condensation
- Protection
- IP65 to EN 60529 IP rating
Performance
- Output signal
- 0 to 10 V or 0 to 5 V, min. load 10 kΩ
- Measuring range
- Output scaling selectable from 8 ranges between -50 and +250 °C, default -20 to +80 °C
- Accuracy
- ±0.5 K (typ. at 21 °C)
- Probe length
- 3000 mm or 6000 mm, by part
Physical
- Housing material
- PC, USE-M enclosure
- Colour
- Pure white with transparent cover
Part numbers
From the manufacturer's datasheet for MWF+ RS485 Modbus.
Overview
The MWF+ measures the average air temperature across the whole length of its sensing element, which makes it suited to large ducts and coils where temperature stratifies. A spring at the connection head reduces vibration and mounting angles are included. It has an RS485 Modbus RTU interface and also an analogue output of 0 to 10 V or 0 to 5 V, set by jumper. LCD versions show the reading with a colour changing traffic light function, with thresholds set through the USEapp or uConfig. A hinged cover, tool-free wiring and removable cable entries speed up installation.
