Thermokon · Room sensor
NOVOS 3 active
Room sensor in the NOVOS 3 enclosure for temperature, humidity, CO2 and VOC, with voltage or current outputs.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number733670
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Connection
- Tool-free spring clamp up to 1.5 mm²
Electrical
- Power supply
- 15 to 35 V DC or 19 to 29 V AC
- Power consumption
- Typ. 0.4 W (24 V DC), 0.8 VA (24 V AC)
Environment
- Operating temperature
- 0 to +50 °C
- Humidity
- Max. 85% rH, non-condensing
- Protection
- IP20 IP rating
Performance
- Output signal
- 0 to 10 V or 0 to 5 V (min. load 10 kΩ), 4 to 20 mA (max. load 500 Ω), by version
- Measuring range
- CO2 0 to 2000 or 0 to 5000 ppm; humidity 0 to 100% rH; temperature 0 to +50 °C default
- Accuracy
- CO2 +/-50 ppm +3% of reading; humidity +/-2% rH (10 to 90% rH); temperature +/-0.5 K (typ. at 21 °C)
- Sensor element
- CO2 NDIR with dual channel self-calibration; VOC heated metal oxide
Physical
- Housing material
- PC V0
- Colour

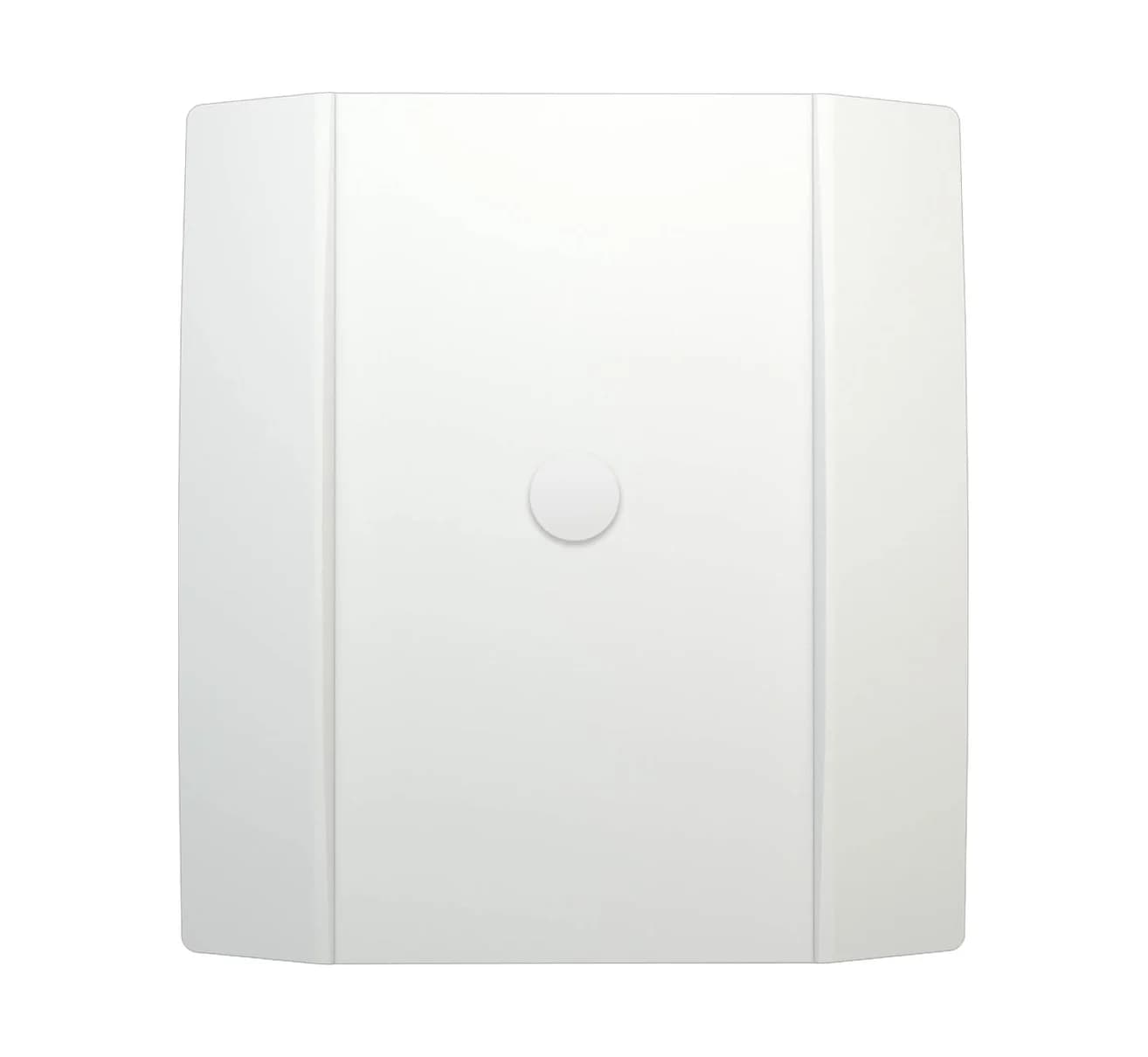

- Pure white (black also in the family)
- Mounting
- Flush on EU box 60 mm, or flat on wall with adhesive foil or screws
- Dimensions
- 110 x 100 x 23 mm
Part numbers
- 731614Temperature, 1 voltage output
- 731621Temperature, 1 current output
- 731904Temperature, humidity, 2 voltage outputs
- 731911Temperature, humidity, 2 current outputs
- 735353CO2, VOC, 2 voltage outputs
- 735421CO2, VOC, 2 current outputs
- 735360CO2, VOC, temperature, 3 voltage outputs
- 735377CO2, VOC, temperature, humidity, 4 voltage outputs
- 733663CO2, 1 voltage output
- 733724CO2, 1 current output
- 733670CO2, temperature, 2 voltage outputs
- 733731CO2, temperature, 2 current outputs
- 733687CO2, temperature, humidity, 3 voltage outputs
- 734653VOC, 1 voltage output
- 734738VOC, 1 current output
- 734660VOC, temperature, 2 voltage outputs
- 734745VOC, temperature, 2 current outputs
- 734677VOC, temperature, humidity, 3 voltage outputs
From the manufacturer's datasheet for NOVOS 3 active.
Overview
The NOVOS 3 is a maintenance-free room sensor that measures temperature, humidity, CO2 and mixed gas (VOC), depending on version. Humidity can be output as relative humidity, absolute humidity, enthalpy or dew point, and the mixed gas sensor picks up body odour, smoke and off-gassing from furniture and paint. It is used for comfort and demand controlled ventilation in offices and schools. Outputs are 0 to 10 V or 0 to 5 V, or 4 to 20 mA, from one to four depending on the model, and each can mix CO2 and VOC. An RGB LED gives a traffic light indication. It mounts flush on an EU box or flat on the wall and is configured with the NOVOSapp or uConfig. A design cover in a chosen colour is added to the order.
