Thermokon · Room sensor · EnOcean

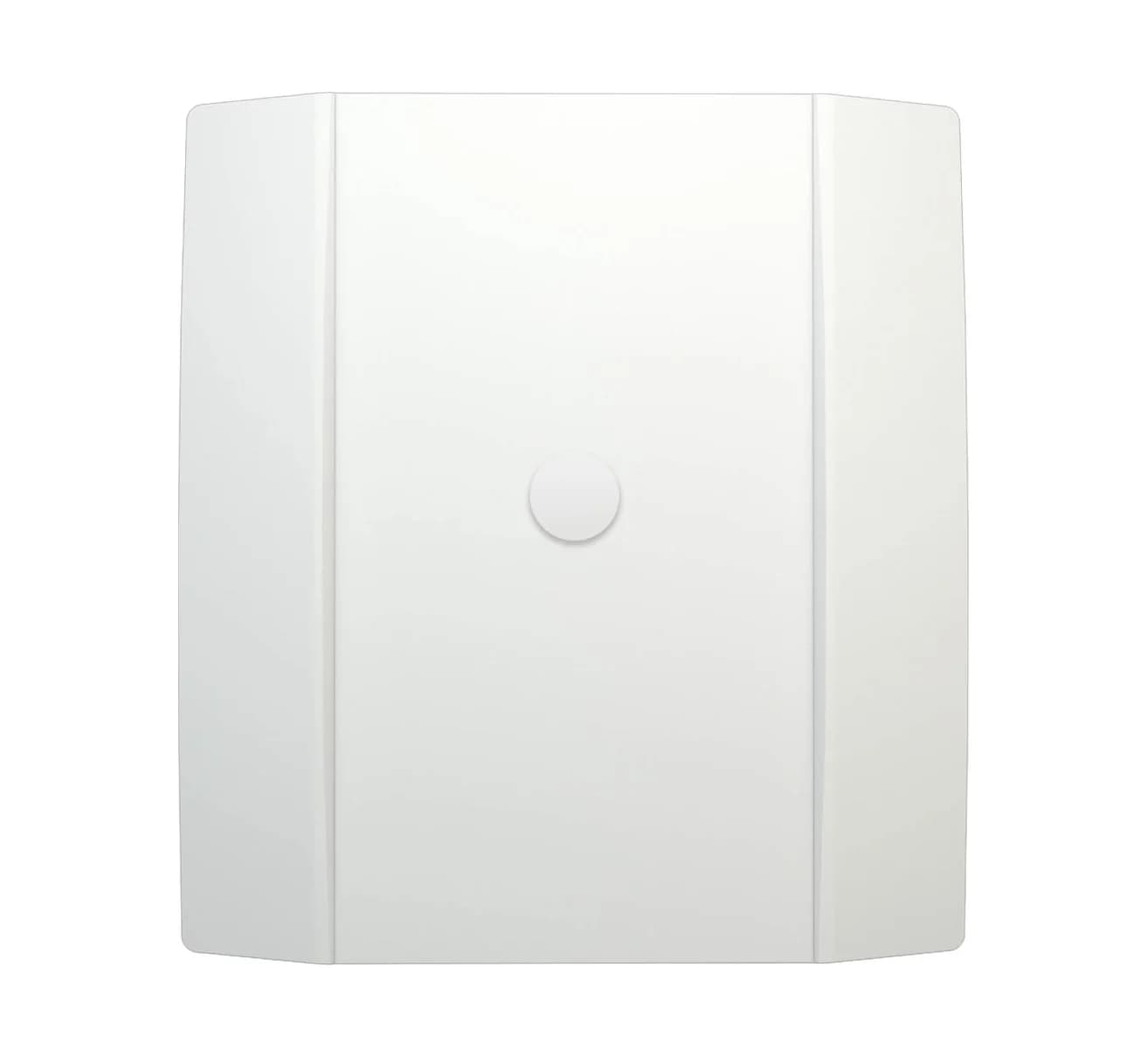

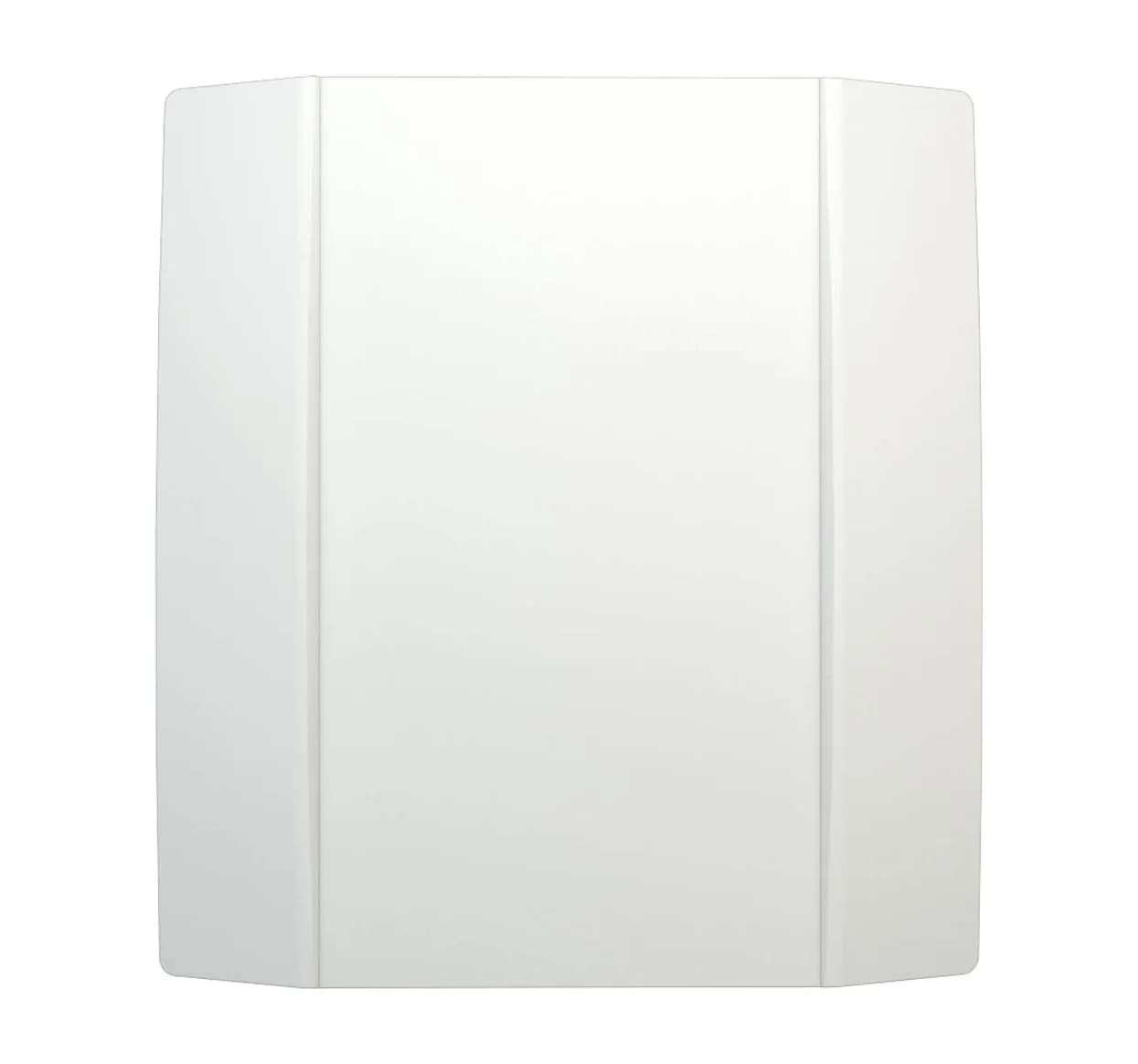

NOVOS 3 EnOcean
Solar powered EnOcean room sensor in the NOVOS design, measuring temperature, humidity or CO2.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number754057
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Overview
The NOVOS 3 is an energy harvesting wireless room sensor for residential and commercial buildings. It fixes straight to the wall with the adhesive pad or screws included, or flush on a 60 mm box, and sends its readings to EasySens receiving actuators and gateways, which pass them to a BMS controller. A solar cell charges an internal supercap, with an ER14505 backup battery as an option. Versions measure temperature alone, temperature and humidity, or add CO2.
Specification10 values · 4 part numbers
Communication
- Protocol
- EnOcean 868 MHz, EEP A5-02-05 and A5-04-01
Electrical
- Power supply
- Solar cell with supercap, optional ER14505 3.6 V battery
Environment
- Operating temperature
- 0 to +50 °C
- Humidity
- Max. 85% rH, non-condensing
- Protection
- IP20 to EN 60529
Performance
- Measuring range
- Temperature output 0 to +40 °C; humidity 0 to 100% rH; CO2 0 to 2000 or 0 to 5000 ppm
- Accuracy
- Temperature ±0.4 K (typ. at 21 °C), CO2 ±50 ppm +3% of reading
Physical
- Housing material
- PC V0
- Colour

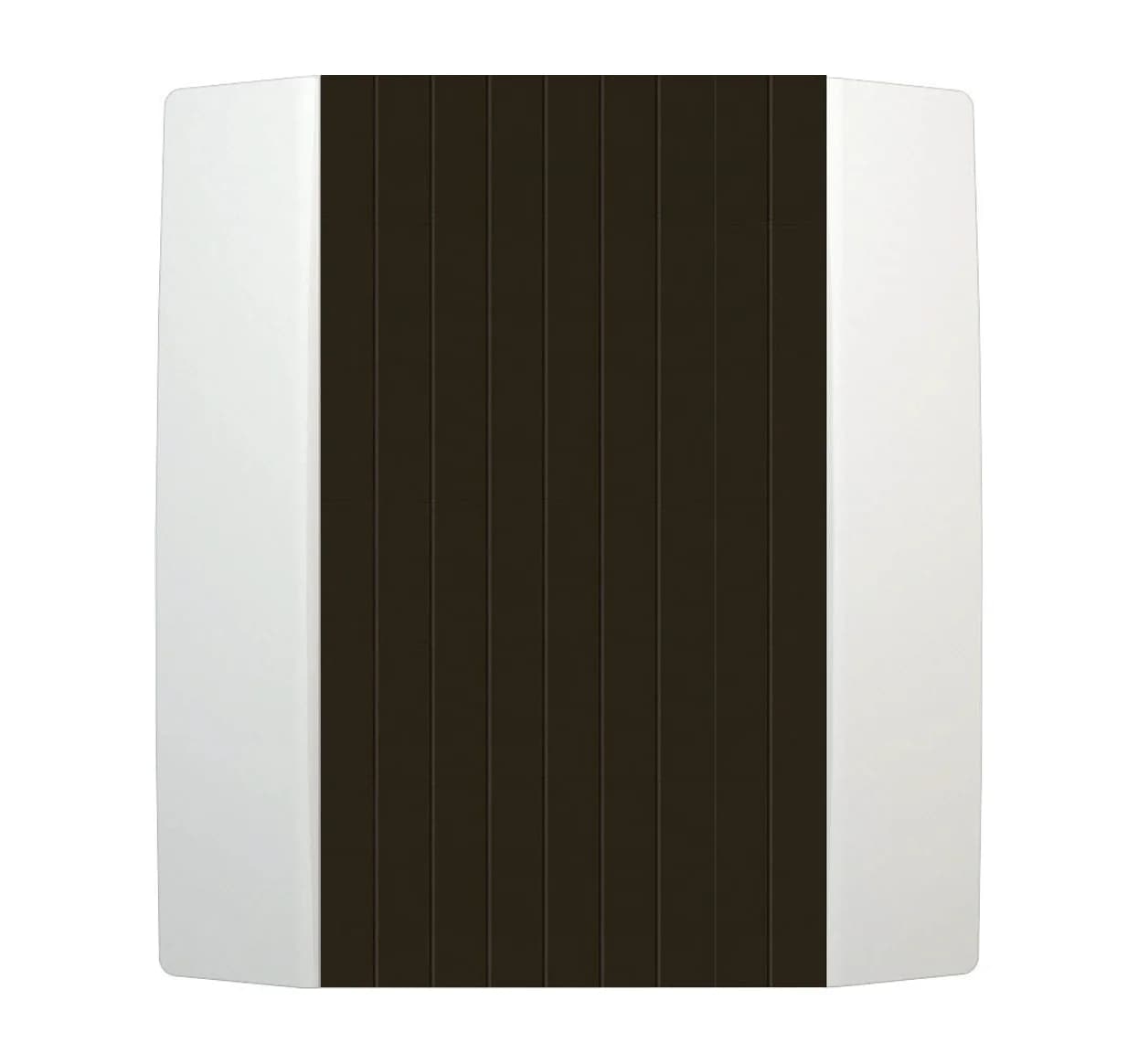

- Pure white or black; white parts listed
- Mounting
- Surface on base with adhesive or screws, or flush on 60 mm EU box
Part numbers
From the manufacturer's datasheet for NOVOS 3 EnOcean.
