Thermokon · Room sensor
NOVOS 3 passive

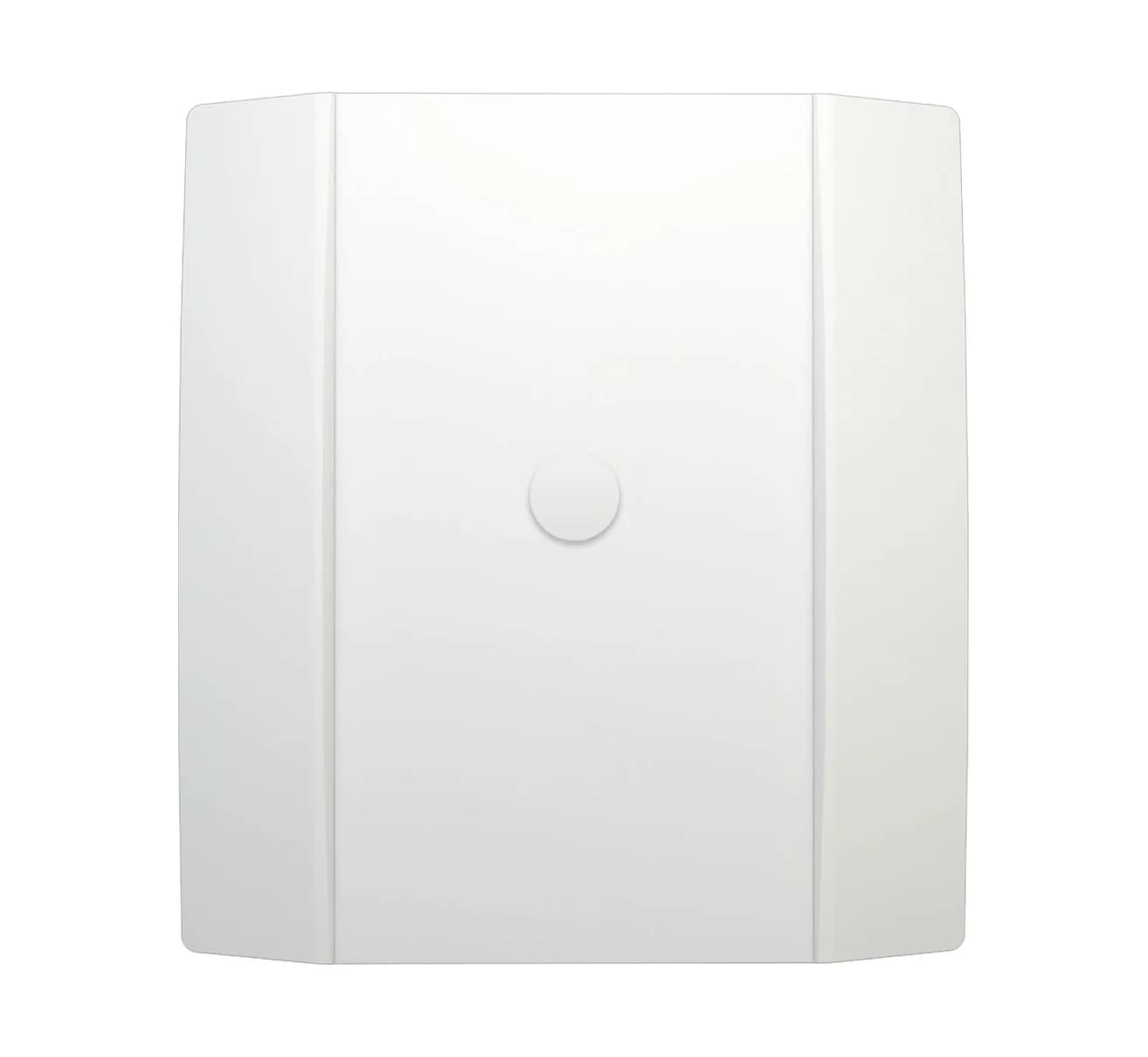

White room temperature sensor with a passive element (Pt100, Pt1000, Ni1000, NTC10k or LM235Z) in the NOVOS 3 enclosure.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number728386
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Connection
- Spring clamp terminal, max. 1.5 mm², 2-wire or 4-wire
Environment
- Humidity
- Max. 85% rH non-condensing
- Protection
- IP20 IP rating
Performance
- Sensor element
- Pt100, Pt1000, Ni1000, Ni1000 TK5000, NTC10k or LM235Z, by version
- Measuring range
- -35 to +70 °C
- Accuracy
- Depends on element, e.g. ±0.3 K at 0 °C, ±0.2 K at 25 °C
Physical
- Housing material
- PC V0
- Colour
- White
- Mounting
- On or in a standard 60 mm EU box, or surface mounted with adhesive foil or screws
- Dimensions
- 110 x 100 x 23 mm
Part numbers
From the manufacturer's datasheet for NOVOS 3 passive.
Overview
The NOVOS 3 passive is a room temperature sensor in the NOVOS 3 enclosure, with a passive element that connects directly to a controller input. It is used in offices, schools and hotels. The base can be mounted and wired separately and the cover clipped on afterwards. An ePaper display is available as an option. The version is chosen by sensor element: Pt100, Pt1000, Ni1000, Ni1000 TK5000, NTC10k or LM235Z.
