Thermokon · Room sensor · BACnet
NOVOS 3 RS485 BACnet
Room sensor in the NOVOS 3 housing for temperature, humidity, CO2 and VOC, with BACnet MS/TP, for schools, offices and hotels.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number755870
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- BACnet MS/TP, RS485
- Interface
- RS485 BACnet
- Connection
- Spring clamp, max. 1.5 mm²
Electrical
- Power supply
- 15 to 35 V DC or 19 to 29 V AC (SELV)
- Power consumption
- Typ. 0.4 W (24 V DC), 0.8 VA (24 V AC)
Environment
- Operating temperature
- 0 to +50 °C
- Humidity
- Max. 85% rH, non-condensing
- Protection
- IP20 IP rating
Performance
- Inputs
- 1 floating contact
- Measuring range
- Temperature 0 to +50 °C; humidity 0 to 100% rH; CO2 0 to 2000 or 0 to 5000 ppm
- Accuracy
- Temperature ±0.5 K, humidity ±2% rH (10 to 90%), CO2 ±50 ppm +3% of reading
- Sensor element
- NDIR (CO2) on CO2 versions, heated metal oxide (VOC) on VOC versions
Physical
- Housing material
- PC V0
- Colour

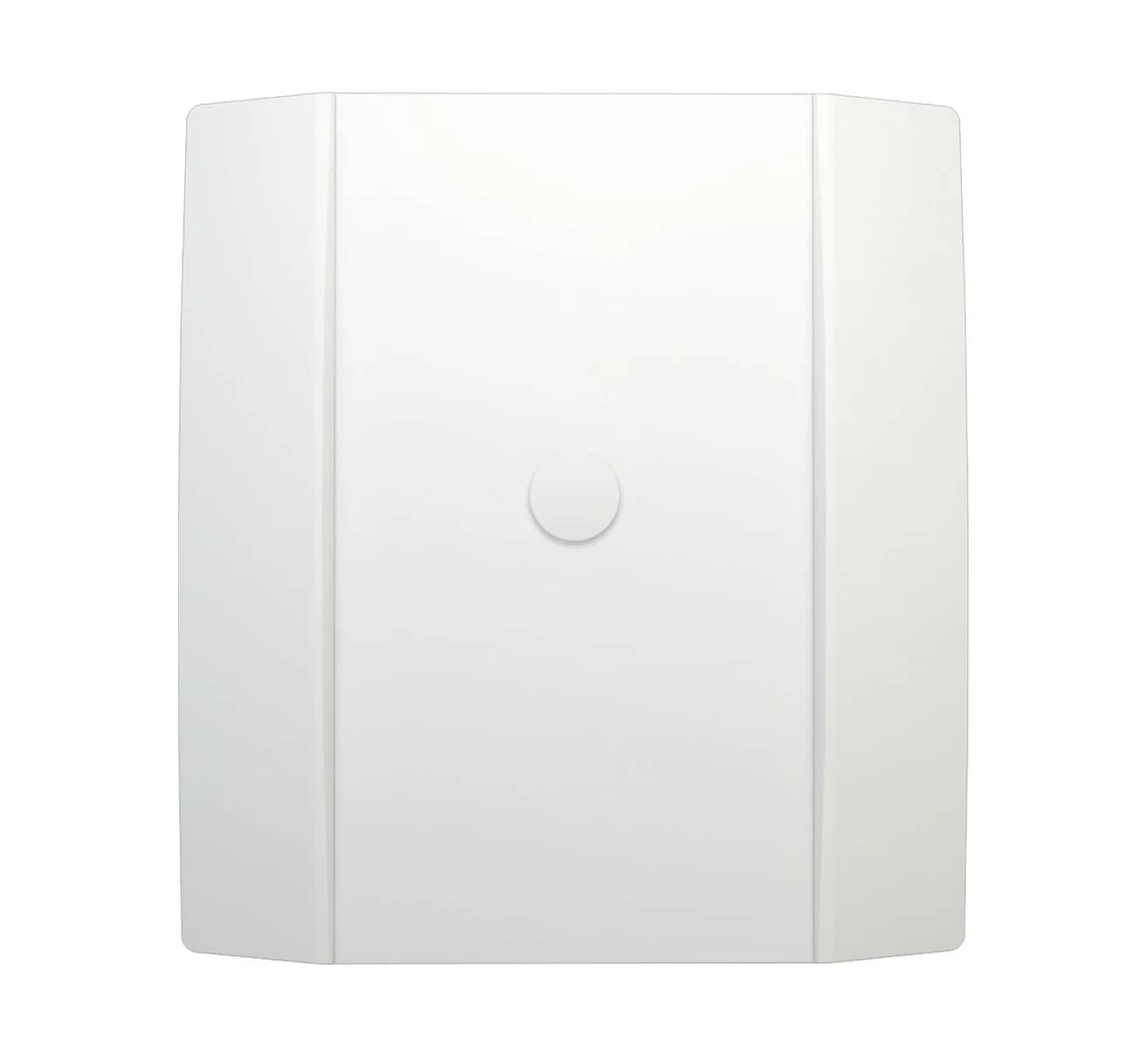

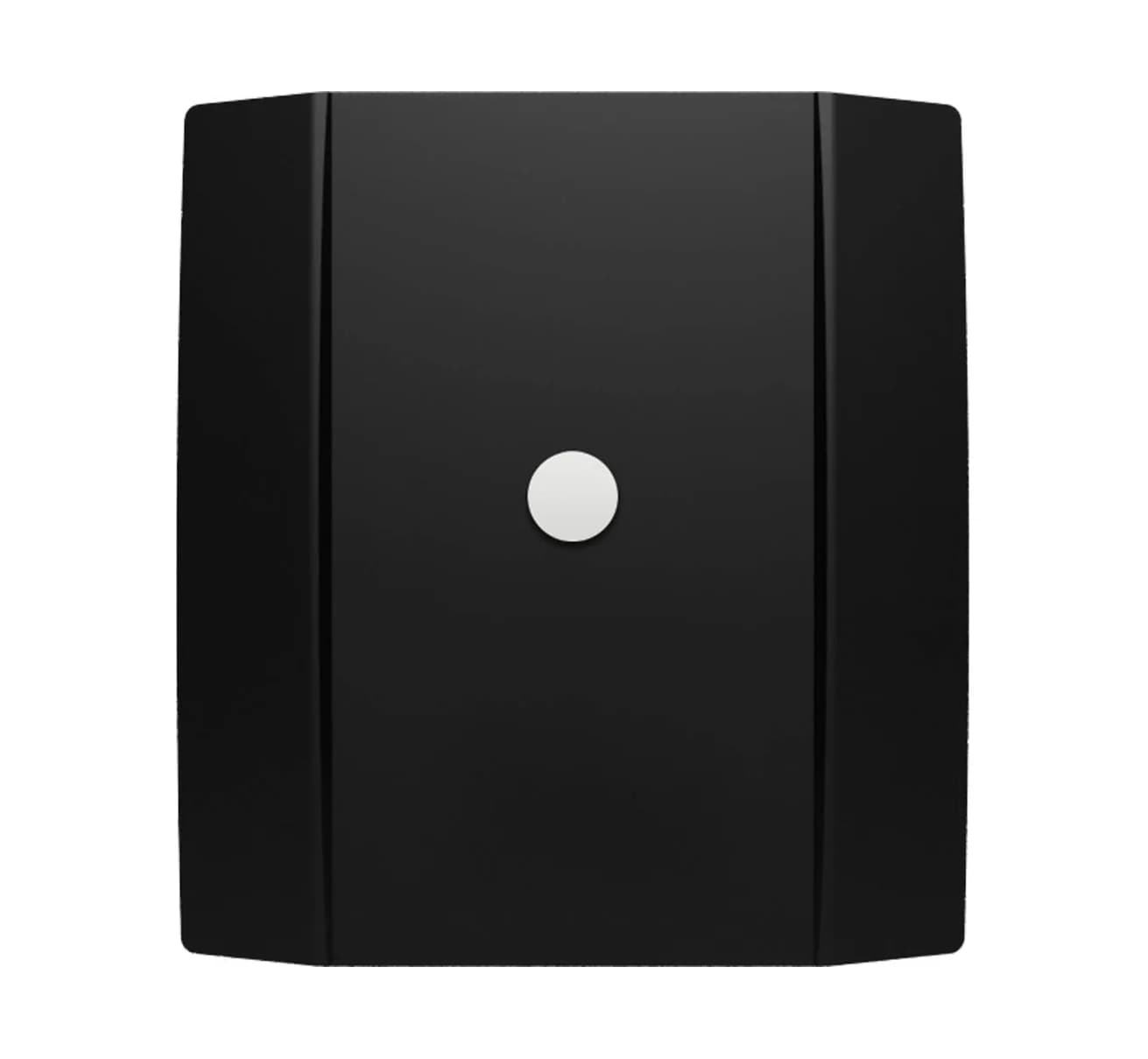

- White (black also made)
- Mounting
- Flush on a standard EU box (60 mm), or surface mount with adhesive foil or screws
Part numbers
From the manufacturer's datasheet for NOVOS 3 RS485 BACnet.
Overview
The NOVOS 3 room sensor measures temperature, humidity, CO2 and mixed gas (VOC), depending on version, and reports over RS485 BACnet MS/TP. It also derives absolute humidity, enthalpy and dew point. It suits schools, office buildings, hotels and cinemas. Parameters are set in the NOVOSapp or uConfig. An ePaper display with a RGB traffic light LED is optional. It takes one floating contact input and mounts on a standard EU box or flat on the wall. A design cover in the colour of your choice is required with each unit.
