Picture coming soon

Thermokon · Room sensor

NOVOS 5 active

Name: NOVOS 5 active
Brand: Thermokon

White room sensor with colour-changing LCD for temperature, humidity, CO2 and VOC, with voltage or current outputs.

Availability and lead time confirmed on your quote

Output: 2 x voltage

Measures: CO2, temperature

Part number734202

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Connection: Spring clamp terminal, max. 1.5 mm², removable plug-in block

Electrical

Power supply: 15 to 35 V DC SELV or 19 to 29 V AC SELV
Power consumption: Typ. 0.4 W (24 V DC), 0.8 VA (24 V AC)

Environment

Operating temperature: 0 to +50 °C
Humidity: Max. 85% rH non-condensing
Protection: IP30 IP rating

Performance

Measuring range: Humidity 0 to 100% rH; CO2 0 to 2000 or 0 to 5000 ppm; temperature range selectable
Accuracy: Temperature ±0.5 K, humidity ±2% (10 to 90% rH), CO2 ±50 ppm +3% of reading
Sensor element: CO2 sensor with dual channel self-calibration; VOC by heated metal oxide semiconductor
Output signal: 0 to 10 V or 0 to 5 V (min. load 10 kΩ), or 4 to 20 mA (max. load 500 Ω), 1 to 4 outputs by version

Physical

Housing material: PC V0
Colour: White
Mounting: On or in a standard 60 mm EU box, or surface mounted with adhesive foil or screws
Dimensions: 163 x 106 x 25 mm

Part numbers

From the manufacturer's datasheet for NOVOS 5 active.

Overview

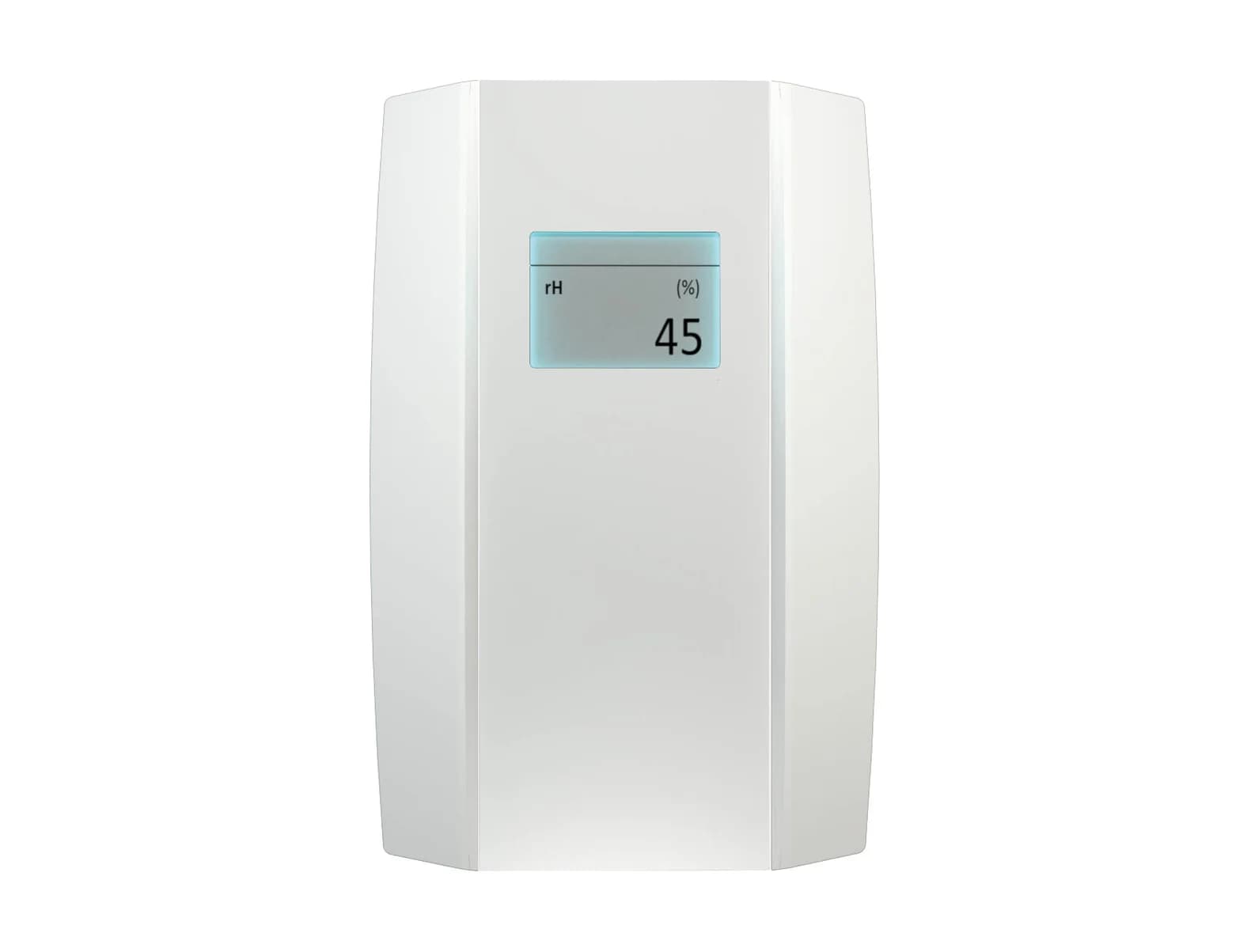

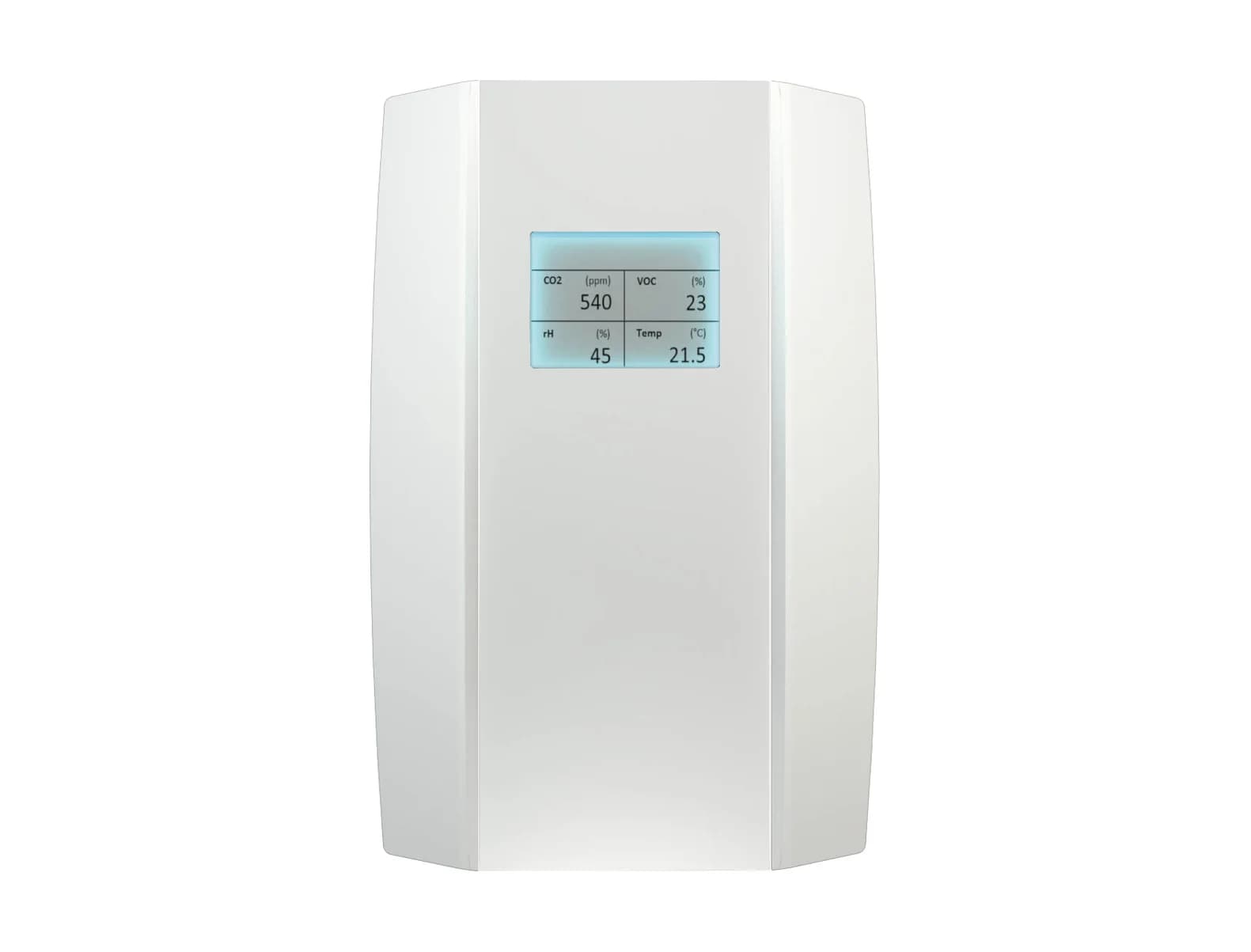

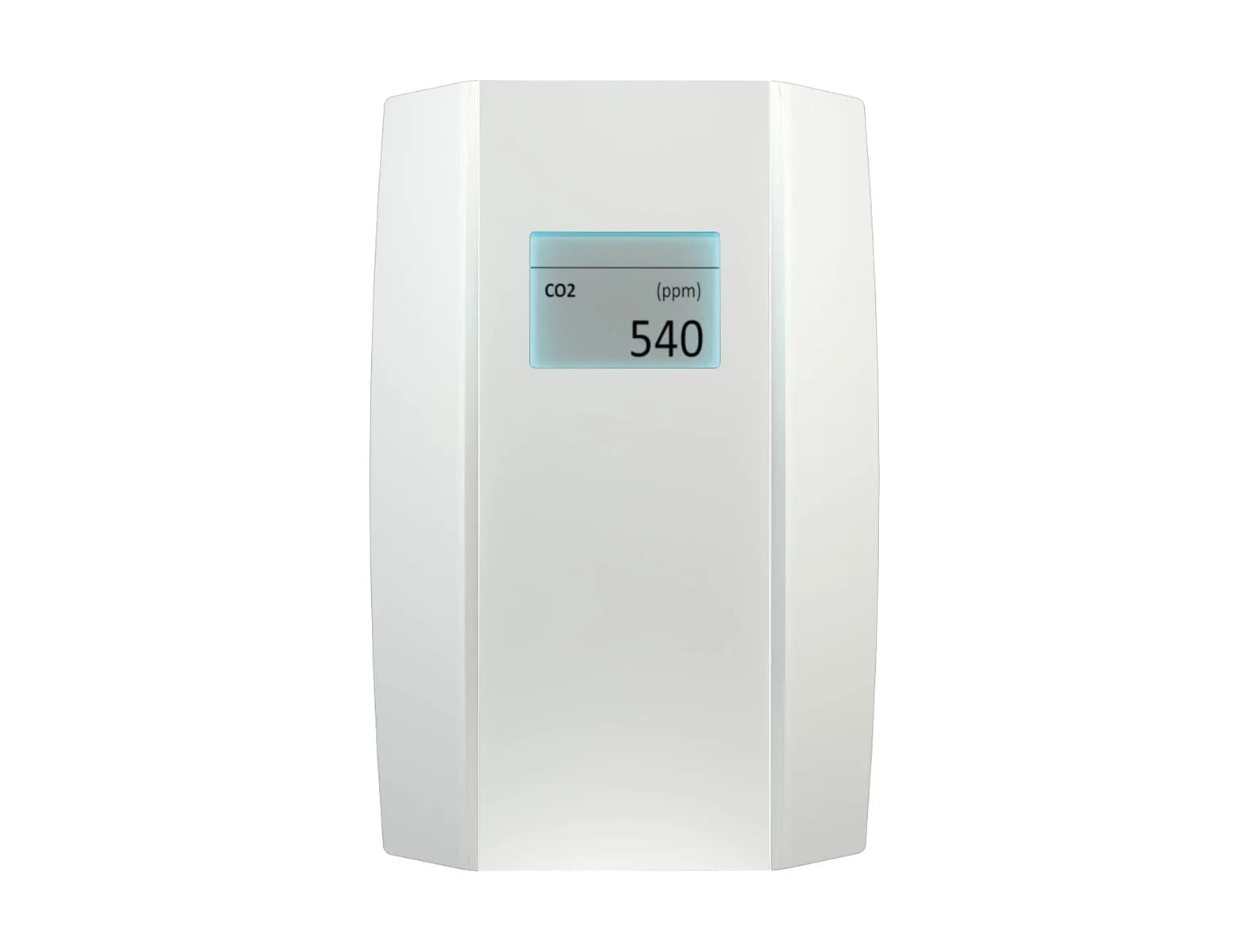

The NOVOS 5 active is a wall-mounted room sensor that measures temperature, relative humidity, CO2 and mixed gas (VOC), depending on the version. Humidity can also be output as absolute humidity, enthalpy or dew point. It suits schools, offices, hotels and cinemas. An LCD with a colour-changing backlight shows the readings and warns when a threshold is exceeded. Display settings and other parameters are set with the Thermokon NOVOSapp. Versions have one to four analogue outputs, either 0 to 10 V (or 0 to 5 V) or 4 to 20 mA.
