Thermokon · Air quality sensor

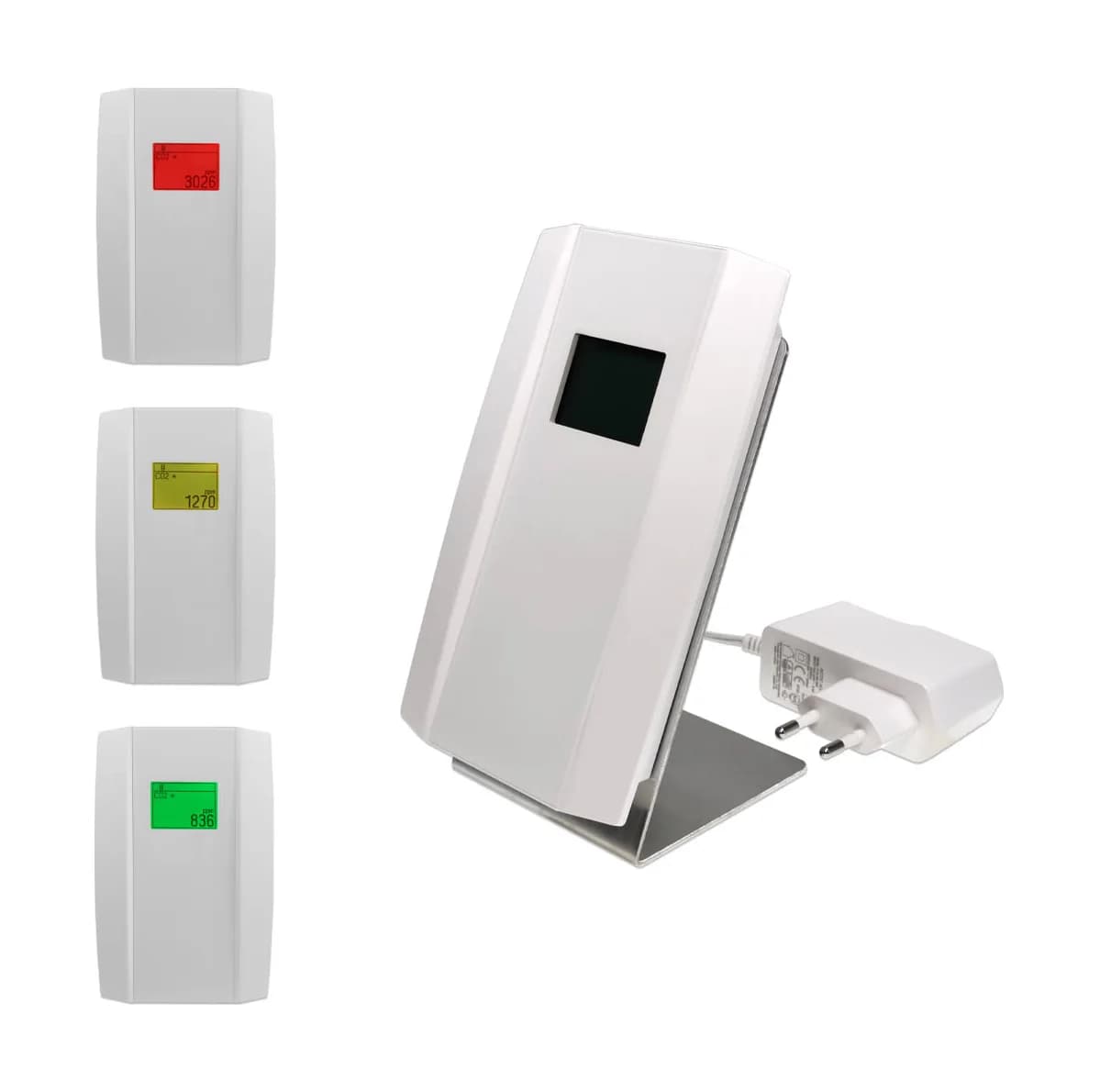

NOVOS 5 move

Name: NOVOS 5 move
Brand: Thermokon

NOVOS 5 CO2 and temperature sensor with a colour changing LCD traffic light, supplied with a stand and power supply.

Availability and lead time confirmed on your quote

Version: Standard

Part number777636

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Electrical

Power supply: 15 to 35 V DC or 19 to 29 V AC (SELV), 100 to 230 V AC mains adapter (max. 0.4 A), or flush-mounted 230 V AC supply

Environment

Operating temperature: 0 to +50 °C, humidity up to 85% rH non-condensing
Protection: IP30 IP rating

Performance

Measuring range: CO2 0 to 5000 ppm; temperature
Accuracy: Temperature ±0.5 K, CO2 ±50 ppm +3% of reading (typical at 21 °C)

Physical

Housing material: PC V0
Colour: Pure white
Mounting: Flush on a 60 mm EU box, or surface mounted flat with adhesive foil or screws, or on the stand
Dimensions: 163 x 106 x 25 mm

Part numbers

From the manufacturer's datasheet for NOVOS 5 move.

Overview

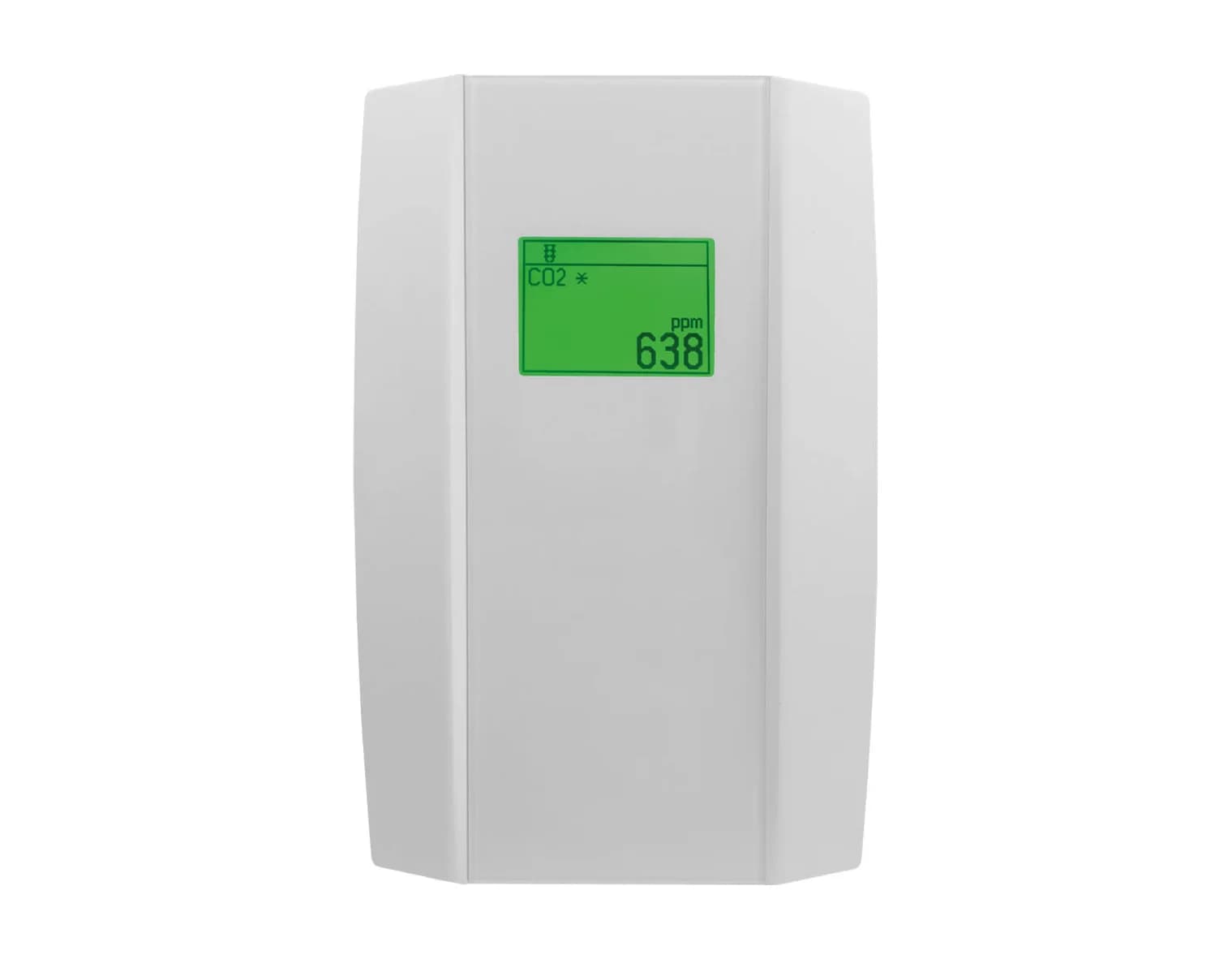

The NOVOS 5 move is a CO2 and temperature sensor in the NOVOS 5 enclosure, built to act as a CO2 traffic light in classrooms and offices. The backlit LCD changes colour as CO2 rises through configurable threshold values. It is supplied with a stand and a power supply, so it can sit on a desk or be fixed to a wall. Thermokon lists a plug-in mains adapter for 100 to 230 V and a flush-mounted 230 V supply as power options, as well as a 15 to 35 V DC or 19 to 29 V AC connection. Display settings are made with NOVOSapp or uConfig.
