Thermokon · Air quality sensor · BACnet

NOVOS 5 BACnet

Name: NOVOS 5 BACnet
Brand: Thermokon

Room sensor with a colour changing LCD for temperature, humidity, CO2 and VOC, on BACnet MS/TP.

Availability and lead time confirmed on your quote

Measures: CO2, temperature, humidity

Part number755696

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Protocol: BACnet MS/TP
Interface: RS485

Electrical

Power supply: 15 to 35 V DC SELV or 19 to 29 V AC SELV
Power consumption: 0.4 W typical at 24 V DC, 0.8 VA at 24 V AC

Environment

Operating temperature: 0 to +50 °C
Humidity: Maximum 85% rH, non-condensing
Protection: IP30 IP rating

Performance

Inputs: 1 digital input for a floating contact
Measuring range: Temperature 0 to +50 °C; humidity 0 to 100% rH; CO2 0 to 2000 or 0 to 5000 ppm
Accuracy: Temperature +/-0.5 K; humidity +/-2% between 10 and 90% rH; CO2 +/-50 ppm +3% of reading
Sensor element: Heated metal oxide semiconductor for VOC; self-calibrating CO2

Physical

Colour: Pure white or black
Housing material: PC V0
Dimensions: 163 x 106 x 25 mm
Mounting: Flush on a 60 mm EU box or surface mounted

Part numbers

From the manufacturer's datasheet for NOVOS 5 BACnet.

Overview

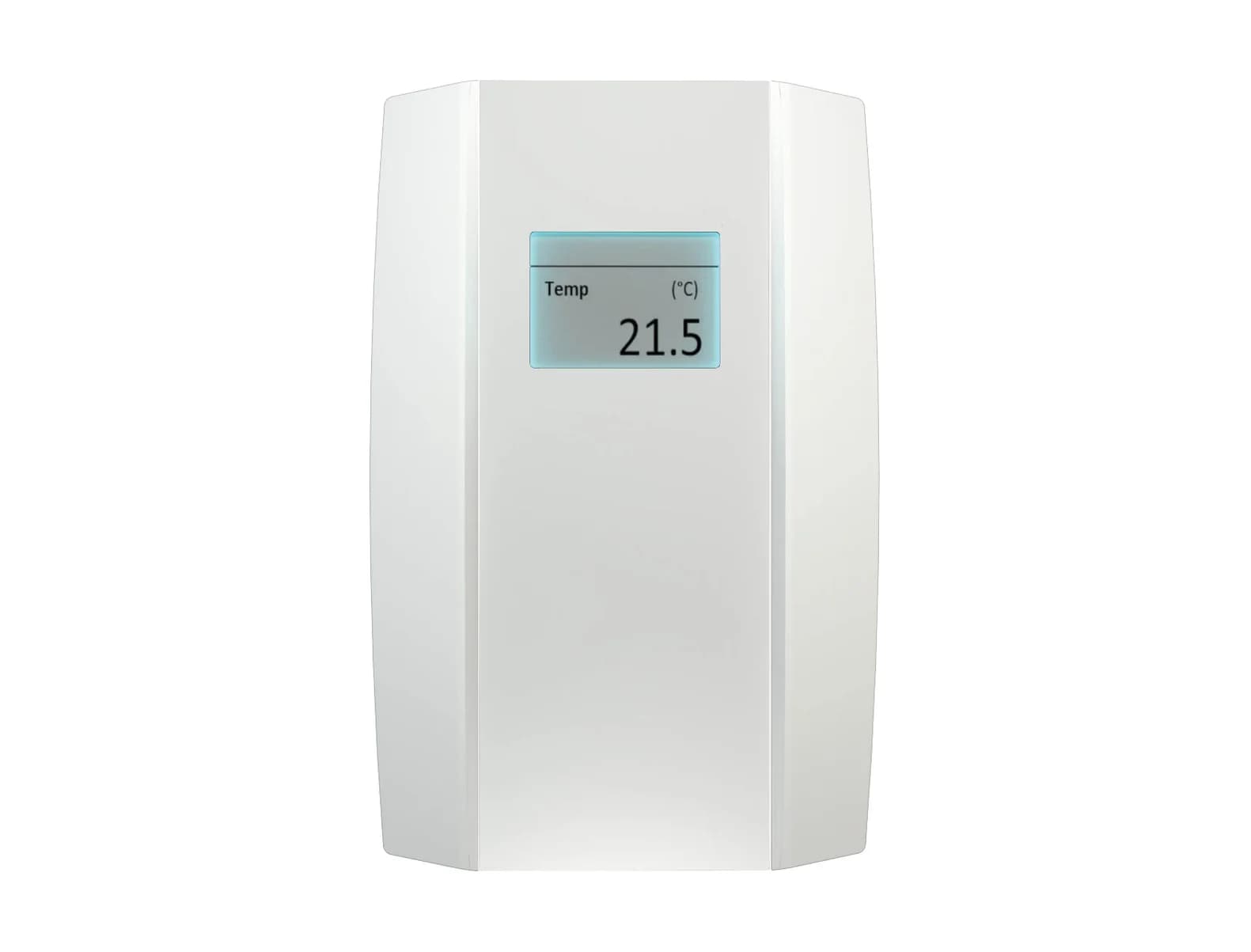

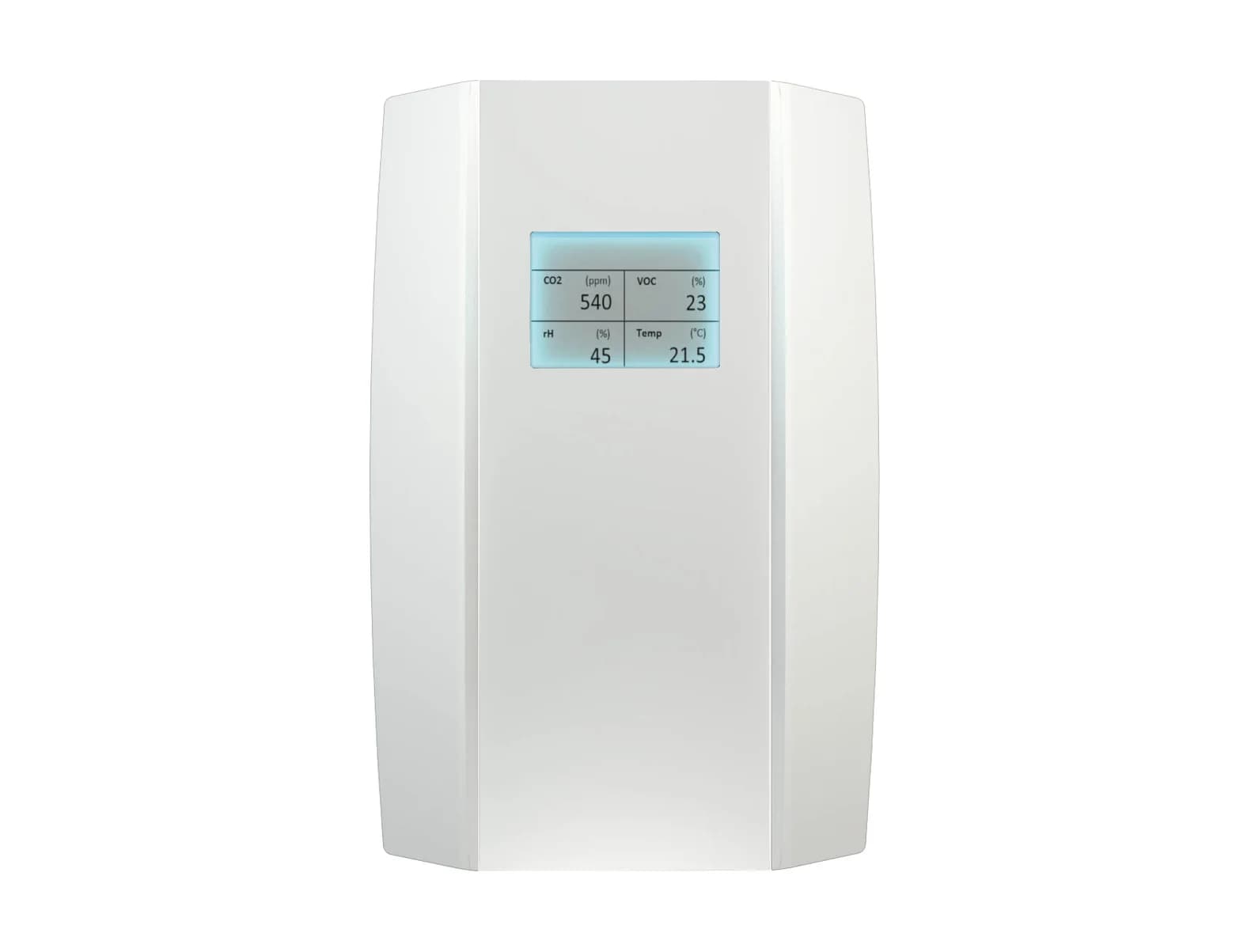

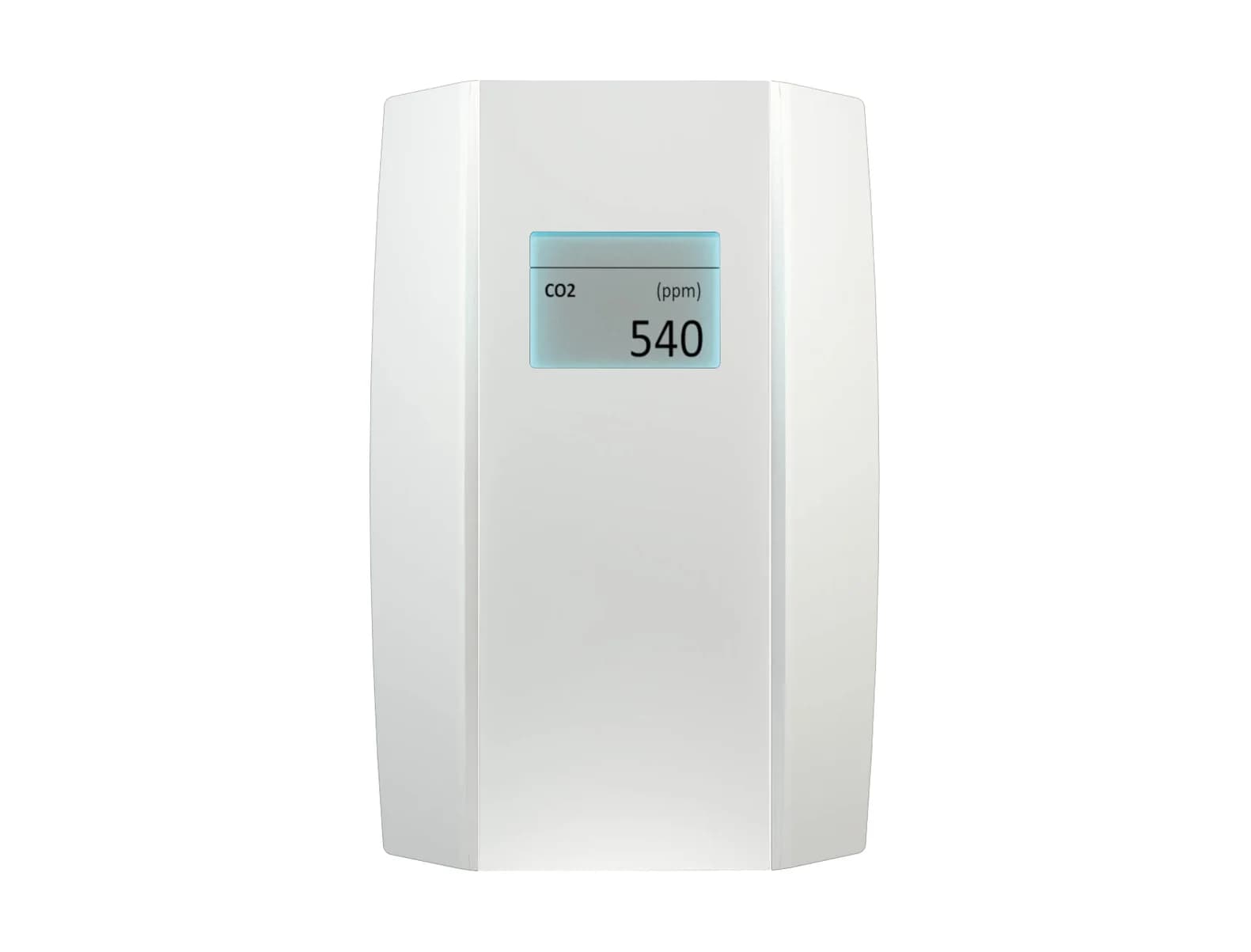

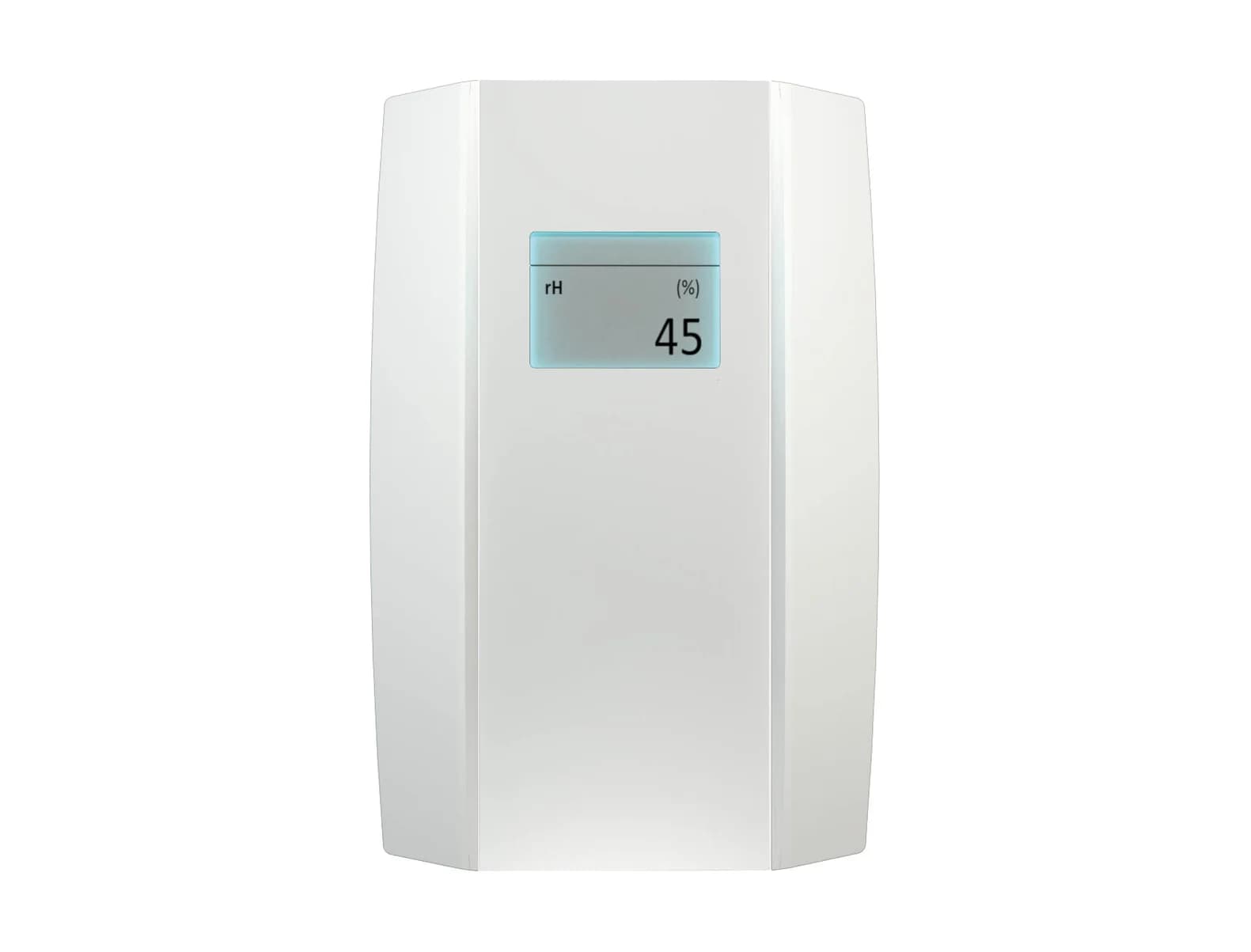

The NOVOS 5 is an active room sensor in a white housing with an LCD that changes backlight colour and shows measured values and threshold alarms. Nine versions cover combinations of temperature, humidity, CO2 and mixed gas (VOC). Humidity versions can also output absolute humidity, enthalpy and dew point. It connects on RS485 BACnet MS/TP and has one input for a floating contact. Display settings and ranges are set with the Thermokon NOVOSapp or uConfig. A VOC sensor responds to body odour, tobacco smoke and off-gassing from furnishings. It suits schools, offices, hotels and cinemas.
