Thermokon · Room sensor · Modbus

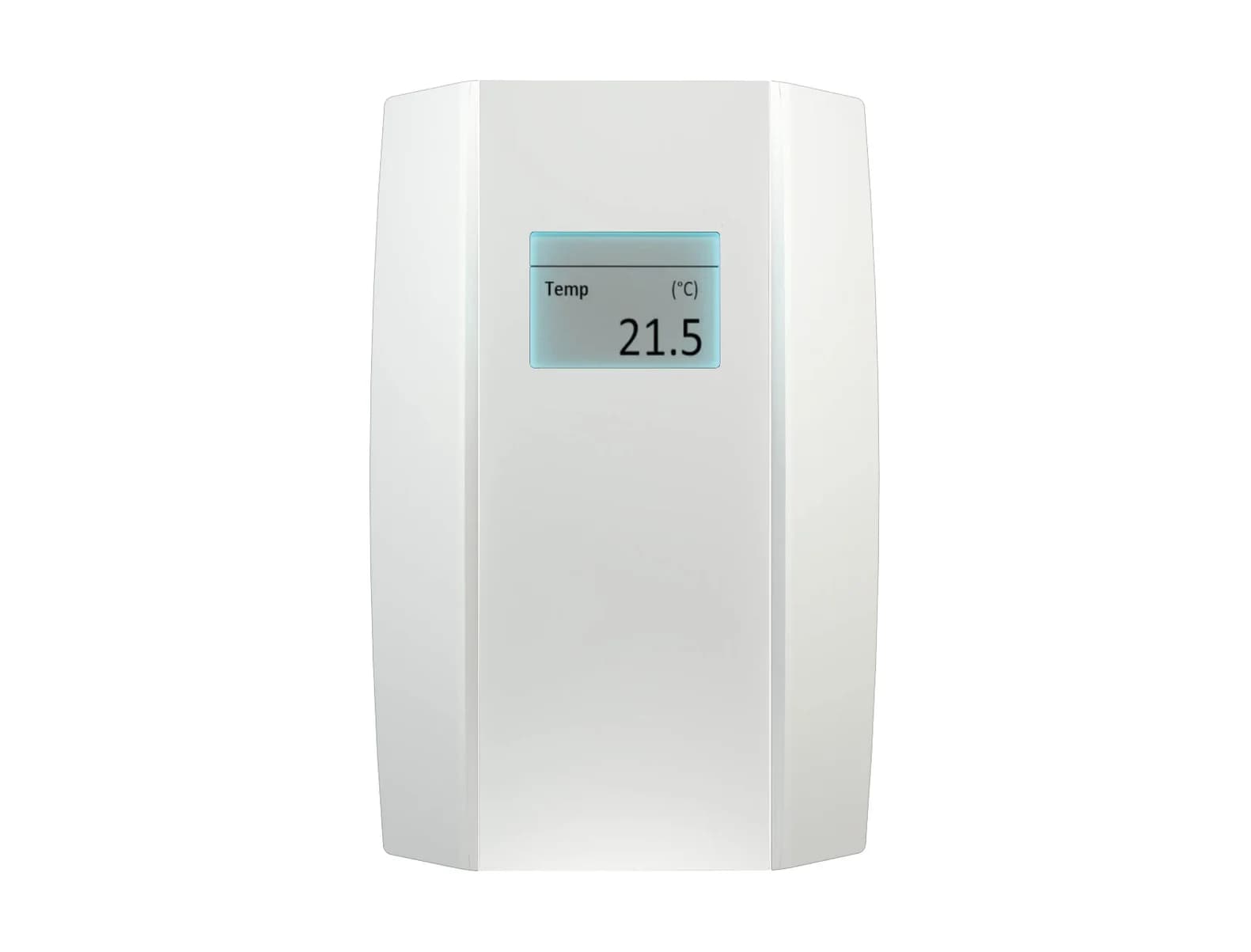

NOVOS 5 RS485 Modbus

Name: NOVOS 5 RS485 Modbus
Brand: Thermokon

Room sensor with a colour backlit LCD for temperature, humidity, CO2 and VOC, with an RS485 Modbus RTU output.

Availability and lead time confirmed on your quote

Measures: Temperature, humidity

Part number733649

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Protocol: Modbus RTU
Interface: RS485 Modbus, half duplex, 9600 to 57600 baud, parity none (2 stop bits), even or odd (1 stop bit)

Electrical

Power supply: 15 to 35 V DC or 19 to 29 V AC, SELV
Power consumption: Typically 0.4 W at 24 V DC, 0.8 VA at 24 V AC

Environment

Operating temperature: 0 to +50 °C, humidity up to 85% rH non-condensing
Protection: IP30 IP rating

Performance

Inputs: 1 input for a floating contact
Measuring range: Temperature 0 to +50 °C by default, selectable from -50 to +50, 0 to +50, -20 to +80 or -15 to +35 °C; humidity 0 to 100% rH; CO2 0 to 2000 or 0 to 5000 ppm; VOC mixed gas
Accuracy: Temperature ±0.5 K, humidity ±2% between 10 and 90% rH, CO2 ±50 ppm +3% of reading (typical at 21 °C)
Sensor element: CO2 with dual channel self calibration; VOC by heated metal oxide semiconductor

Physical

Housing material: PC V0
Colour: Pure white
Mounting: Flush on a 60 mm EU box, or surface mounted flat with adhesive foil or screws
Dimensions: 163 x 106 x 25 mm

Part numbers

From the manufacturer's datasheet for NOVOS 5 RS485 Modbus.

Overview

The NOVOS 5 is an active room sensor in a flush-mounting enclosure. Depending on the version it measures temperature, relative humidity, CO2 and mixed gas (VOC), and it can calculate absolute humidity, enthalpy and dew point from the humidity reading. It suits schools, offices, hotels and cinemas. The LCD has an RGB backlight that changes colour as readings cross configurable threshold values, so it also works as an air quality traffic light. Display settings and other parameters are set with the Thermokon NOVOSapp or uConfig. All values are read over RS485 Modbus RTU. The mixed gas sensor responds to volatile organic compounds such as body odour, tobacco smoke and gases given off by furniture, carpets and paint. There is one input for a floating contact. The base part can be mounted and wired separately from the front.
