Thermokon · Room operating unit · BACnet
NOVOS 5 x RS485 BACnet
Surface or flush mounted room operating unit in the NOVOS design with BACnet MS/TP, a temperature sensor, and a 5 stage fan switch with or without a setpoint potentiometer.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number754217
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- BACnet MS/TP over RS485
- Connection
- Spring clamp, max. 1.5 mm²
Electrical
- Power supply
- 15 to 35 V DC or 19 to 29 V AC, SELV
- Power consumption
- Typ. 0.4 W (24 V DC), 0.8 VA (24 V AC)
Environment
- Operating temperature
- -35 to +70 °C
- Humidity
- Max. 85% rH, non-condensing
- Protection
- IP30 to EN 60529 IP rating
Performance
- Inputs
- 1 x floating contact
- Measuring range
- Temperature output default 0 to +50 °C, selectable
- Accuracy
- ±0.5 K (typ. at 21 °C)
Physical
- Housing material
- PC V0
- Colour

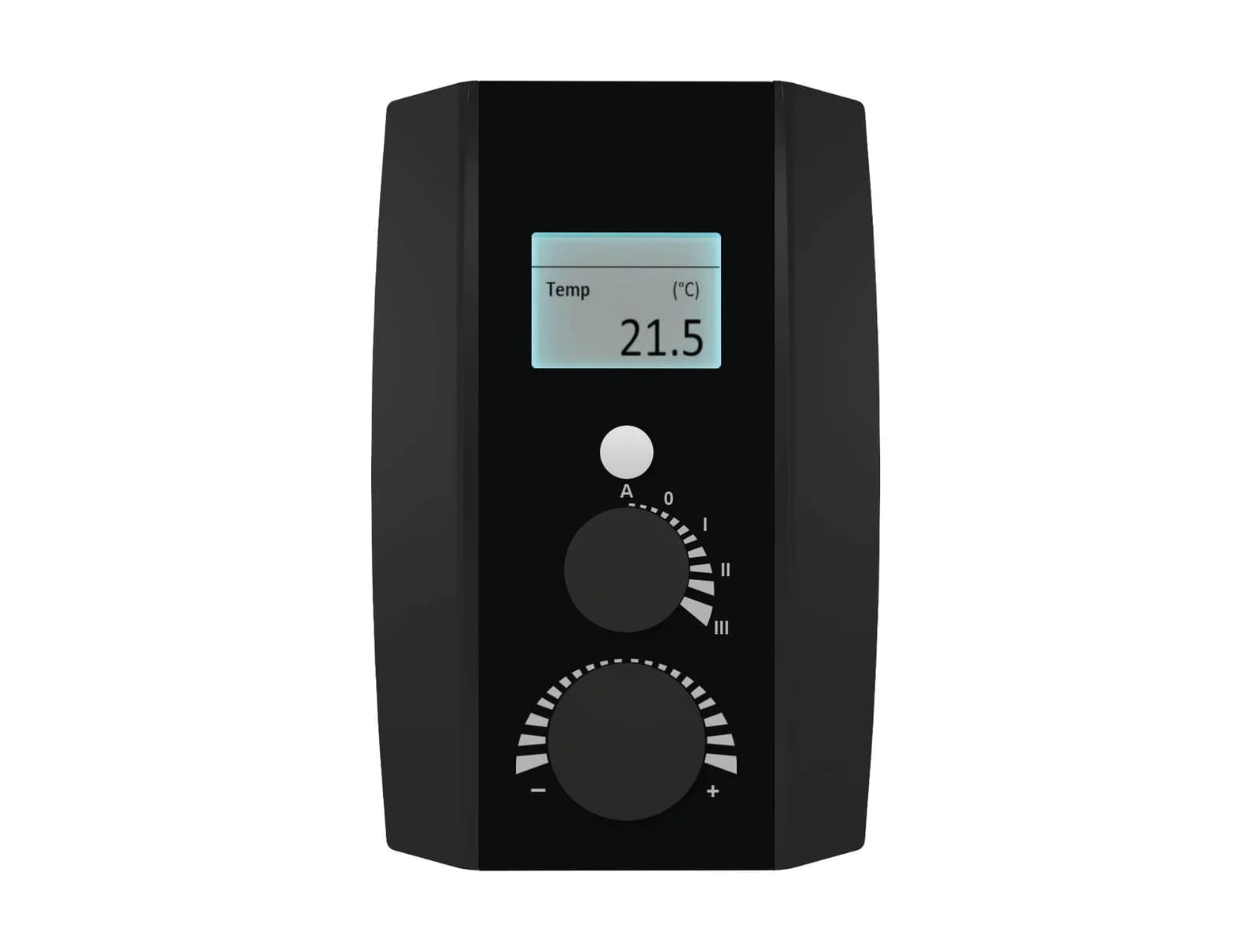

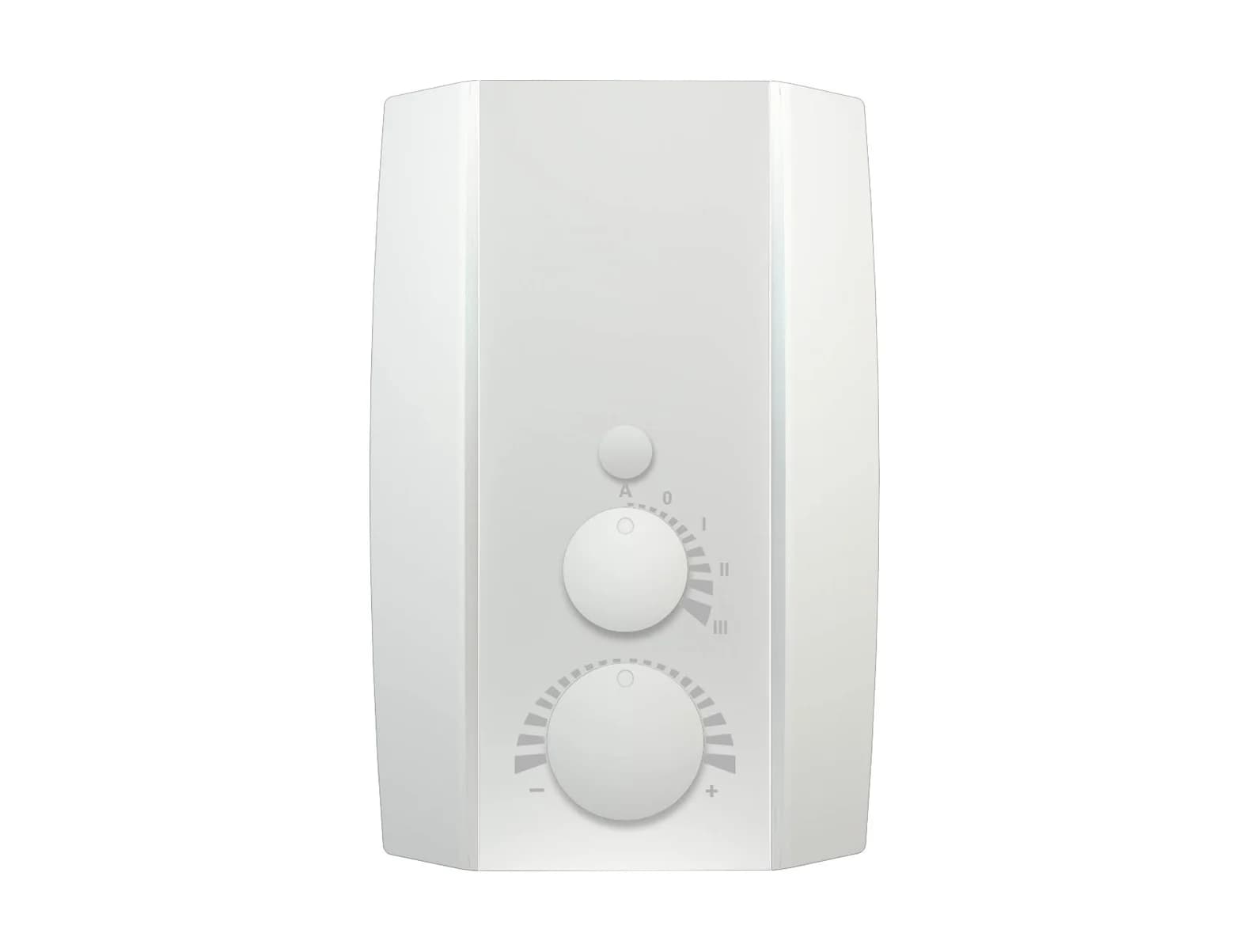

- Pure white (parts listed); black also made
- Mounting
- Flush on 60 mm EU box, or surface mounted with adhesive foil or screws
From the manufacturer's datasheet for NOVOS 5 x RS485 BACnet.
Overview
The NOVOS 5 is a room operating unit with an integrated temperature sensor. Its operating elements can be a setpoint potentiometer, a status LED in up to 7 selectable colours, a rotary switch for fan stages and a presence button. The terminal sits in the back part, so the base can be wired before the unit is fitted. These versions connect to BACnet MS/TP over RS485 and have 5 fan stages (FS5). The S version has the fan stage switch only; the PSTD version adds the potentiometer, a button and LED. It can be mounted on a 60 mm EU box or surface mounted. The NOVOSapp or uConfig sets it up.
