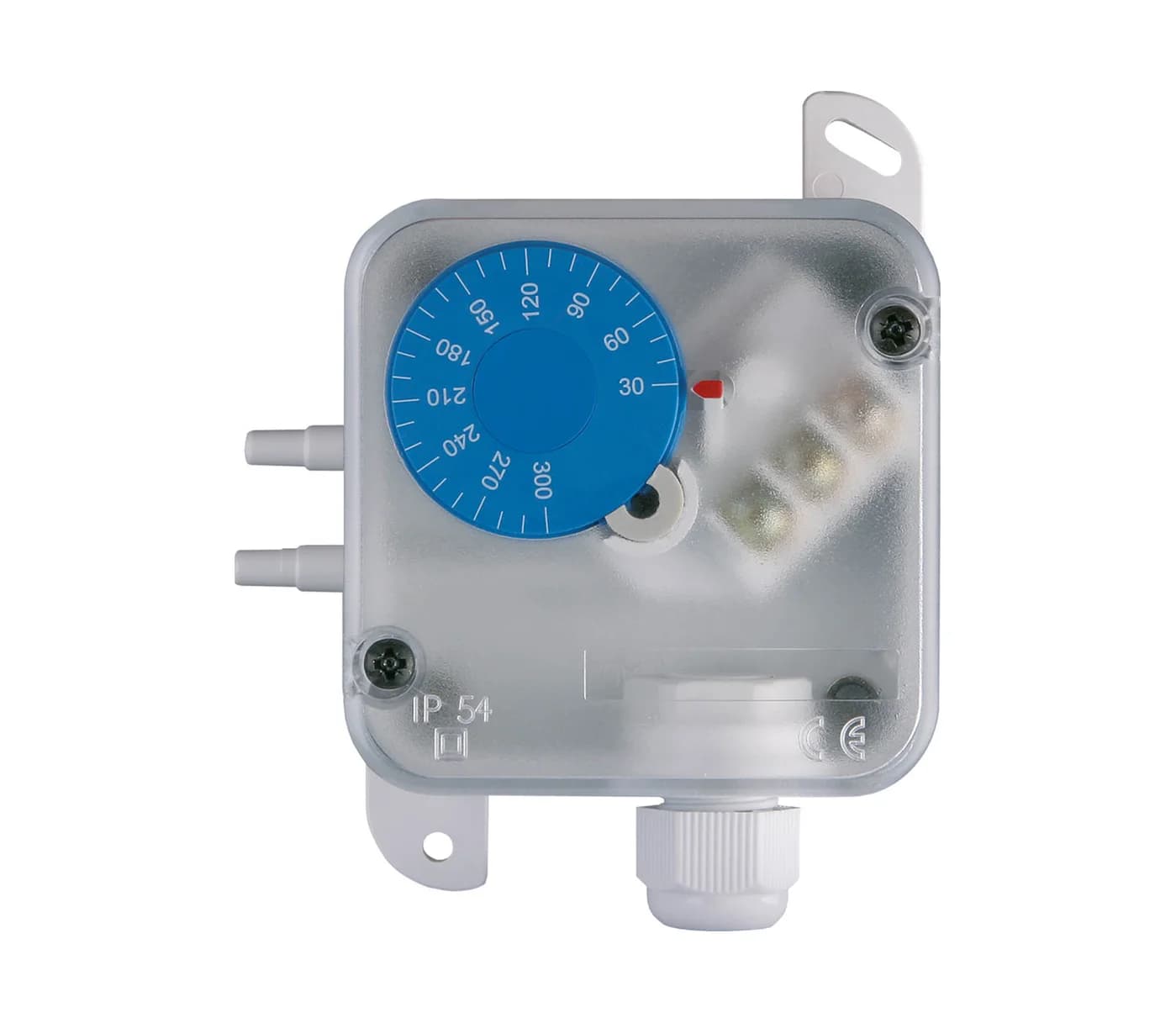

Thermokon · Pressure sensor

PS300 to PS4500

Name: PS300 to PS4500
Brand: Thermokon

Adjustable differential pressure switch for air and non-flammable gases, in four ranges up to 4500 Pa.

Availability and lead time confirmed on your quote

Range: 30 to 500 Pa

Part number269995

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Interface: Switch contact, changeover, 1 A resistive
Connection: M16 cable entry, terminals up to 1.5 mm²; 5.0 and 6.3 mm pressure spigots

Environment

Operating temperature: -20 to +60 °C
Humidity: Maximum 85% rH, short term condensation
Protection: IP54 IP rating

Performance

Measuring range: 30 to 300, 30 to 500, 100 to 1500 or 500 to 4500 Pa, by model
Accuracy: Typically +/-5, +/-10 or +/-50 Pa, by range
Nominal pressure: Maximum 50 kPa

Physical

Housing material: ABS, silicone membrane, translucent PC cover
Colour: Pure white
Dimensions: 105 x 89 x 63 mm
Weight: 150 g

Part numbers

From the manufacturer's datasheet for PS300 to PS4500.

Overview

The PS is an adjustable differential pressure switch for monitoring air filters, fans, damper actuators and other processes in air. Four ranges are available, from 30 to 300 Pa up to 500 to 4500 Pa. It has a changeover contact rated at 1 A resistive. Mounting screws, a pressure connection set and a 2 m PVC hose are included.
