Thermokon · Room sensor
RDF-IR active
Flush ceiling infrared sensor that reads the average surface temperature of a room area, with analogue outputs, single or dual.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number699150
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Connection
- Plug-in terminal max. 2.5 mm², 2 RJ45 sockets
Electrical
- Power supply
- 15 to 35 V DC or 19 to 29 V AC
- Power consumption
- typ. 0.6 W (24 V DC), 1.5 VA (24 V AC)
Environment
- Operating temperature
- -20 to +70 °C
- Humidity
- max. 85% rH, short term condensation
- Protection
- IP30 IP rating
Performance
- Output signal
- 0 to 10 V or 0 to 5 V (2 outputs on Dual), 4 to 20 mA, 2 floating NO contacts 24 V, 3 A
- Measuring range
- 0 to +50 °C default, selectable from -40 to +60, 0 to +50, -20 to +80, -15 to +35 °C
- Sensor element
- Infrared, optical aperture angle 80 +/-5 degrees
- Accuracy
- +/-0.5 K, typical at 21 °C; +/-1.5 K at mounting height above 7 m
Physical
- Housing material
- PC, USE-M housing
- Colour
- Pure white
- Cable length
- 1.5 m (V), 2 x 1.5 m (Dual); 1.5, 3, 7.5 m or up to 10 m listed
- Dimensions
- 85 x 84 x 45 mm
From the manufacturer's datasheet for RDF-IR active.

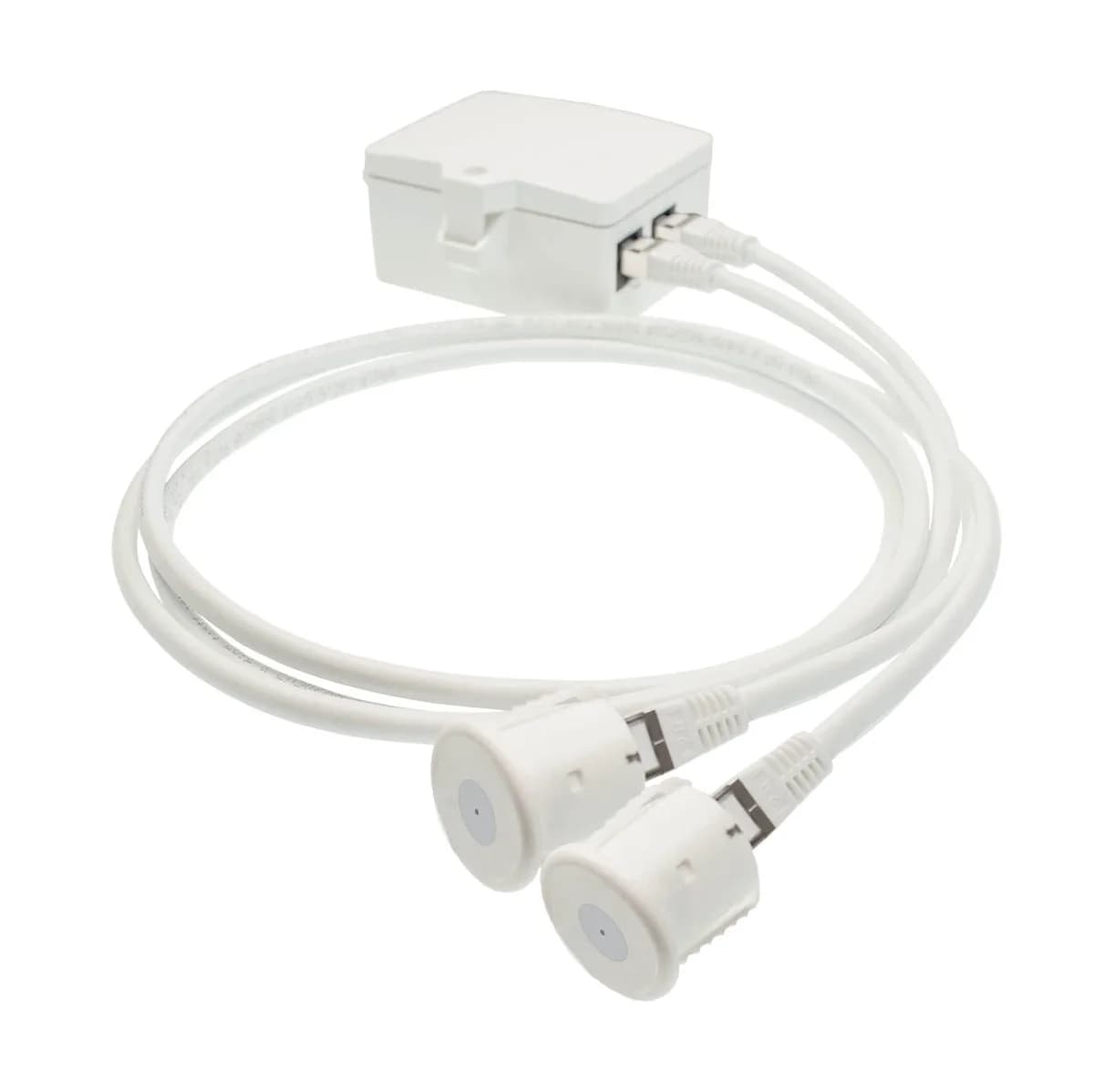

Overview
