Thermokon · Room sensor · BACnet
RDF-IR RS485 BACnet
Ceiling flush-mounted infrared sensor for surface and radiant temperature, with a BACnet MS/TP interface.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number732604
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- BACnet MS/TP (RS485)
Electrical
- Power supply
- 15 to 35 V DC or 19 to 29 V AC
- Power consumption
- Typ. 0.6 W (24 V DC), 1.5 VA (24 V AC)
Environment
- Operating temperature
- -20 to +70 °C
- Humidity
- Max. 85% rH, short term condensation
- Protection
- IP30 IP rating
Performance
- Output signal
- 1 or 2 x 0 to 10 V or 0 to 5 V, min. load 10 kΩ
- Measuring range
- 0 to +50 °C default radiation temperature
- Accuracy
- +/-0.5 K (typ. at 21 °C), +/-1.5 K above 7 m mounting height
- Sensor element
- Infrared, aperture 80 degrees +/-5 degrees
Physical
- Housing material
- PC, USE-M enclosure
- Colour
- Pure white
- Cable length
- 1.5 m on listed parts (family also 3, 7.5 and 10 m)
- Dimensions
- 85 x 84 x 45 mm enclosure
From the manufacturer's datasheet for RDF-IR RS485 BACnet.
Overview

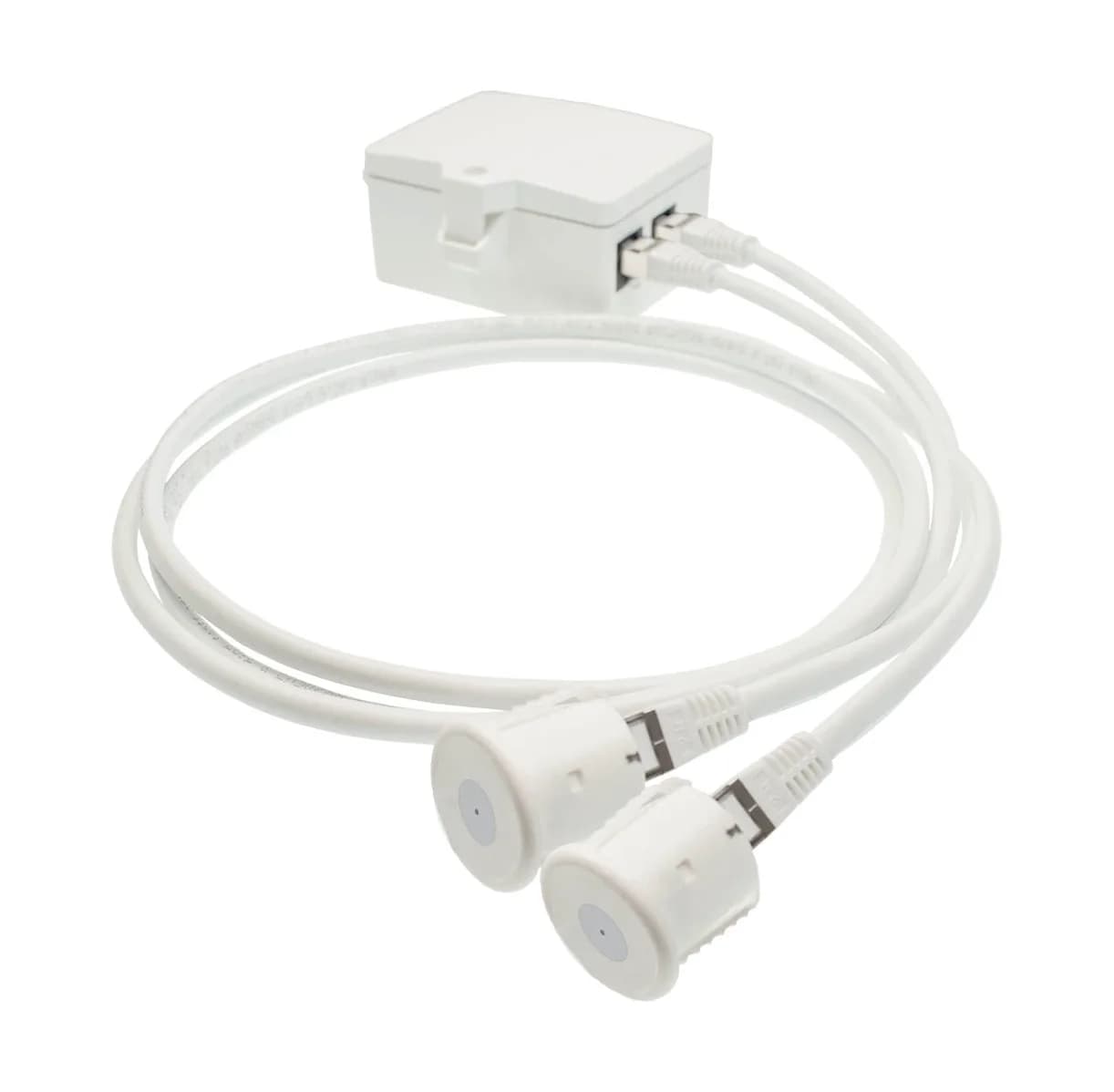

The RDF-IR measures an averaged radiation temperature over a circular area on the floor or workplace from a ceiling flush box. It uses an infrared sensor with an optical aperture of 80 degrees +/-5 degrees. It suits rooms, offices and other workplaces. The Dual version uses two IR sensors and can output the mean, minimum or maximum of both. The sensor head connects by patch cable with RJ45 plugs, 1.5 m on the listed parts, to a USE-M enclosure with BACnet MS/TP and 0 to 10 V outputs. An LCD is an enclosure option.
