Thermokon · Room sensor · Modbus
RDF-IR RS485 Modbus
Ceiling infrared sensor that measures surface temperature over an 80 degree area, with RS485 Modbus, in single or dual versions.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number774789
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- Modbus RTU, RS485, 9600 to 57600 baud
- Interface
- RS485 Modbus
- Connection
- Plug-in terminal, max. 2.5 mm², bus max. 1.5 mm², M25 cable entry, 2 x RJ45 socket
Electrical
- Power supply
- 15 to 35 V DC or 19 to 29 V AC (SELV)
- Power consumption
- Typ. 0.6 W (24 V DC), 1.5 VA (24 V AC)
Environment
- Operating temperature
- -20 to +70 °C
- Humidity
- Max. 85% rH, short term condensation
- Protection
- IP30 IP rating
Performance
- Sensor element
- PIR (passive infrared), 80 ±5 degree aperture
- Measuring range
- Output scaling 0 to +50 °C by default, selectable from 4 ranges
- Accuracy
- ±0.5 K (typ. at 21 °C), ±1.5 K above 7 m mounting height
Physical
- Cable length
- 1.5 m RJ45 patch cable (2 x 1.5 m on the dual version)
- Housing material
- PC, USE-M housing
- Colour
- Pure white
From the manufacturer's datasheet for RDF-IR RS485 Modbus.
Overview

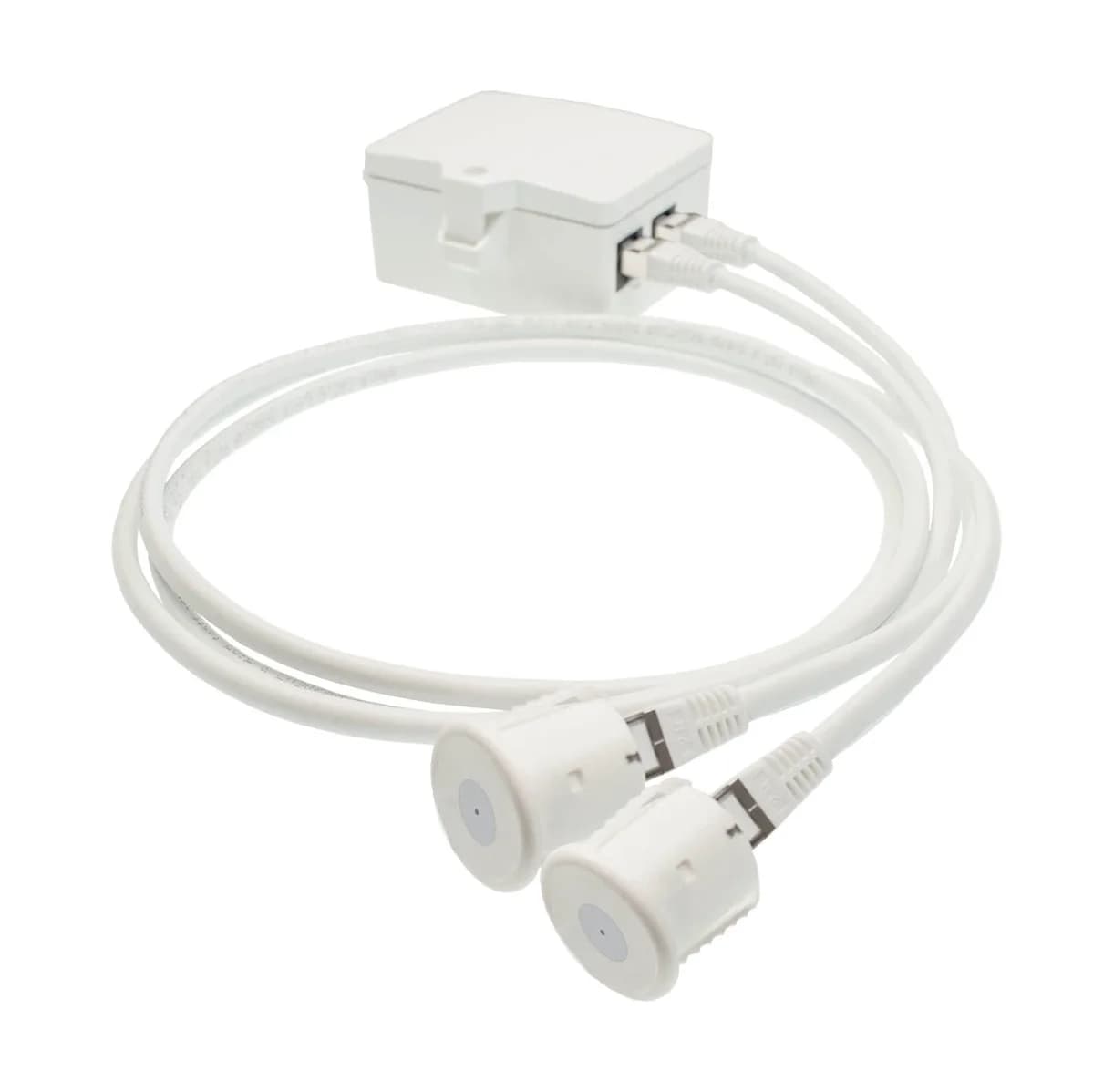

The RDF-IR is flush-mounted in the ceiling and measures an averaged surface temperature over a circular detection area, with an optical aperture of 80 ±5 degrees. It suits offices and workplaces. The remote sensor connects to the USE-M housing with a standard RJ45 patch cable, 1.5 m on these versions. The dual version takes two sensors and can give the mean, minimum or maximum of both, set in the USEapp. It reports over RS485 Modbus RTU.
