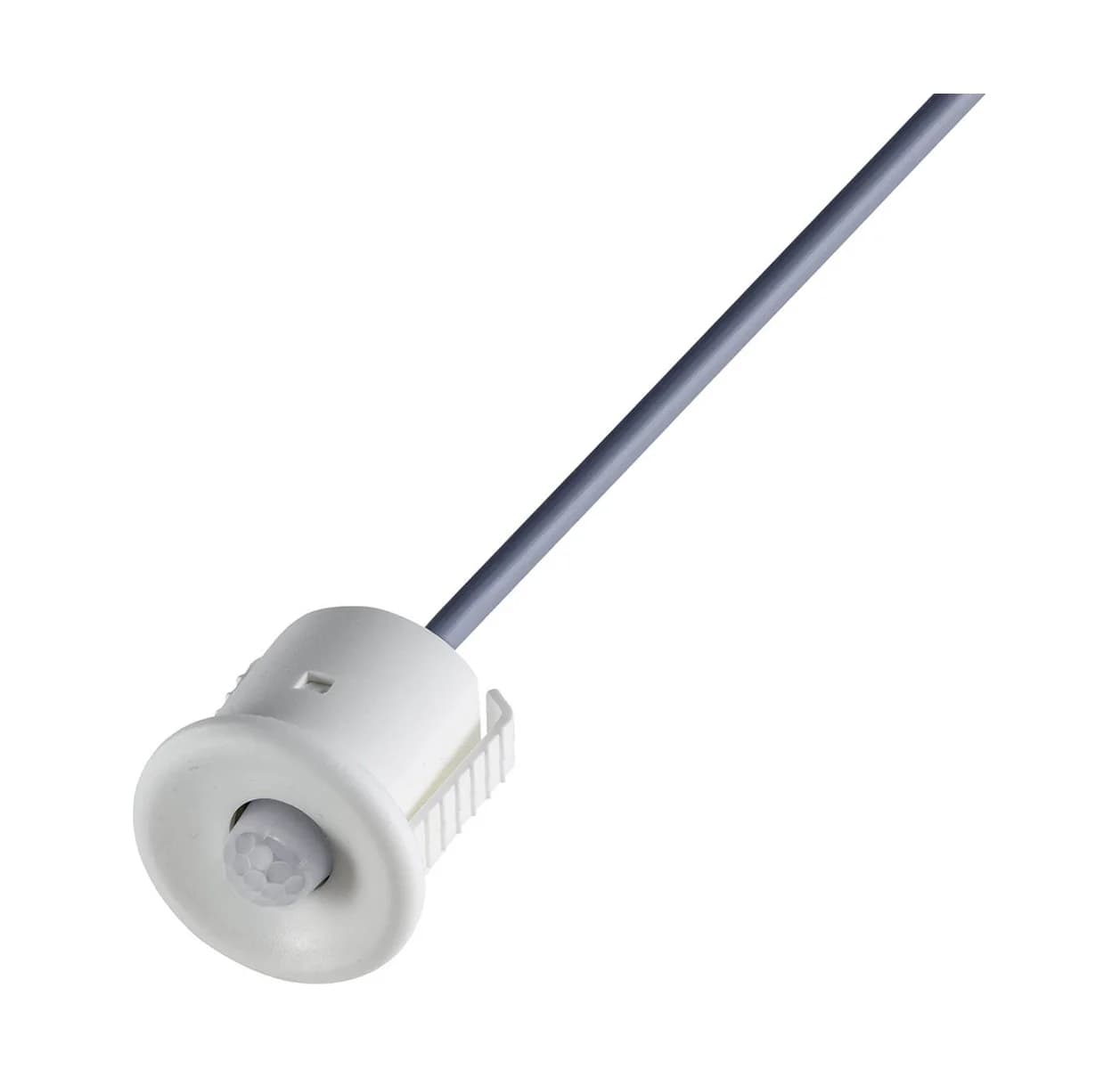

Thermokon · Room sensor
RDI active
Small ceiling motion detector with a floating relay output, in three detection ranges, for occupancy based lighting and temperature control.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number187060
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Overview
The RDI is a passive infrared motion sensor for ceiling mounting. Its 30 mm diameter lets it sit unobtrusively in a suspended ceiling. It can switch lighting by occupancy, or set back the temperature when a room is empty. Three versions have different detection areas. At 2.5 m mounting height the standard version covers about 7.1 x 5.3 m, the small range version 6 x 4.3 m and the spot version 1.7 x 1 m. A floating NO contact holds for 8 seconds after the last movement.
Specification12 values · 3 part numbers
Electrical
- Power supply
- 15 to 24 V DC ±10% or 24 V AC ±10%, SELV
- Power consumption
- Typ. 0.5 W (24 V DC), 1.1 VA (24 V AC)
Environment
- Operating temperature
- -20 to +50 °C
- Humidity
- Max. 85% rH, non-condensing
- Protection
- IP20 to EN 60529
Performance
- Output signal
- 1 x NO contact, 1 A, 24 V AC or DC, floating, 8 s follow-up
- Sensor element
- PIR passive infrared
- Measuring range
- Standard 110° x 93° (7.1 x 5.3 m at 2.5 m); small range 100° x 82° (6 x 4.3 m); spot 38° x 22° (1.7 x 1 m)
Physical
- Housing material
- ABS
- Colour
- Pure white
- Cable length
- 0.1 m
- Mounting
- Ceiling flush mount
From the manufacturer's datasheet for RDI active.
