Thermokon · Duct sensor

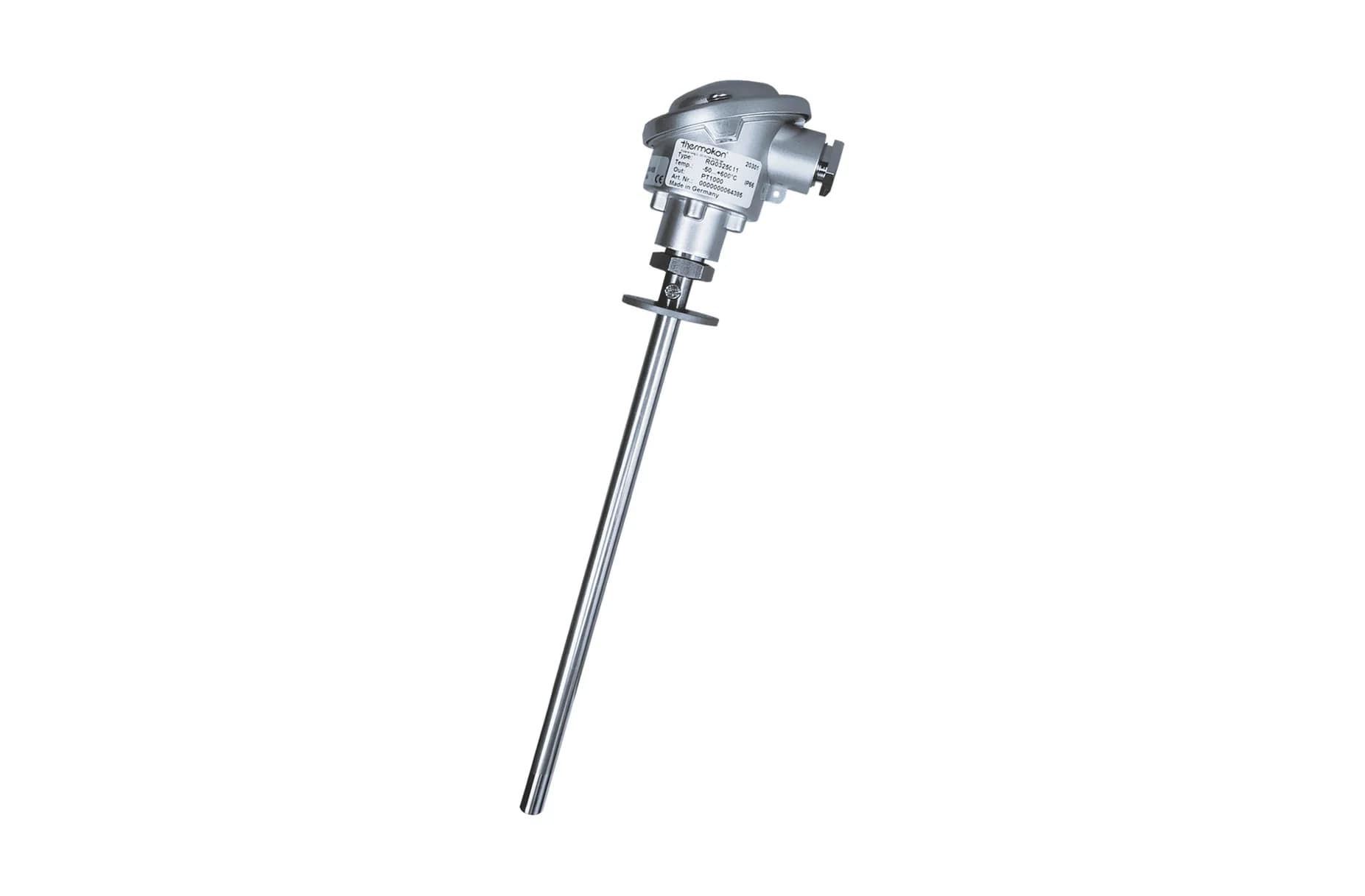

RG03 active

Name: RG03 active
Brand: Thermokon

High temperature duct and immersion sensor with a 0 to 10 V or 4 to 20 mA output, for gases and liquids up to 600 °C.

Availability and lead time confirmed on your quote

Range: Type 6

Length: 500 mm

Output: 0 to 10 V

Part number240789

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Connection: Cable entry M20, terminal block up to 1.5 mm²

Electrical

Power supply: 15 to 24 V DC +/-10%, 15 to 35 V DC, or 15 to 26 V AC, by type
Power consumption: Typ. 0.5 W to 1 W (24 V DC), 0.8 VA (24 V AC)

Environment

Protection: IP66 IP rating
Humidity: Max. 85% rH, short term condensation

Performance

Measuring range: 0 to +400 °C or 0 to +600 °C, by type
Output signal: 0 to 10 V (min. load 5 kΩ) or 4 to 20 mA (max. load 500 Ω), by type
Accuracy: +/-0.2 K or +/-0.1% of measured value (typ. at 21 °C)
Probe length: 236 mm or 486 mm installation length (250 mm or 500 mm probe)

Physical

Housing material: Aluminium, shape B
Dimensions: 78 x 70 mm housing
Weight: 400 g

Part numbers

From the manufacturer's datasheet for RG03 active.

Overview

The RG03 measures high temperatures in gaseous and liquid media, for example in supply and exhaust ducts, and connects to control and display systems. It has an 11 mm stainless steel probe and an aluminium housing, delivered with a mounting flange. The measuring range is 0 to 400 °C or 0 to 600 °C, with a 0 to 10 V (TRV) or 4 to 20 mA (TRA) output. Probe length is 250 mm or 500 mm. The type numbers 6 and 7 in the part name select between the two temperature ranges.
