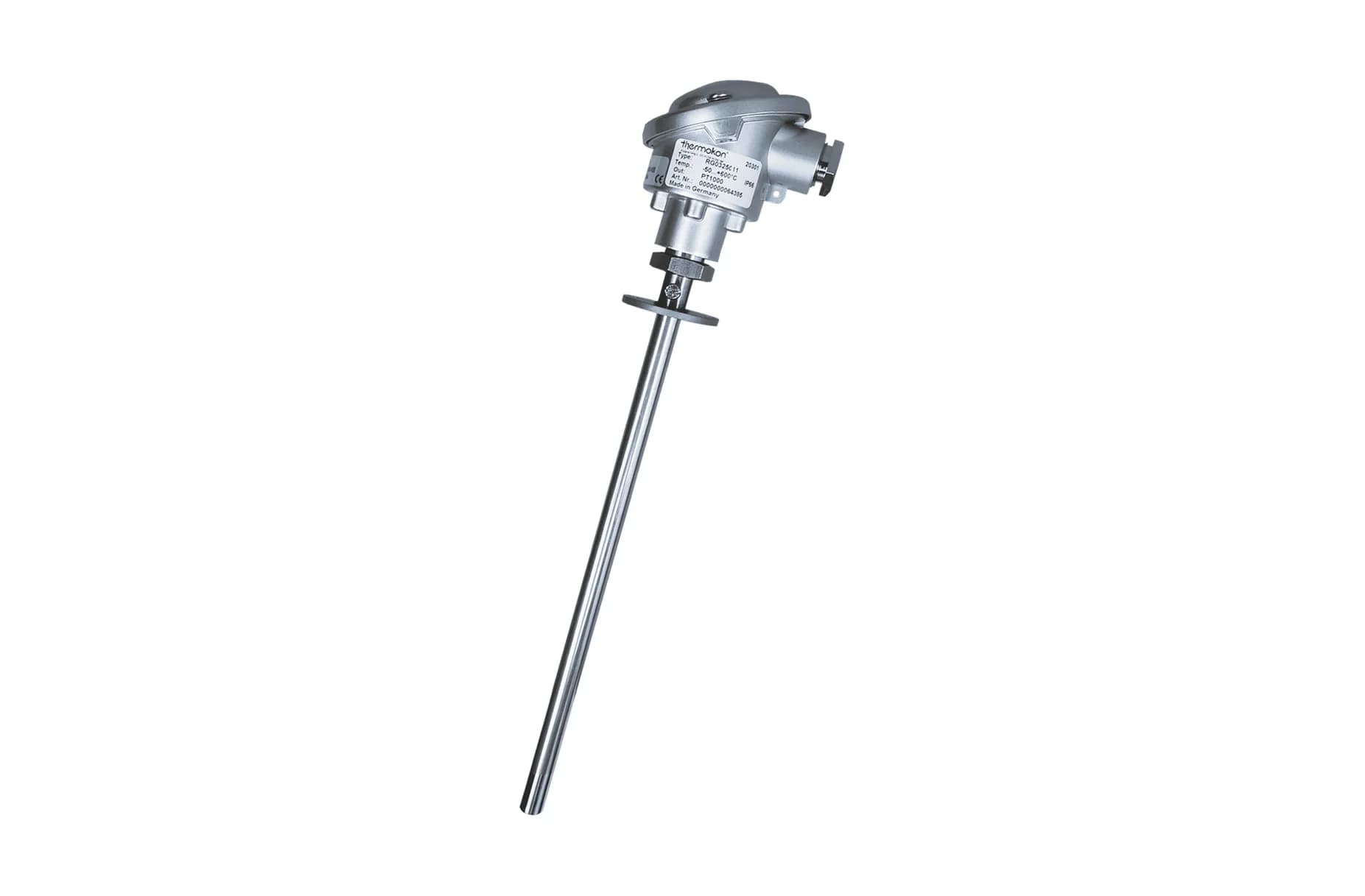

RG03 passive

Name: RG03 passive
Brand: Thermokon

High temperature duct and immersion sensor with a Pt100 or Pt1000 element, measuring up to +600 °C in air, gases and liquids.

Sign in for trade prices

Availability and lead time confirmed on your quote

Length: 250 mm

Version: Pt1000

Part number64385

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Connection: 2 wire, M20 cable entry for 8 mm cable, terminal block up to 1.5 mm²

Environment

Humidity: Maximum 85% rH, short term condensation
Protection: IP66 IP rating

Performance

Sensor element: Pt100 or Pt1000, DIN class B
Measuring range: 0 to +600 °C
Accuracy: +/-0.3 K at 0 °C
Probe length: 250 mm or 500 mm (installation length 236 mm or 486 mm)

Physical

Housing material: Aluminium, shape B
Mounting: Mounting flange included
Dimensions: Head 78 x 70 mm
Weight: 400 g

Part numbers

From the manufacturer's datasheet for RG03 passive.

Overview

The RG03 is a passive temperature sensor for high temperature duct or immersion use, for example in supply and exhaust ducts. It connects to a controller or display system that reads a Pt100 or Pt1000 element. The probe is a stainless steel tube of 11 mm diameter, in 250 mm or 500 mm lengths. A mounting flange is supplied. The aluminium head is IP66 and has an M20 cable entry and screw terminals.
