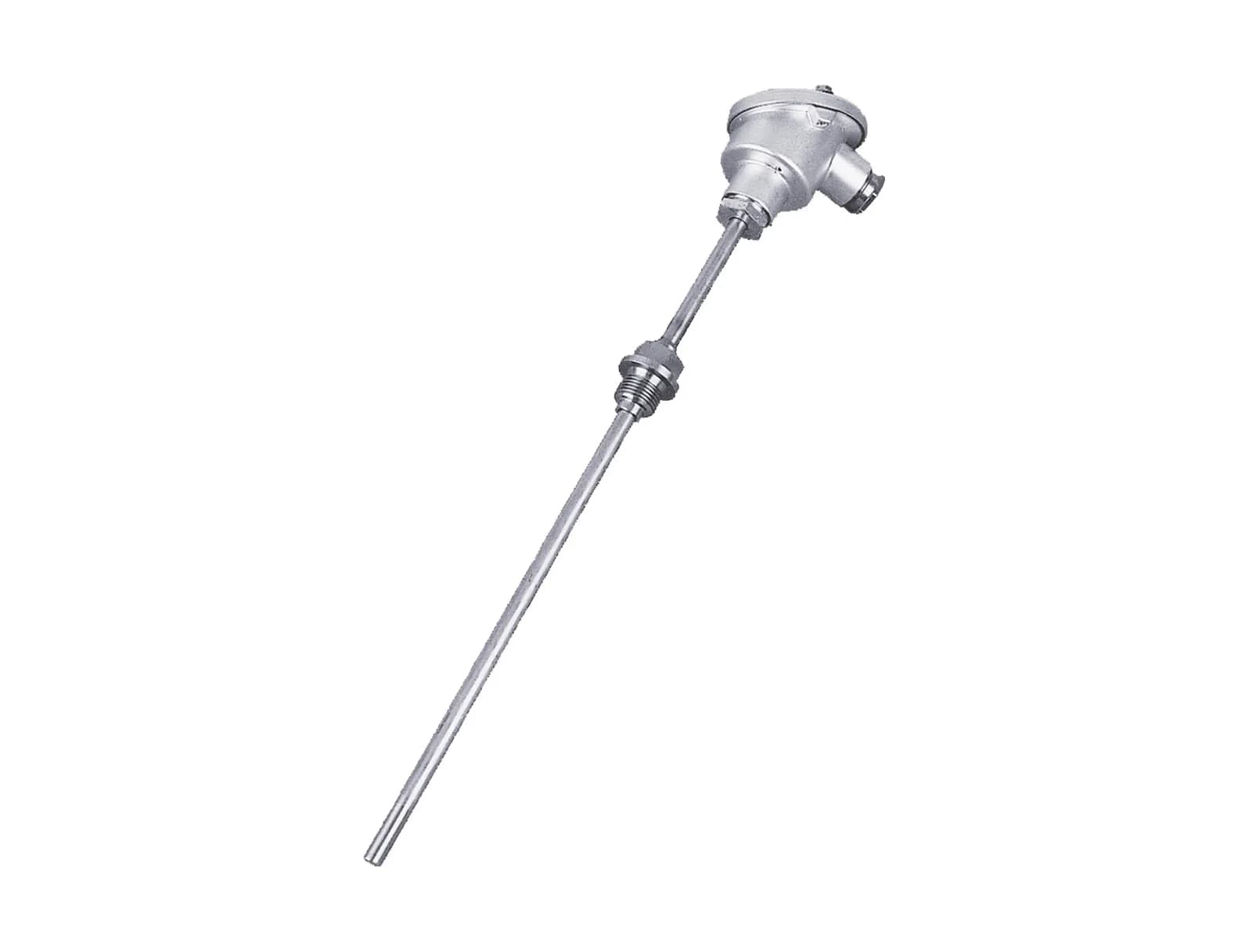

Thermokon · Immersion sensor

RGS03 passive

Name: RGS03 passive
Brand: Thermokon

High temperature immersion sensor with a built-in thermowell, measuring up to +600 °C, with a Pt100 or Pt1000 element and a 250 mm or 500 mm probe.

Availability and lead time confirmed on your quote

Length: 500 mm

Version: Pt1000

Part number79327

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Connection: 3 wire, M20 cable entry, terminal block max. 1.5 mm²

Environment

Protection: IP66 to EN 60529 IP rating
Humidity: Max. 85% rH, short term condensation

Performance

Sensor element: Pt100 or Pt1000, DIN class B, by part
Measuring range: 0 to +600 °C
Accuracy: ±0.3 K (typ. at 0 °C)
Probe length: 250 mm or 500 mm, by part

Physical

Housing material: Aluminium, shape B; probe stainless steel 1.4571, neck 1.4305
Dimensions: Head 78 x 70 mm, probe 9 mm diameter

Part numbers

From the manufacturer's datasheet for RGS03 passive.

Overview

The RGS03 is a passive immersion sensor with an integrated thermowell for measuring the temperature of liquids in HVAC applications. Its high temperature range also makes it suitable for exhaust systems. It connects to a higher level control system. The 9 mm stainless steel probe has a G1/2 thread and a 100 mm neck pipe, and can be used in aggressive media. The aluminium shape B enclosure is IP66, with an M20 cable entry and terminal block for 3 wire connection.
