Thermokon · Immersion sensor
SFK01 passive

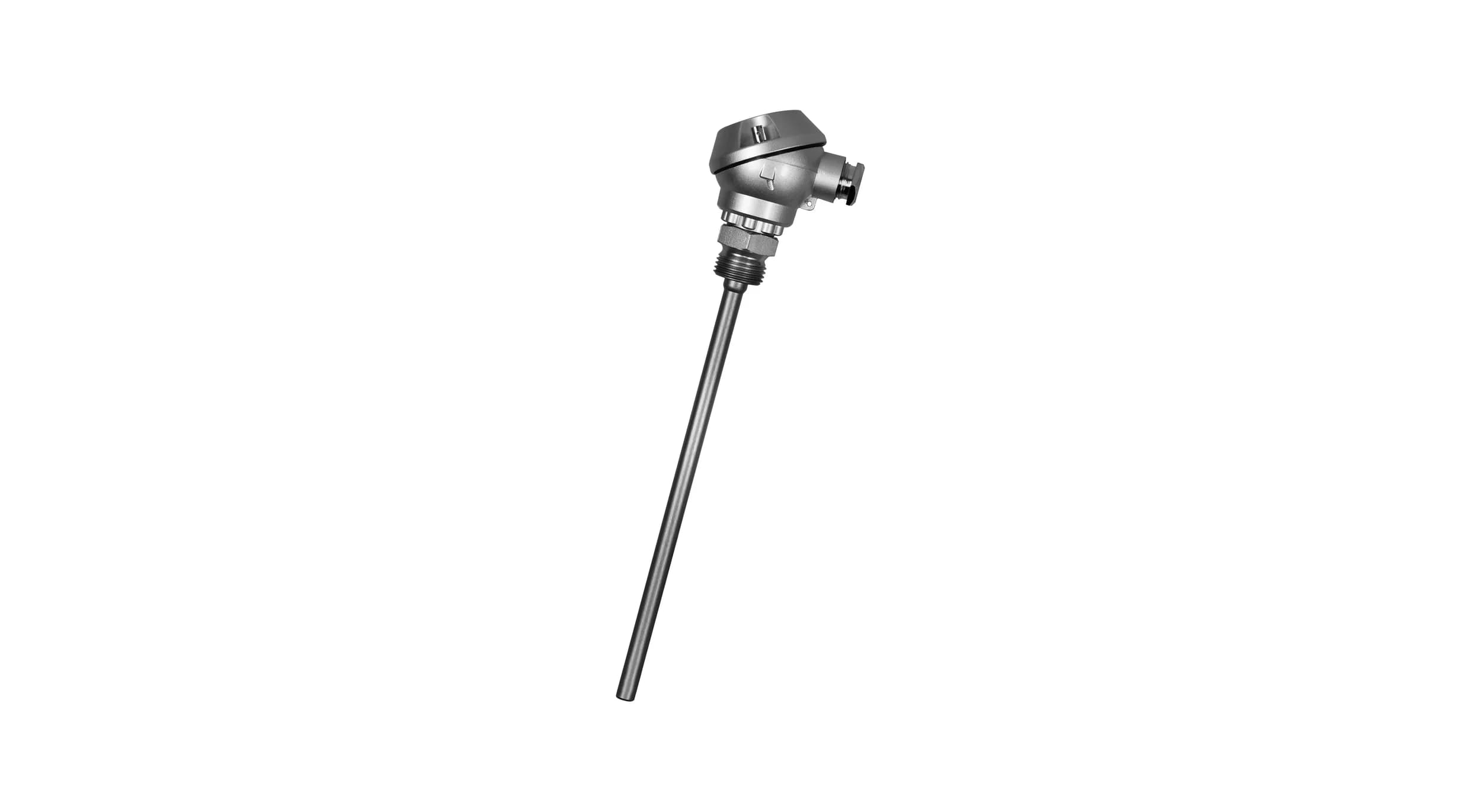

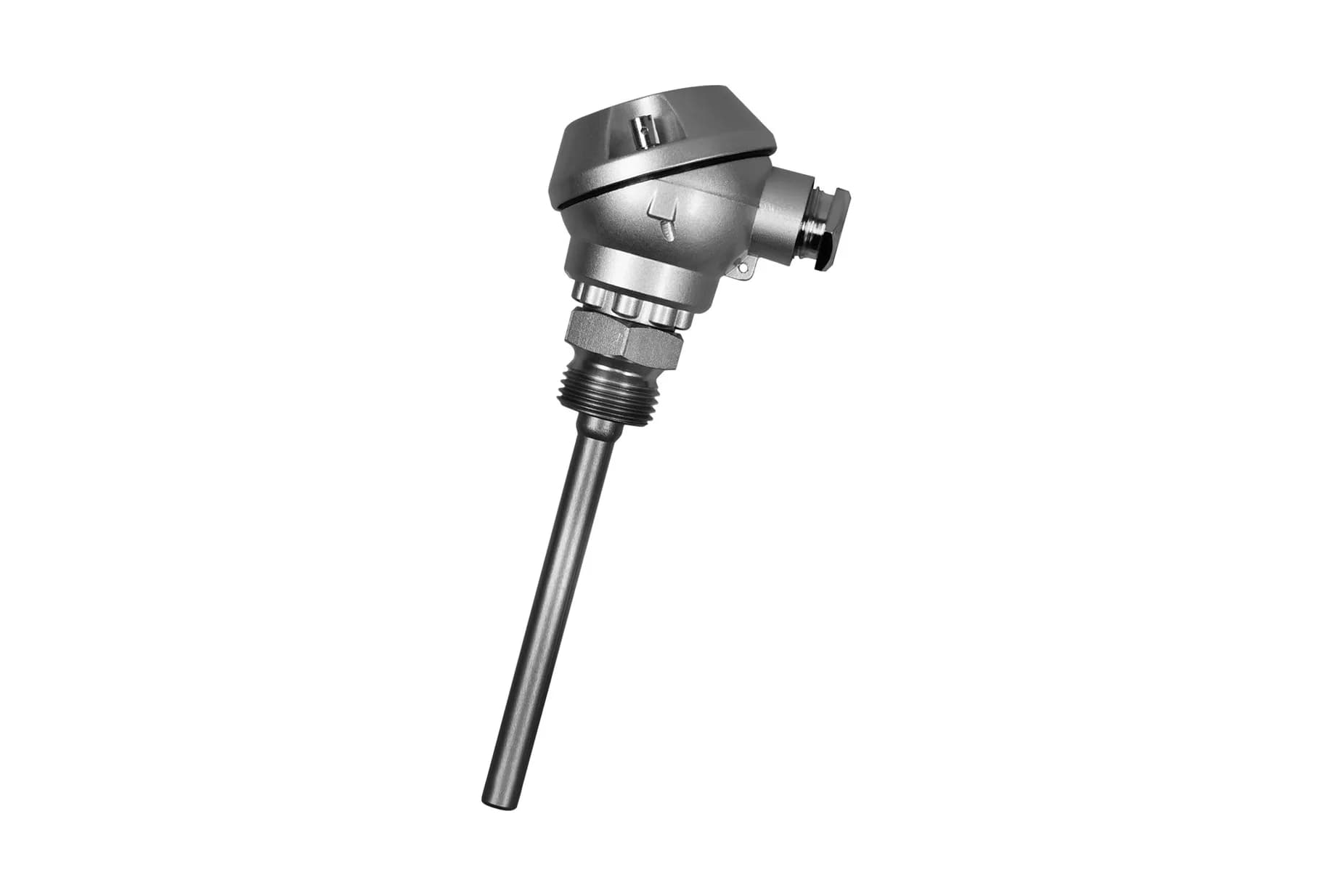

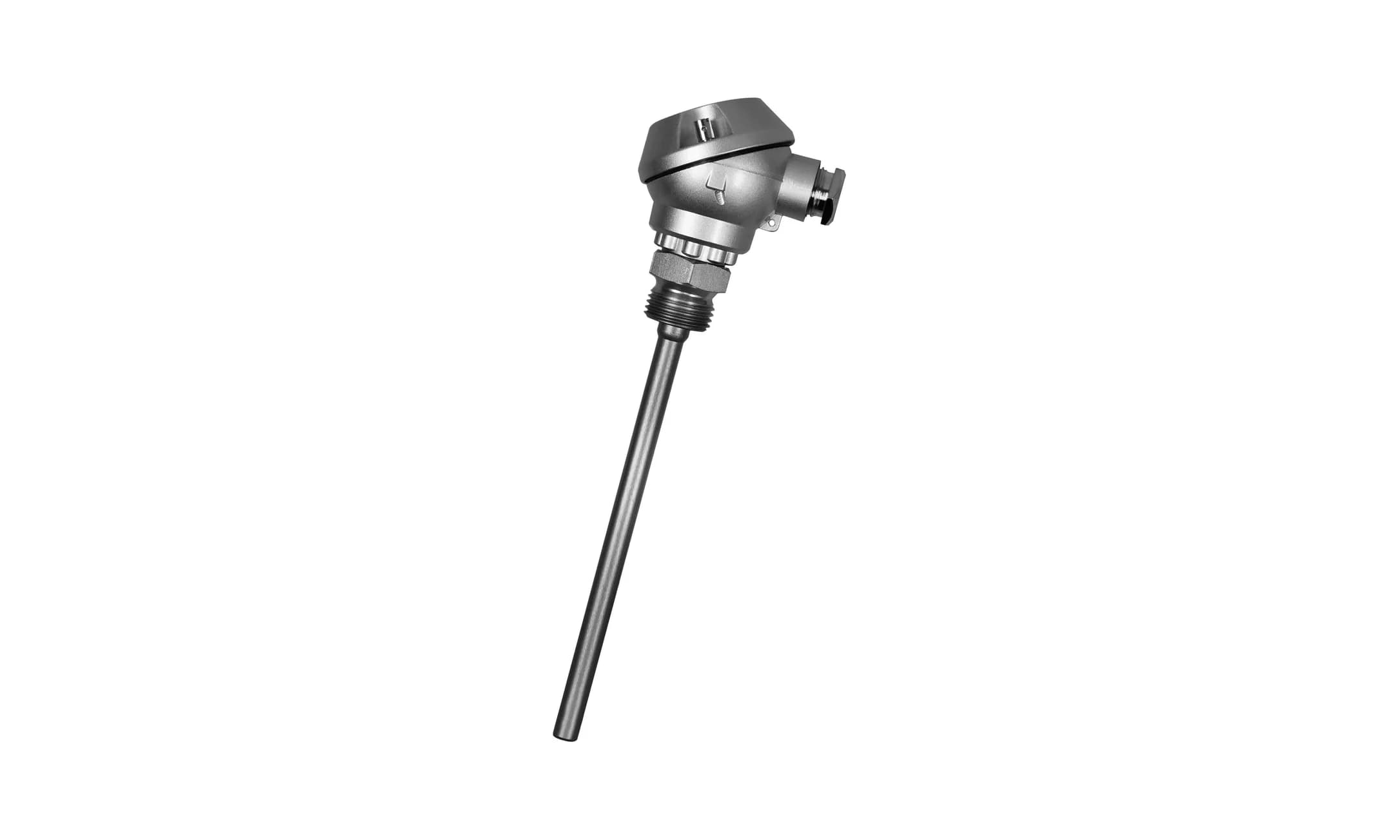

Screw-in immersion temperature sensor with a built-in thermowell for water pipes and tanks, with a choice of passive sensor element and length.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number27830
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Connection
- G1/2 inch, SW24; M16 cable entry for 8 mm cable, terminal block max. 1.5 mm²; 2, 3 or 4 wire
Environment
- Operating temperature
- Up to -80 to +260 °C, depending on sensor element
- Humidity
- max. 85% rH, short term condensation
- Protection
- IP65 IP rating
Performance
- Output signal
- Passive, resistance by sensor element
- Sensor element
- Pt100, Pt1000, Pt1000 1/3 DIN, NTC10k, Ni1000 or Ni1000TK5000, by version
- Measuring range
- Up to -80 to +260 °C, depending on sensor element
- Nominal pressure
- max. 40 bar
- Probe length
- 50, 100, 150, 200, 250 or 450 mm
Physical
- Housing material
- Aluminium, shape J; probe stainless steel V4A (1.4571)
- Dimensions
- 58 x 48 mm (length x width)
Part numbers
- 37662Pt100, 50 mm
- 27717Pt100, 100 mm
- 27724Pt100, 150 mm
- 27731Pt100, 200 mm
- 27748Pt100, 250 mm
- 27755Pt100, 450 mm
- 27823Pt1000, 50 mm
- 27830Pt1000, 100 mm
- 27847Pt1000, 150 mm
- 27854Pt1000, 200 mm
- 27861Pt1000, 250 mm
- 27878Pt1000, 450 mm
- 27885Pt1000 1/3 DIN, 50 mm
- 27892Pt1000 1/3 DIN, 100 mm
- 36740Pt1000 1/3 DIN, 150 mm
- 36757Pt1000 1/3 DIN, 200 mm
- 36764Pt1000 1/3 DIN, 250 mm
- 36771Pt1000 1/3 DIN, 450 mm
- 45421NTC10k, 50 mm
- 45438NTC10k, 100 mm
- 45445NTC10k, 150 mm
- 45452NTC10k, 200 mm
- 45469NTC10k, 250 mm
- 45476NTC10k, 450 mm
- 36788Ni1000, 50 mm
- 36795Ni1000, 100 mm
- 36801Ni1000, 150 mm
- 36818Ni1000, 200 mm
- 36825Ni1000, 250 mm
- 45292Ni1000, 450 mm
- 45308Ni1000TK5000, 50 mm
- 45315Ni1000TK5000, 100 mm
- 45322Ni1000TK5000, 150 mm
- 45339Ni1000TK5000, 200 mm
- 45346Ni1000TK5000, 250 mm
- 45353Ni1000TK5000, 450 mm
From the manufacturer's datasheet for SFK01 passive.
Overview
The SFK01 measures the temperature of liquids in water lines and tanks. The thermowell is built in, so the sensor screws straight into a G1/2 inch thread and can be changed without draining the system. The passive sensor element is chosen by code: Pt100, Pt1000, Pt1000 1/3 DIN, NTC10k, Ni1000 or Ni1000TK5000. The probe is available in lengths of 50, 100, 150, 200, 250 and 450 mm, in an IP65 aluminium housing.
