Thermokon · Immersion sensor
SFK02+ active

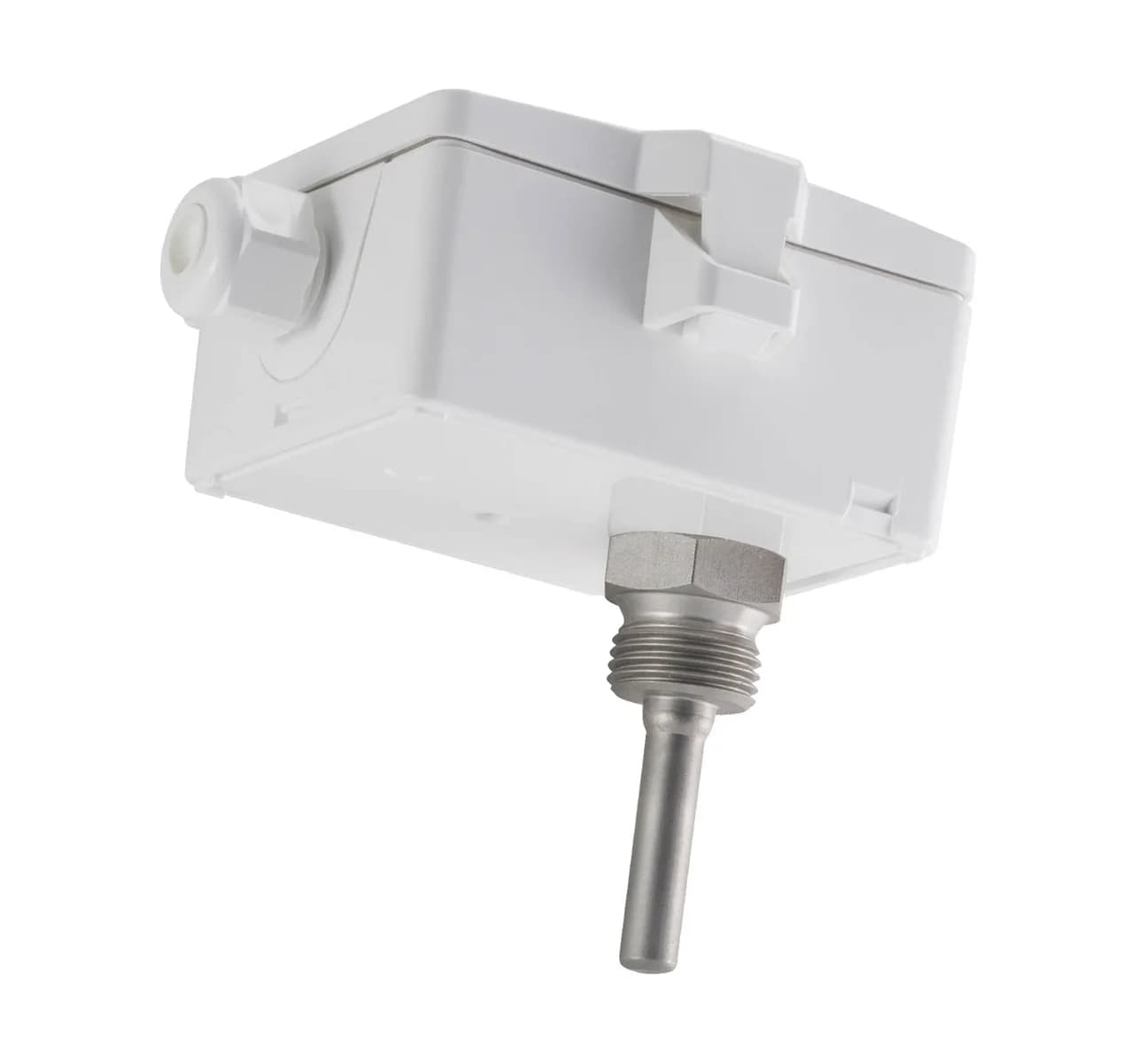

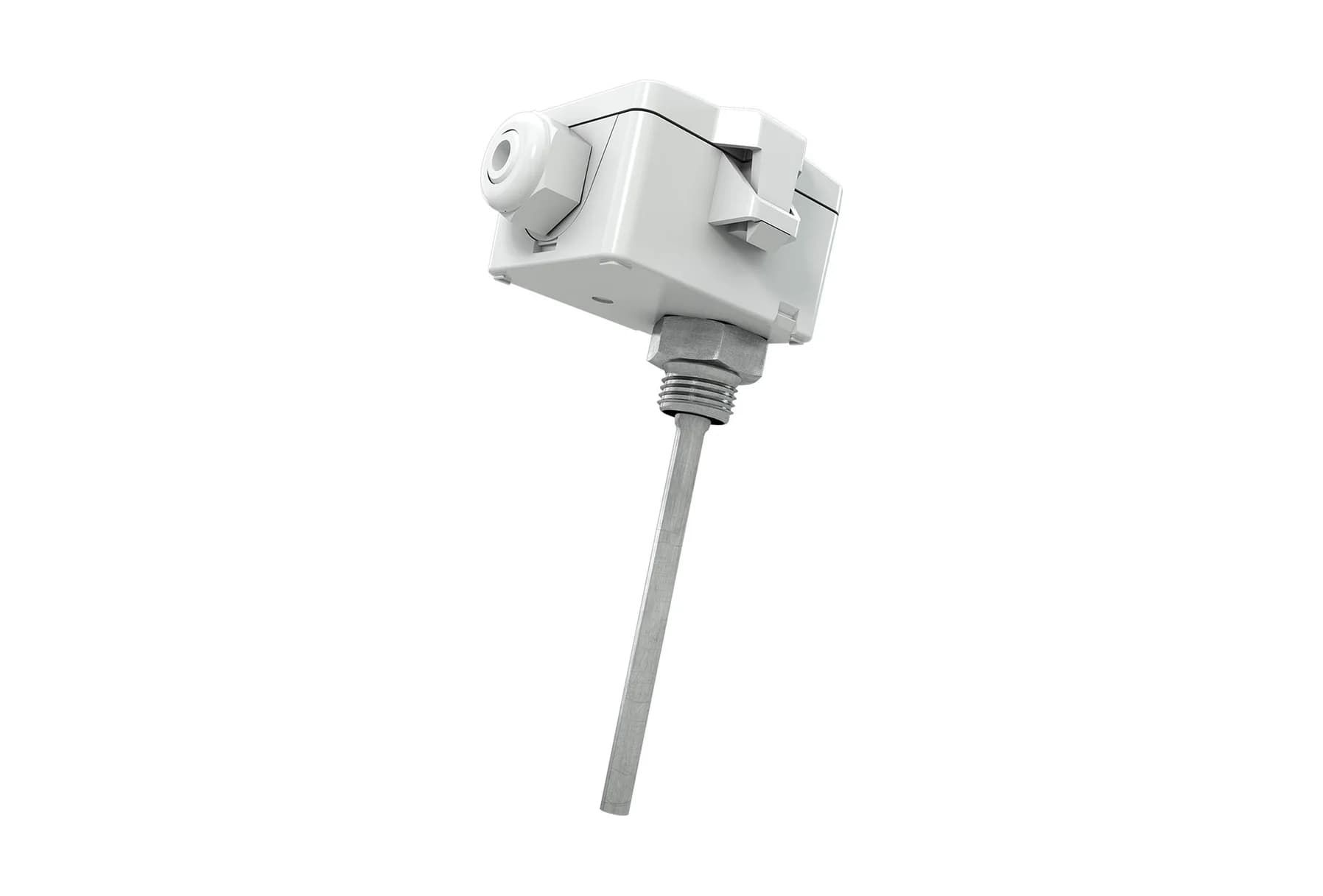

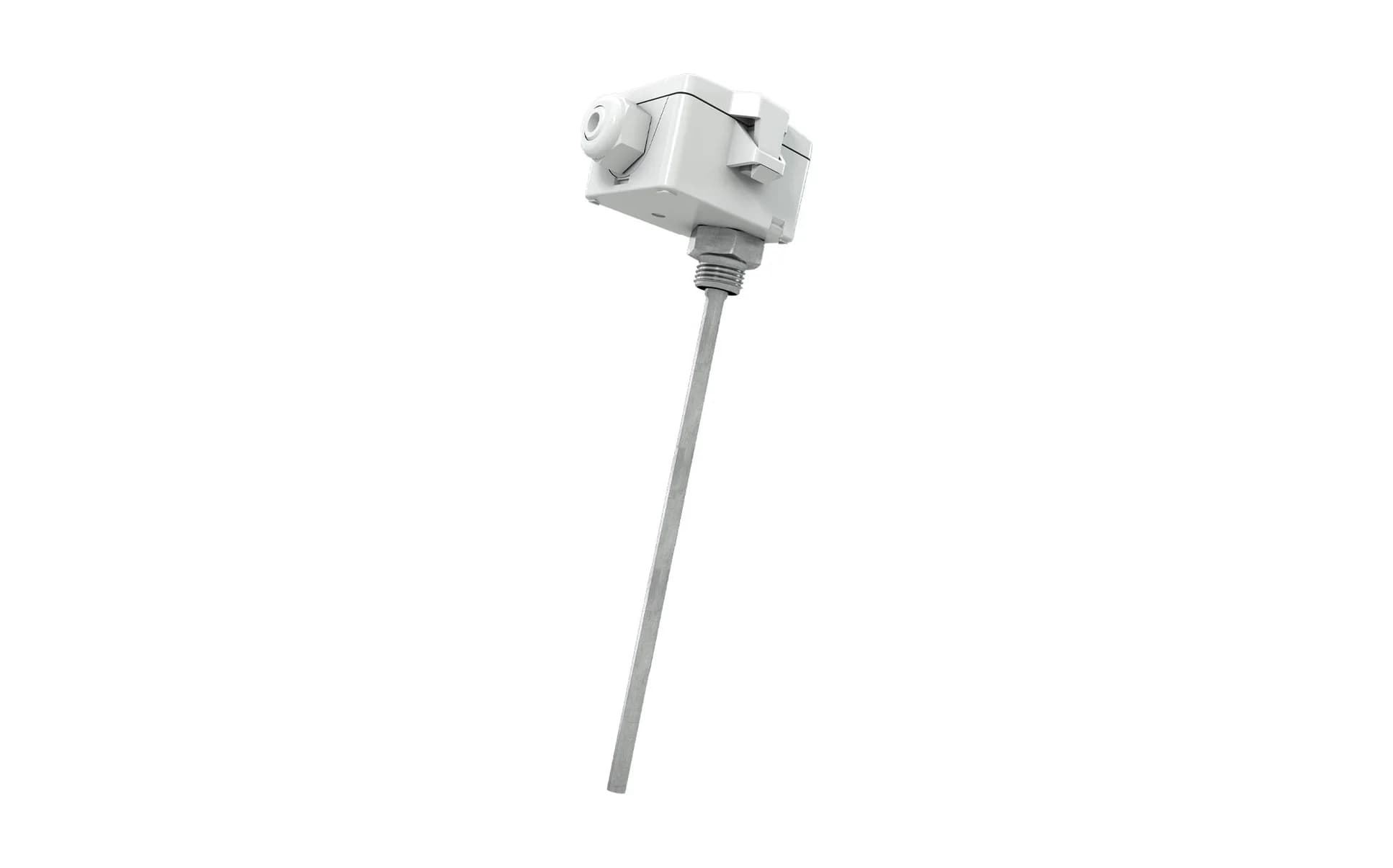

Immersion temperature sensor for gases and liquids with a selectable range, voltage or 4 to 20 mA output, optional relay and LCD, in six probe lengths.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number622608
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Electrical
- Power supply
- 15 to 24 V DC or 24 V AC for basic versions; 15 to 35 V DC or 19 to 29 V AC for LCD and relay versions
- Power consumption
- Basic max. 0.5 W (24 V DC); LCD and relay versions max. 2.5 W (24 V DC)
Environment
- Operating temperature
- -30 to +70 °C enclosure
- Protection
- IP65 to EN 60529 IP rating
Performance
- Output signal
- 0 to 10 V or 0 to 5 V (min. load 5 kΩ), or 4 to 20 mA (max. load 500 Ω), by part
- Measuring range
- -80 to +260 °C at the probe; output scaling selectable, default 0 to +160 or -20 to +80 °C
- Accuracy
- ±0.5 K (typ. at 21 °C) in default range
- Probe length
- 50, 100, 150, 200, 250 or 450 mm, by part
- Outputs
- 2 x floating NO contact, 24 V AC or DC, 3 A (relay versions)
Physical
- Housing material
- PC, USE-S or USE-M enclosure; probe stainless steel 1.4571, 8 mm, G1/2
- Colour
- Pure white with transparent cover
Part numbers
- 6225920 to 10 V or 0 to 5 V, 50 mm probe, no display
- 6226080 to 10 V or 0 to 5 V, 100 mm probe, no display
- 6226150 to 10 V or 0 to 5 V, 150 mm probe, no display
- 6226220 to 10 V or 0 to 5 V, 200 mm probe, no display
- 6226390 to 10 V or 0 to 5 V, 250 mm probe, no display
- 6226460 to 10 V or 0 to 5 V, 450 mm probe, no display
- 6226534 to 20 mA, 50 mm probe, no display
- 6226604 to 20 mA, 100 mm probe, no display
- 6226774 to 20 mA, 150 mm probe, no display
- 6226844 to 20 mA, 200 mm probe, no display
- 6226914 to 20 mA, 250 mm probe, no display
- 6227074 to 20 mA, 450 mm probe, no display
- 6655680 to 10 V or 0 to 5 V and relay, 50 mm probe, no display
- 6655750 to 10 V or 0 to 5 V and relay, 100 mm probe, no display
- 6655820 to 10 V or 0 to 5 V and relay, 150 mm probe, no display
- 6655990 to 10 V or 0 to 5 V and relay, 200 mm probe, no display
- 6656050 to 10 V or 0 to 5 V and relay, 250 mm probe, no display
- 6656120 to 10 V or 0 to 5 V and relay, 450 mm probe, no display
- 6654760 to 10 V or 0 to 5 V, 50 mm probe, LCD
- 6654830 to 10 V or 0 to 5 V, 100 mm probe, LCD
- 6654900 to 10 V or 0 to 5 V, 150 mm probe, LCD
- 6655060 to 10 V or 0 to 5 V, 200 mm probe, LCD
- 6655130 to 10 V or 0 to 5 V, 250 mm probe, LCD
- 6655200 to 10 V or 0 to 5 V, 450 mm probe, LCD
- 6656814 to 20 mA, 50 mm probe, LCD
- 6656984 to 20 mA, 100 mm probe, LCD
- 6657044 to 20 mA, 150 mm probe, LCD
- 6657114 to 20 mA, 200 mm probe, LCD
- 6657284 to 20 mA, 250 mm probe, LCD
- 6657354 to 20 mA, 450 mm probe, LCD
- 6656290 to 10 V or 0 to 5 V and relay, 50 mm probe, LCD
- 6656360 to 10 V or 0 to 5 V and relay, 100 mm probe, LCD
- 6656430 to 10 V or 0 to 5 V and relay, 150 mm probe, LCD
- 6656500 to 10 V or 0 to 5 V and relay, 200 mm probe, LCD
- 6656670 to 10 V or 0 to 5 V and relay, 250 mm probe, LCD
- 6656740 to 10 V or 0 to 5 V and relay, 450 mm probe, LCD
From the manufacturer's datasheet for SFK02+ active.
Overview
The SFK02+ is an immersion sensor for measuring the temperature of gases and liquids in HVAC systems. It can be screwed into a bonded pocket (available as an accessory), and the measuring insert can be changed without removing the whole sensor. The SFKH02+ type with a 70 mm neck pipe is for insulated installations. The output range is selectable from several presets. Versions have a 0 to 10 V or 0 to 5 V output, a 4 to 20 mA output, or a voltage output plus a relay for 2 point or 2 stage 2 point control. LCD versions show the value with a traffic light function.
