Thermokon · Immersion sensor

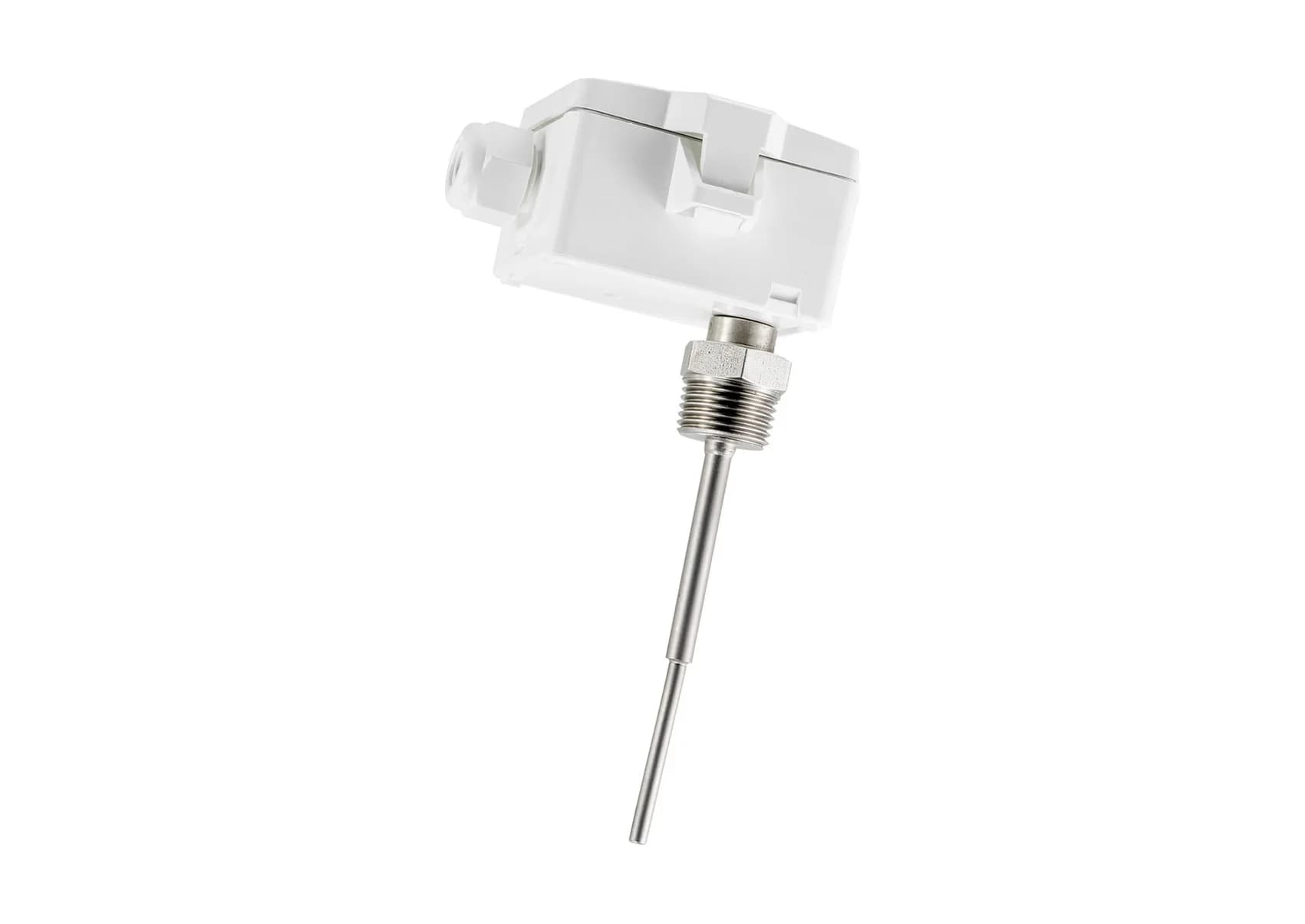

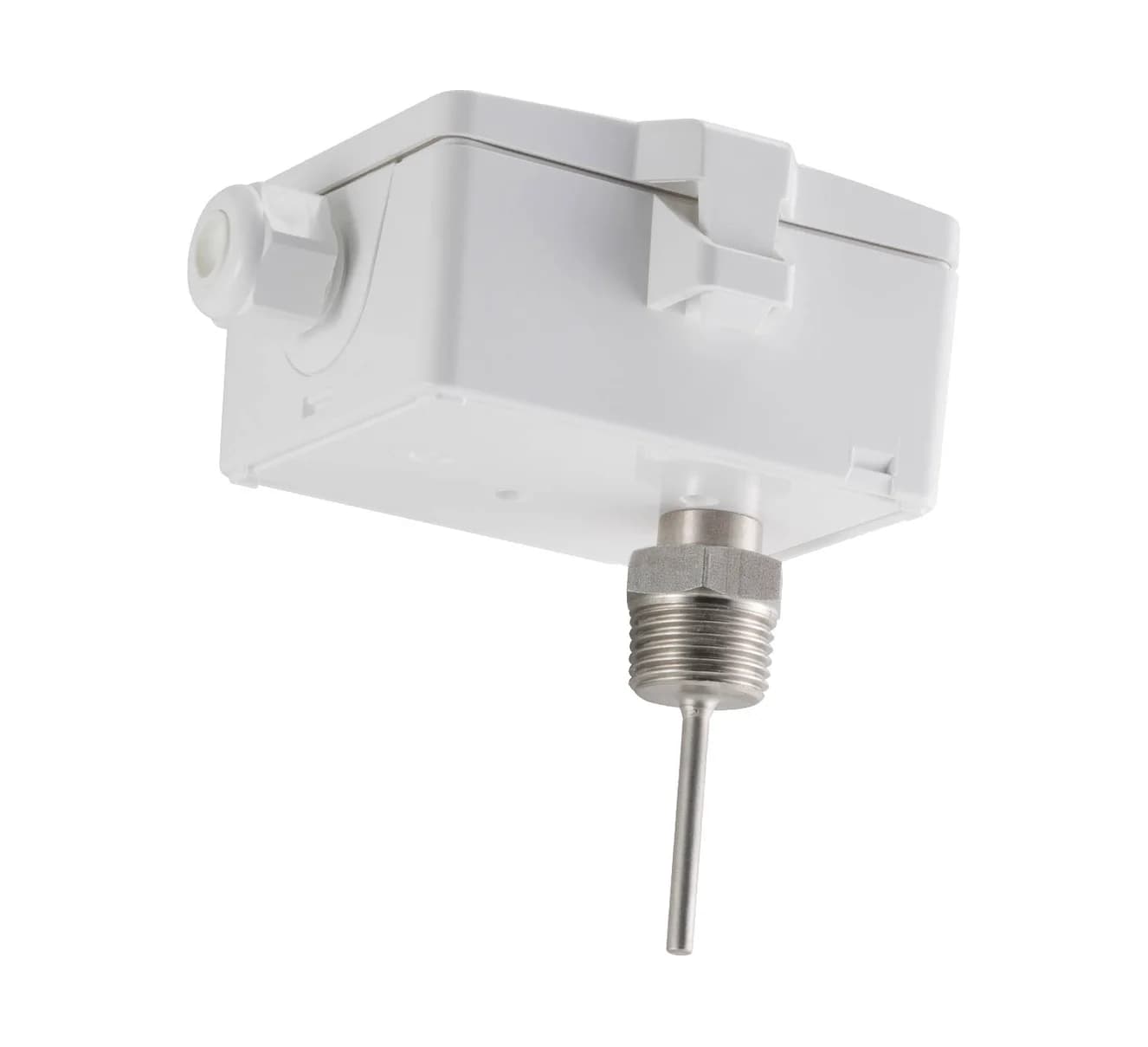

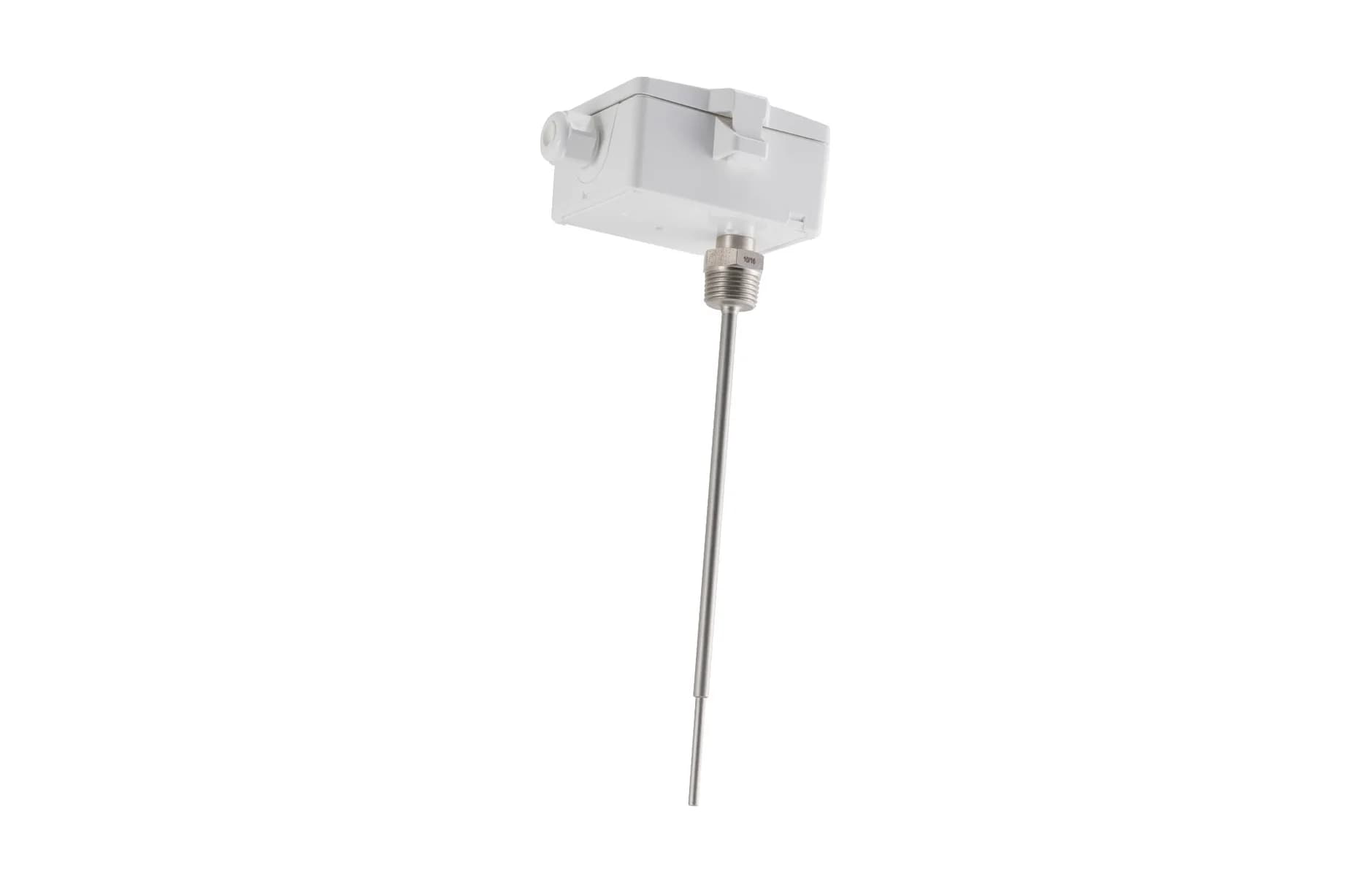

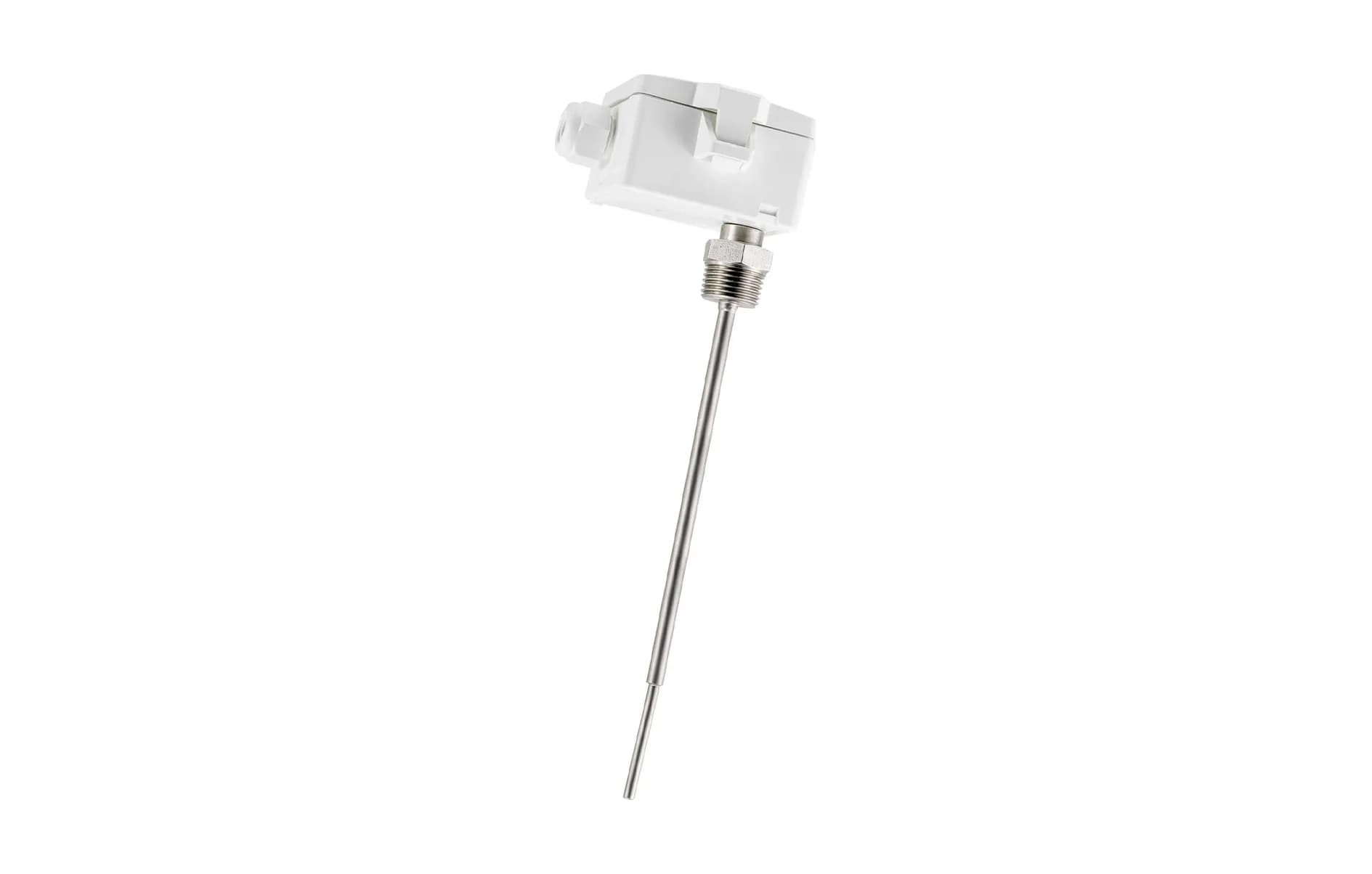

SFK02+ FR active
Screw-in temperature sensor with a fast response 4 mm probe tip, 0 to 10 V or 4 to 20 mA output and optional relay or LCD.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number645881
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Interface
- Active 0 to 10 V, 0 to 5 V or 4 to 20 mA; relay contacts on relay versions
- Connection
- G1/2 inch process thread; removable M20 or M25 cable entry, plug-in terminals up to 2.5 mm²
Electrical
- Power supply
- 15 to 35 V DC SELV or 19 to 29 V AC SELV
- Power consumption
- Up to 2.5 W at 24 V DC
Environment
- Humidity
- Maximum 85% rH, short term condensation
- Protection
- IP65 IP rating
Performance
- Output signal
- 0 to 10 V or 0 to 5 V, minimum load 10 kOhm; 4 to 20 mA, maximum load 500 Ohm
- Measuring range
- -50 to +160 °C
- Accuracy
- +/-0.5 K at 21 °C within the default range
- Probe length
- 50, 100 or 200 mm
Physical
- Housing material
- USE-S or USE-M enclosure, PC; probe stainless steel V4A
- Colour
- Pure white, transparent cover
Part numbers
- 6556200 to 10 V, 50 mm probe
- 6458810 to 10 V, 100 mm probe
- 6556370 to 10 V, 200 mm probe
- 6556064 to 20 mA, 50 mm probe
- 6458674 to 20 mA, 100 mm probe
- 6556134 to 20 mA, 200 mm probe
- 6661690 to 10 V and relay, 50 mm probe
- 6661760 to 10 V and relay, 100 mm probe
- 6661830 to 10 V and relay, 200 mm probe
- 666091LCD, 0 to 10 V, 50 mm probe
- 666107LCD, 0 to 10 V, 100 mm probe
- 666114LCD, 0 to 10 V, 200 mm probe
- 666121LCD, 4 to 20 mA, 50 mm probe
- 666138LCD, 4 to 20 mA, 100 mm probe
- 666145LCD, 4 to 20 mA, 200 mm probe
- 666190LCD, 0 to 10 V and relay, 50 mm probe
- 666206LCD, 0 to 10 V and relay, 100 mm probe
- 666213LCD, 0 to 10 V and relay, 200 mm probe
From the manufacturer's datasheet for SFK02+ FR active.
Overview
The SFK02+ FR is an immersion sensor with an integrated thermowell and a 4 mm tip for quick response. It measures liquids and gases in HVAC work and screws into a G1/2 inch fitting. Probe lengths are 50, 100 and 200 mm. Output is 0 to 10 V (TRV) or 4 to 20 mA (TRA) over a selectable range up to -50 to +250 °C scaling. Relay versions add two floating contacts for 2-point or 2-stage control, and LCD versions add a colour changing display with a traffic light function.
