Thermokon · Immersion sensor · Modbus
SFK02+ FR RS485 Modbus
Fast response immersion temperature sensor with a 4 mm pocket in 50, 100 or 200 mm lengths, RS485 Modbus and analogue outputs, optional LCD.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number666237
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Overview

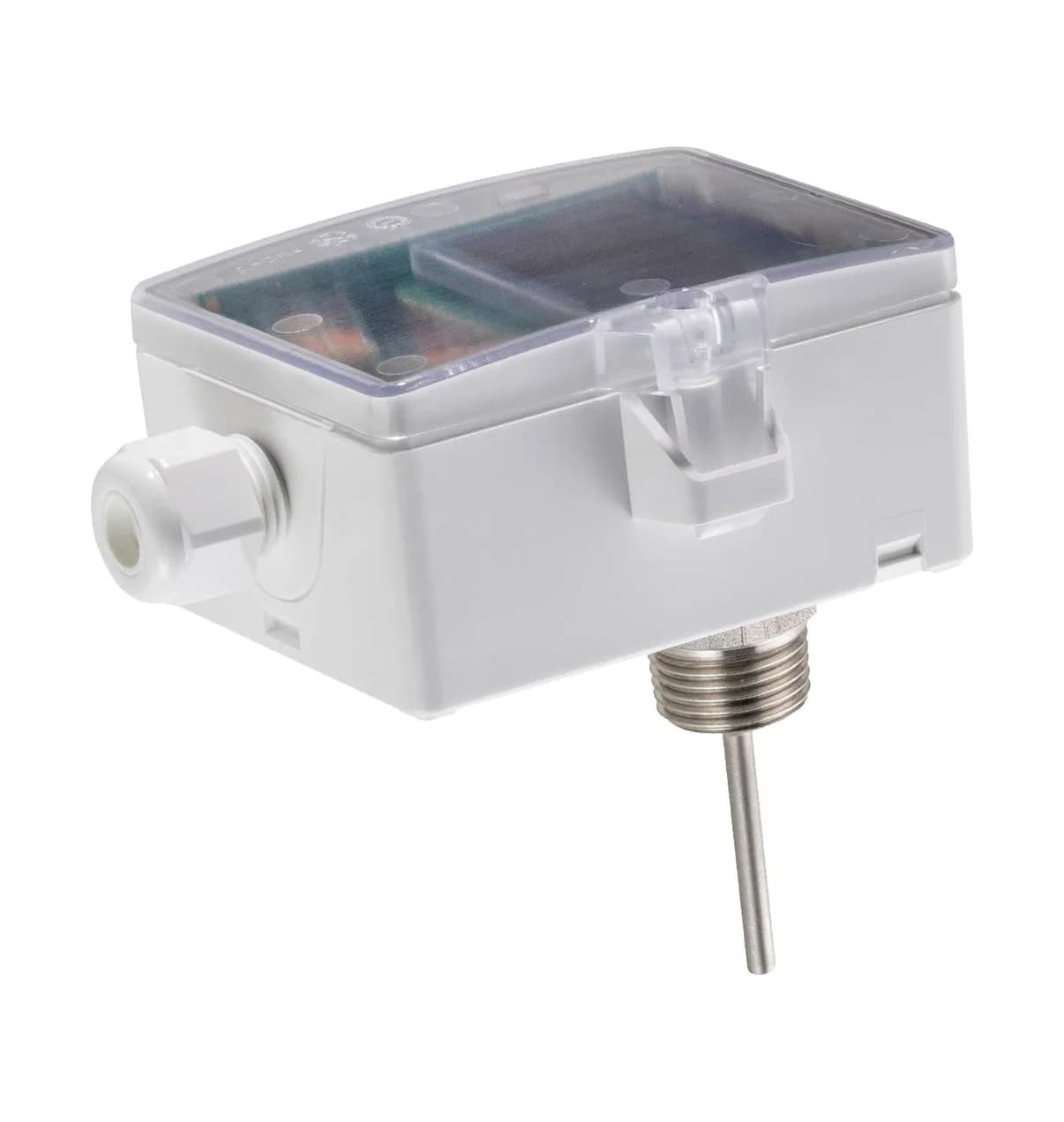

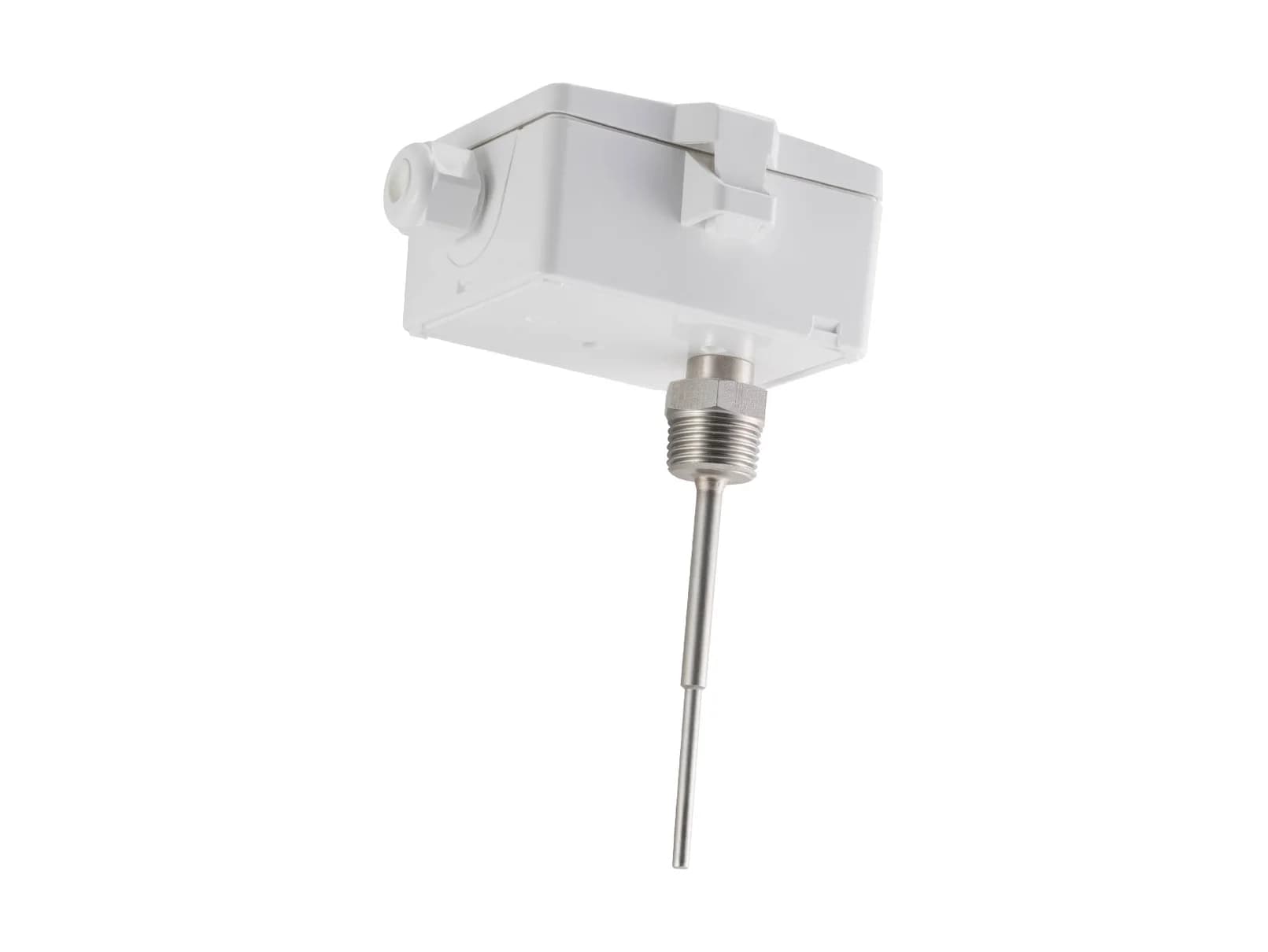

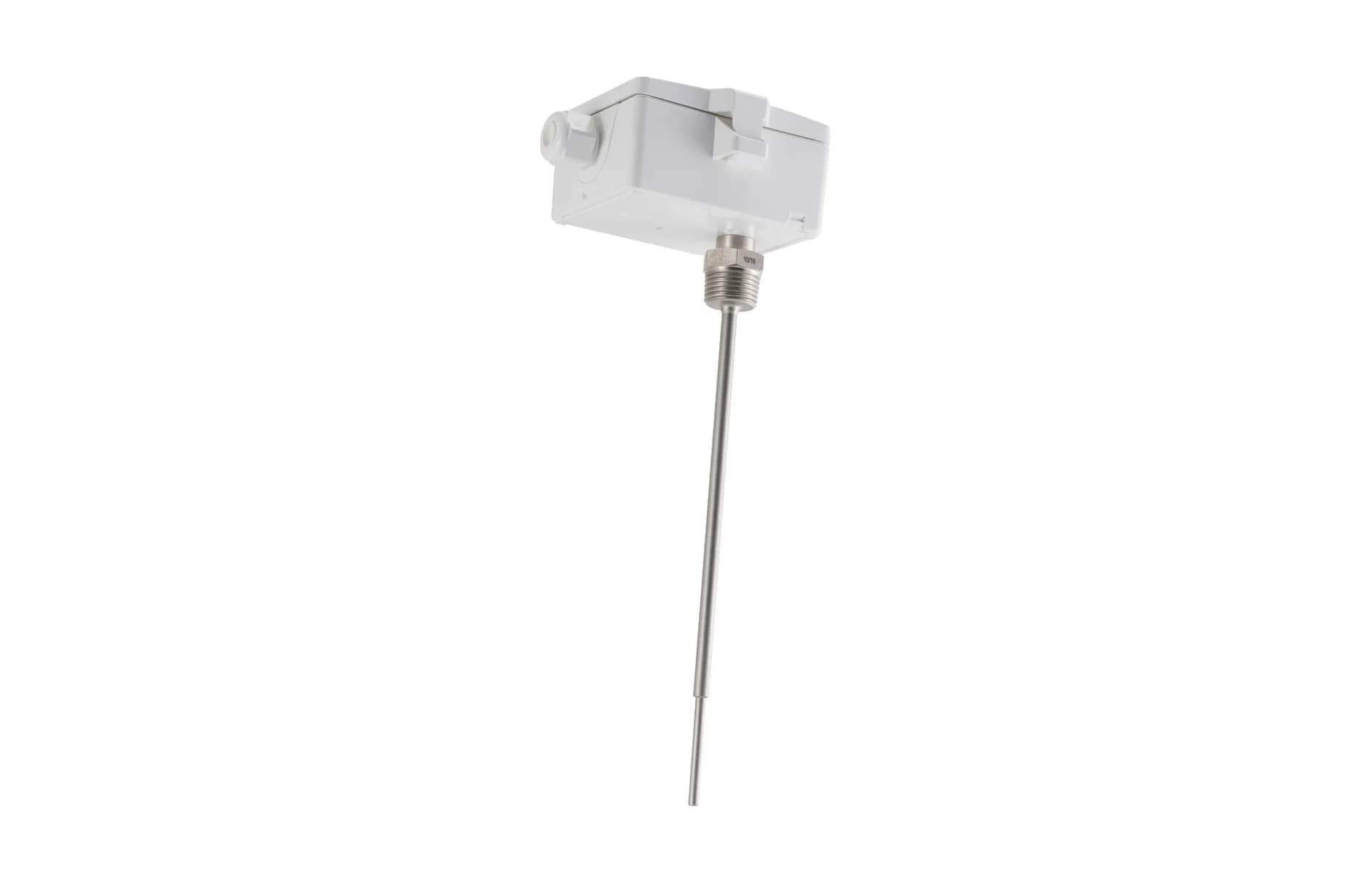

The SFK02+ FR is an immersion sensor with an integrated thermowell for gases and liquids in HVAC applications. The 4 mm pocket tip gives a fast response. It reports over RS485 Modbus RTU and has a 0 to 10 V or 0 to 5 V analogue output. The probe is stainless steel with a G1/2 inch thread and comes in 50, 100 and 200 mm lengths. The LCD versions add a colour changing display with configurable thresholds. Set up is by USEapp, uConfig, jumper or DIP switches.
Specification14 values · 6 part numbers
Communication
- Protocol
- Modbus RTU, RS485, 9600 to 57600 baud
- Interface
- RS485 Modbus and analogue
- Connection
- Plug-in terminal, max. 2.5 mm², bus max. 1.5 mm², M25 cable entry
Electrical
- Power supply
- 15 to 35 V DC or 19 to 29 V AC (SELV)
- Power consumption
- Max. 2.5 W (24 V DC), 4.3 VA (24 V AC)
Environment
- Operating temperature
- -50 to +160 °C at the probe, -20 to +70 °C enclosure
- Protection
- IP65
Performance
- Output signal
- 0 to 10 V or 0 to 5 V, min. load 10 kΩ
- Measuring range
- Output scaling 0 to +160 °C or -20 to +80 °C by default, selectable from 8 ranges
- Accuracy
- ±0.5 K (typ. at 21 °C), offset adjustable by app or uConfig
- Probe length
- 50, 100 or 200 mm
Physical
- Housing material
- PC, USE-M housing; stainless steel probe 1.4571
- Colour
- Pure white, transparent cover
- Mounting
- G1/2 inch thread
Part numbers
From the manufacturer's datasheet for SFK02+ FR RS485 Modbus.
