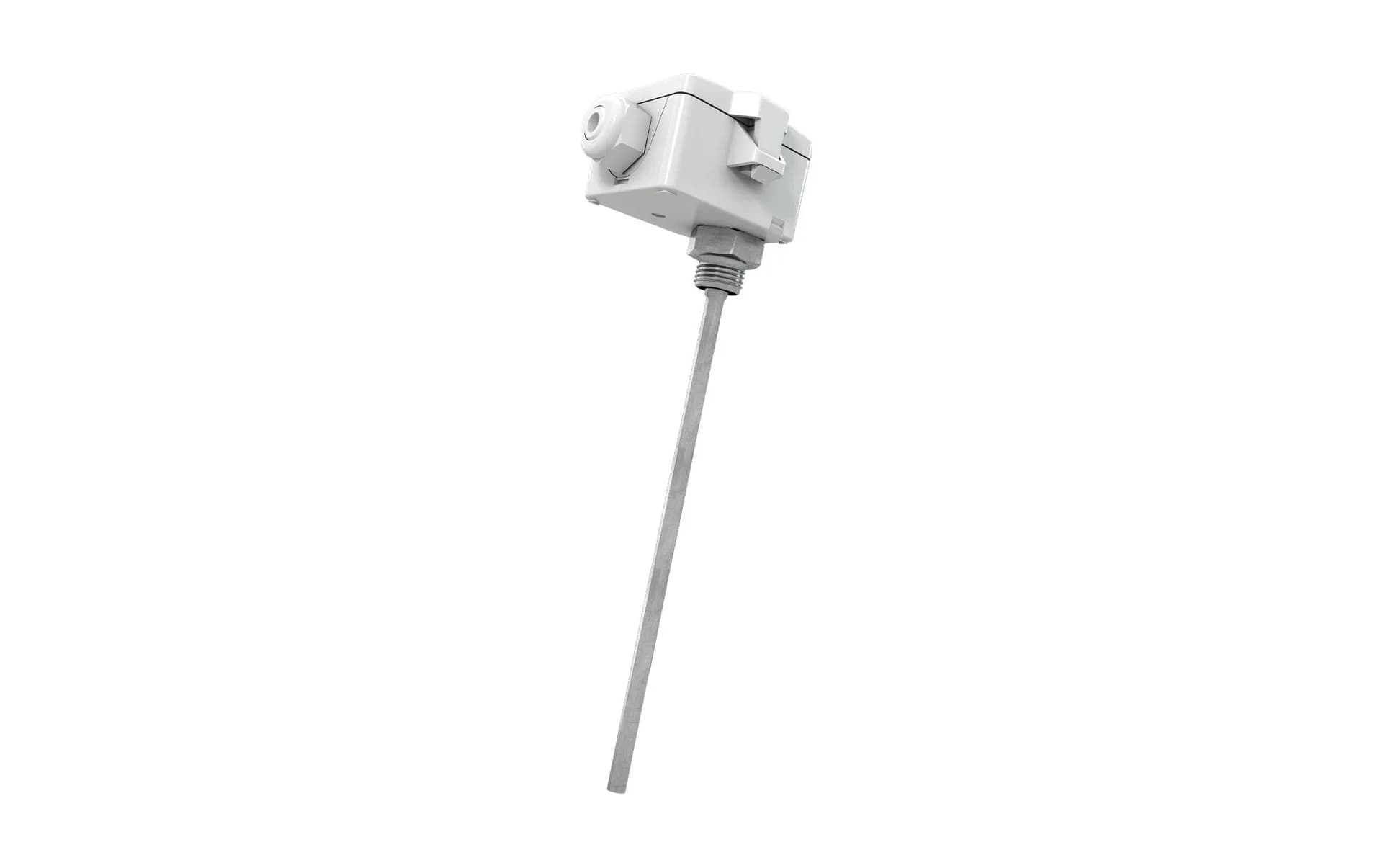

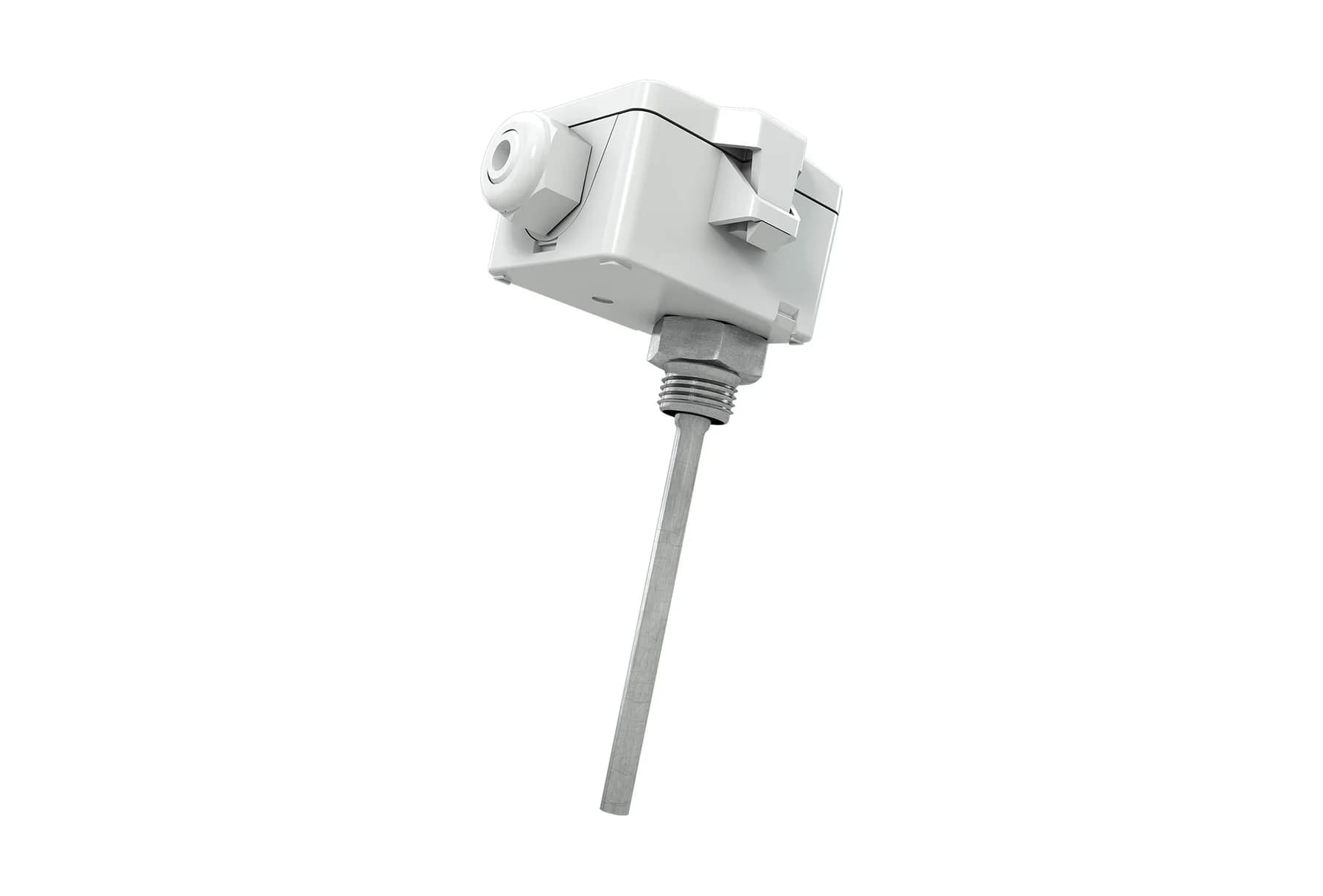

Thermokon · Immersion sensor
SFK02+ passive
Passive immersion temperature sensor with an 8 mm stainless steel probe and G1/2 thread, in Pt100, Pt1000, NTC10k and Ni1000 versions.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number622424
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Connection
- Plug-in terminal up to 2.5 mm², M20 cable entry
Environment
- Operating temperature
- Enclosure -30 to +70 °C
- Humidity
- Max. 85% rH, short term condensation
- Protection
- IP65 IP rating
Performance
- Output signal
- Passive resistance element, 2, 3 or 4 wire
- Measuring range
- Up to -50 to +120 °C, -50 to +150 °C, -50 to +160 °C or -80 to +260 °C, by element
- Accuracy
- DIN class B, or 1/3 DIN on the Pt1000 1/3 DIN type
- Sensor element
- Pt100, Pt1000, Pt1000 1/3 DIN, NTC10k or Ni1000, by part
- Probe length
- 50, 100, 150, 200, 250 or 450 mm, 8 mm stainless steel V4A
Physical
- Housing material
- PC, USE-S enclosure with quick-release cover
- Mounting
- G1/2 thread
Part numbers
- 622295Pt100, 50 mm probe
- 622301Pt100, 100 mm probe
- 622318Pt100, 150 mm probe
- 622325Pt100, 200 mm probe
- 622332Pt100, 250 mm probe
- 622349Pt100, 450 mm probe
- 622417Pt1000, 50 mm probe
- 622424Pt1000, 100 mm probe
- 622431Pt1000, 150 mm probe
- 622448Pt1000, 200 mm probe
- 622455Pt1000, 250 mm probe
- 622462Pt1000, 450 mm probe
- 621946Pt1000 1/3 DIN, 50 mm probe
- 621953Pt1000 1/3 DIN, 100 mm probe
- 621960Pt1000 1/3 DIN, 150 mm probe
- 621977Pt1000 1/3 DIN, 200 mm probe
- 621984Pt1000 1/3 DIN, 250 mm probe
- 621991Pt1000 1/3 DIN, 450 mm probe
- 622004NTC10k, 50 mm probe
- 622011NTC10k, 100 mm probe
- 622028NTC10k, 150 mm probe
- 622035NTC10k, 200 mm probe
- 622042NTC10k, 250 mm probe
- 622059NTC10k, 450 mm probe
- 622080Ni1000, 50 mm probe
- 622097Ni1000, 100 mm probe
- 622103Ni1000, 150 mm probe
- 622110Ni1000, 200 mm probe
- 622127Ni1000, 250 mm probe
- 622141Ni1000, 450 mm probe
- 622158Ni1000TK5000, 50 mm probe
- 622165Ni1000TK5000, 100 mm probe
- 622189Ni1000TK5000, 150 mm probe
- 622196Ni1000TK5000, 200 mm probe
- 622202Ni1000TK5000, 250 mm probe
- 622219Ni1000TK5000, 450 mm probe
From the manufacturer's datasheet for SFK02+ passive.
Overview
The SFK02+ measures temperature in gases and liquids in HVAC systems. It screws directly into a bonded pocket, and the measuring insert can be exchanged without taking the whole sensor apart. SFKH02+ types with a 70 mm neck pipe are for insulated pipework. This page covers the passive versions, which have a resistance element and no transmitter. The listed parts are Pt100, Pt1000, Pt1000 1/3 DIN, NTC10k, Ni1000 and Ni1000TK5000, each with a probe of 50, 100, 150, 200, 250 or 450 mm. The enclosure is a USE-S with a quick-release cover.
