Thermokon · Immersion sensor
Immersion temperature sensor for water lines and tanks, with a fixed measuring range, 0 to 10 V or 4 to 20 mA output and 100 to 250 mm probes.
Availability and lead time confirmed on your quote
Part number246958
From the manufacturer's datasheet for SFK03 active.

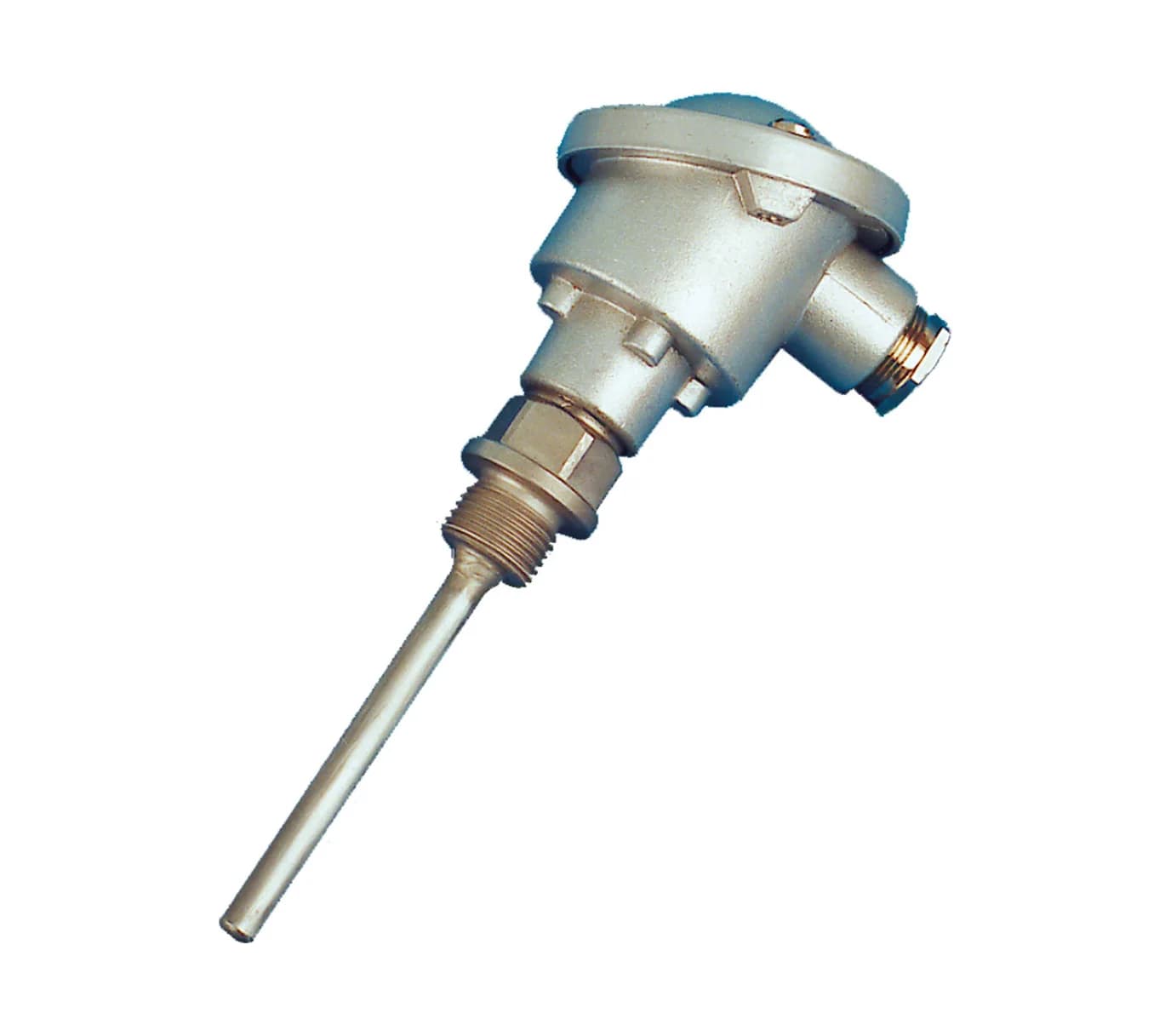

The SFK03 is an immersion sensor with an integrated thermowell for measuring liquid temperature in HVAC applications such as water lines and tanks. It connects to a higher level control system. The SFKH03 type with a 70 mm neck pipe is for insulated pipes. Each part has a fixed output range, numbered 1 to 5, and either a 0 to 10 V or a 4 to 20 mA output, with probe lengths of 100, 150, 200 or 250 mm. The enclosure is aluminium form B, IP66.
