Thermokon · Room sensor · EnOcean

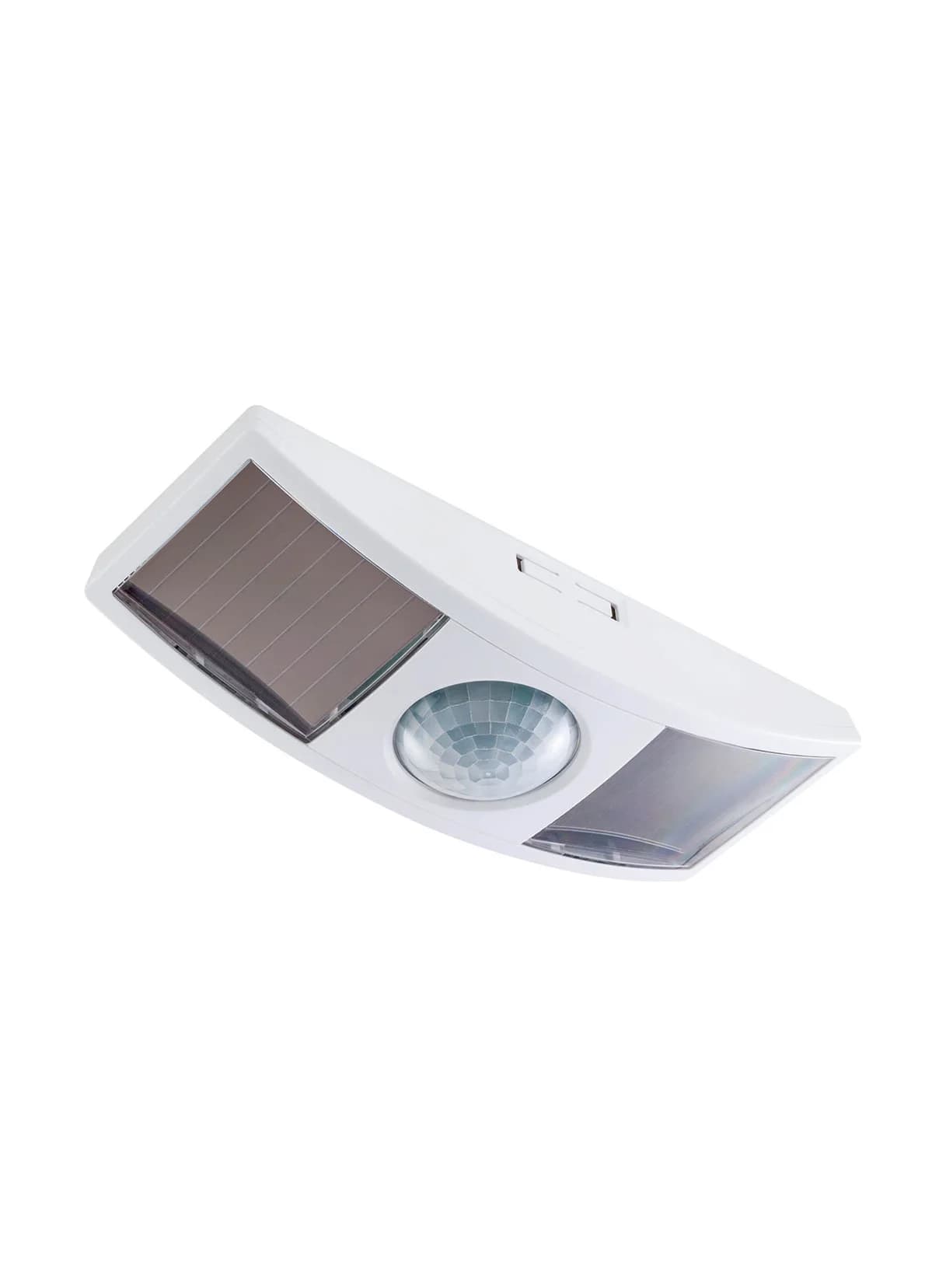

SR-MOC Solar EnOcean

Name: SR-MOC Solar EnOcean
Brand: Thermokon
SKU: 566070

Solar powered EnOcean ceiling sensor that detects motion for lighting and HVAC control through EasySens receivers or gateways.

Availability and lead time confirmed on your quote

Part number566070

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Protocol: EnOcean (868 MHz)
Interface: EnOcean IEC 14543-3-10, EEP A5-07-01, transmit power below 10 mW

Electrical

Power supply: Solar cell with super capacitor; optional CR2032 coin cell or 3 to 5 V DC external supply

Environment

Operating temperature: -10 to +40 °C, humidity up to 85% rH non-condensing
Protection: IP50 IP rating

Performance

Sensor element: PIR, 360 degrees, 5 m diameter at about 2.5 m height

Physical

Housing material: PC
Colour: White
Mounting: Surface mounted flat, with adhesive pad or screws
Dimensions: 160 x 60 x 38 mm
Weight: 125 g

From the manufacturer's datasheet for 566070.

Overview

The SR-MOC Solar is a wireless ceiling mounted motion sensor. A passive infrared sensor covers a 360 degree area about 5 m across at a mounting height of about 2.5 m. A solar cell powers it, with an internal super capacitor to carry it through the dark. A CR2032 coin cell or an external 3 to 5 V DC supply can be used where the light is poor. It sends an EnOcean telegram (EEP A5-07-01) as soon as it detects motion, every 2 minutes while someone is present, every 10 and 30 minutes when no one is present, and a heartbeat every 60 minutes if enabled.
