Thermokon · Room sensor · EnOcean

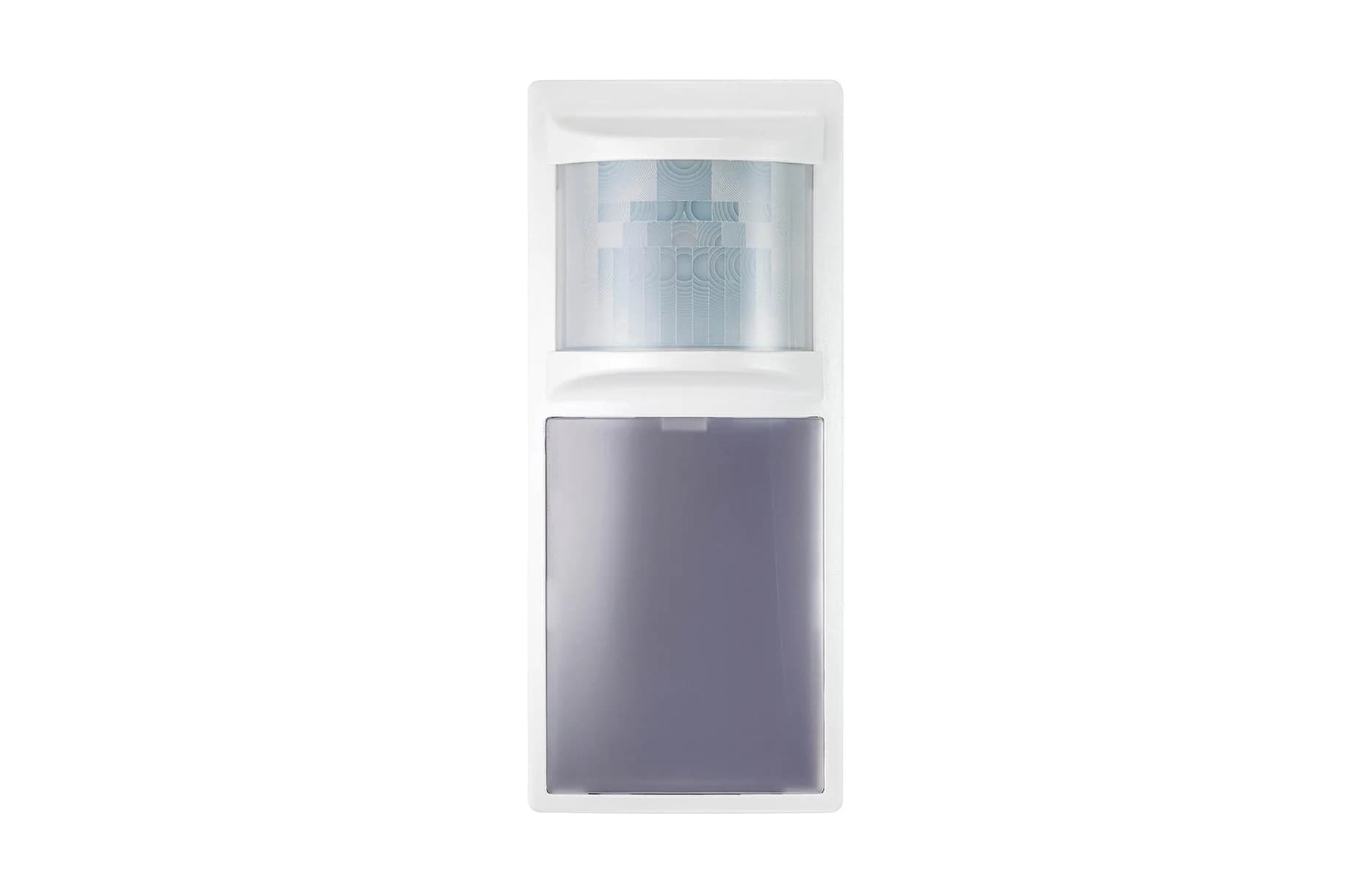

SR-MOW Solar EnOcean

Name: SR-MOW Solar EnOcean
Brand: Thermokon
SKU: 566094

Wall-mounted wireless motion detector that runs on a solar cell and sends EnOcean telegrams to EasySens receivers and gateways.

Availability and lead time confirmed on your quote

Part number566094

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Protocol: EnOcean (IEC 14543-3-10), EEP A5-07-01
Interface: EnOcean 868 MHz, transmission power under 10 mW

Electrical

Power supply: Solar cell, coin cell CR2032 back-up, or external 3 to 5 V DC

Environment

Operating temperature: -10 to +40 °C
Humidity: max. 85% rH, non-condensing
Protection: IP20 IP rating

Performance

Sensor element: PIR (passive infrared)
Measuring range: Motion, up to 15 m (wide angle lens) or 30 m (field lens)

Physical

Housing material: PC
Colour: White
Mounting: Surface mounted on base, adhesive pad or screws
Dimensions: 148 x 64 x 28 mm
Weight: 125 g

From the manufacturer's datasheet for 566094.

Overview

The SR-MOW Solar is an energy-harvesting wireless motion detector for wall mounting. It uses a PIR sensor and sends EnOcean telegrams (EEP A5-07-01) to EasySens receiving actuators or gateways. It is powered by a solar cell with a maintenance-free internal super cap. A CR2032 coin cell can be fitted as back-up where the light is poor, and there is a terminal for an external 3 to 5 V DC supply. It sends immediately when motion is seen, every 2 minutes while someone is present, and every 10 and 30 minutes when the room is empty, with an optional 60 minute heartbeat.
