Thermokon · Room sensor · EnOcean

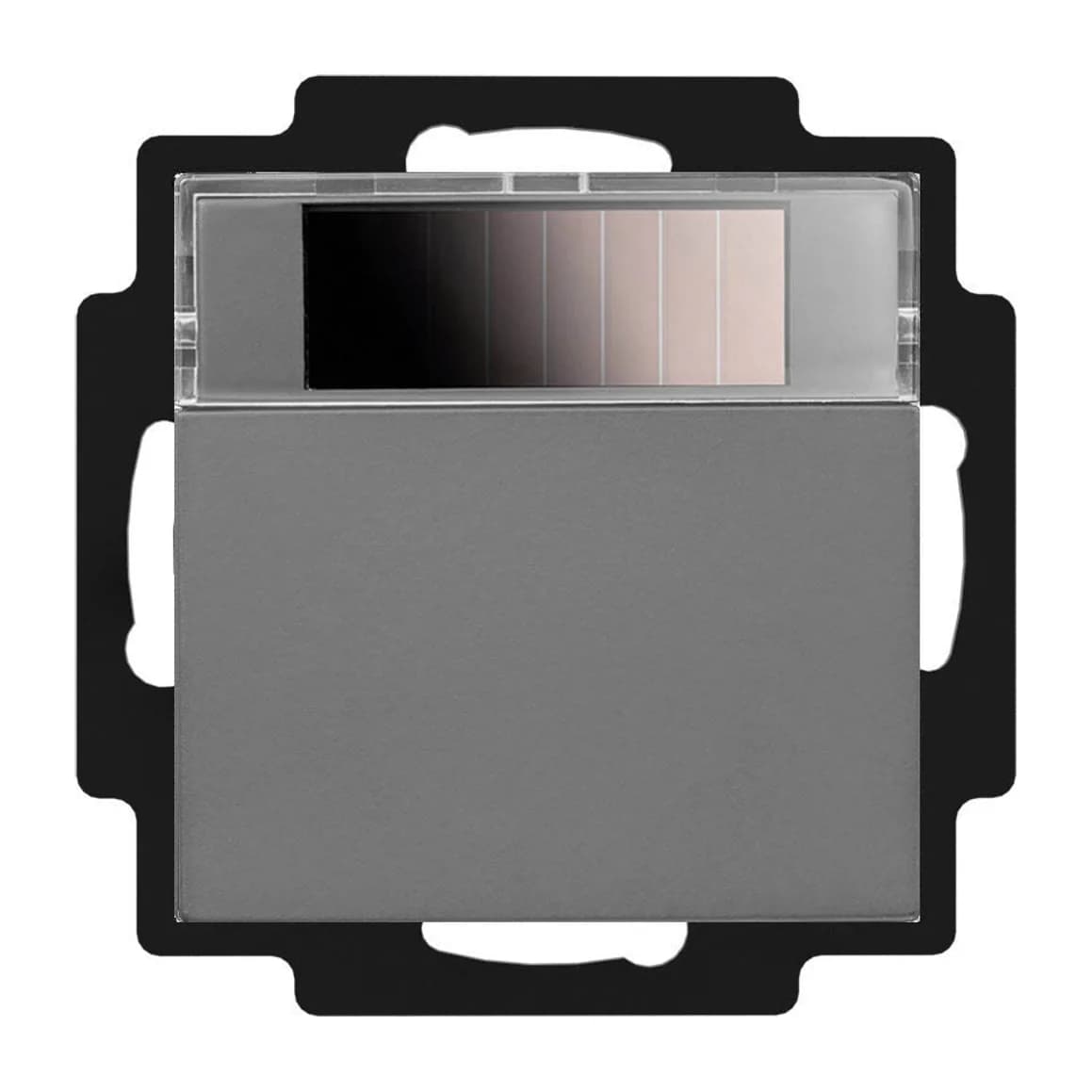

SR07 EnOcean
Solar powered wireless room sensor for temperature, or temperature and humidity, that fits common switch range frames.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number729437
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- EnOcean (IEC 14543-3-10)
- Interface
- EnOcean 868 MHz (902 MHz also listed), transmission power under 10 mW
Electrical
- Power supply
- Solar cell, internal super cap, optional CR1632 coin cell
Environment
- Operating temperature
- 0 to +40 °C
- Humidity
- max. 85% rH, non-condensing
- Protection
- IP20 IP rating
Performance
- Measuring range
- Temperature 0 to +40 °C (output scaling), humidity 0 to 100% rH (temp_rH versions)
- Accuracy
- Temperature +/-0.4 K, humidity +/-5% rH at 30 to 70% rH, typical at 21 °C
Physical
- Housing material
- PC
- Colour
- Pure white brilliant or anthracite, by version
- Mounting
- Surface mounted flat on base with adhesive foil or screws
- Dimensions
- 55 x 55 x 13 mm
- Weight
- 45 g
Part numbers
From the manufacturer's datasheet for SR07 EnOcean.
Overview
The SR07 is an energy-harvesting wireless room sensor for homes and commercial buildings. It sends its readings one way, over EnOcean, to EasySens receiving actuators or gateways, which pass them to a BMS controller. It runs from a solar cell with an internal super cap, and a CR1632 coin cell can be fitted as back-up in poorly lit rooms. It fits into frames from Berker, Busch-Jaeger, Feller, Gira, Jung and Merten ranges, with the frame chosen when ordering. The versions listed are temperature, or temperature and humidity, in pure white brilliant or anthracite.
