Thermokon · Outdoor sensor · EnOcean

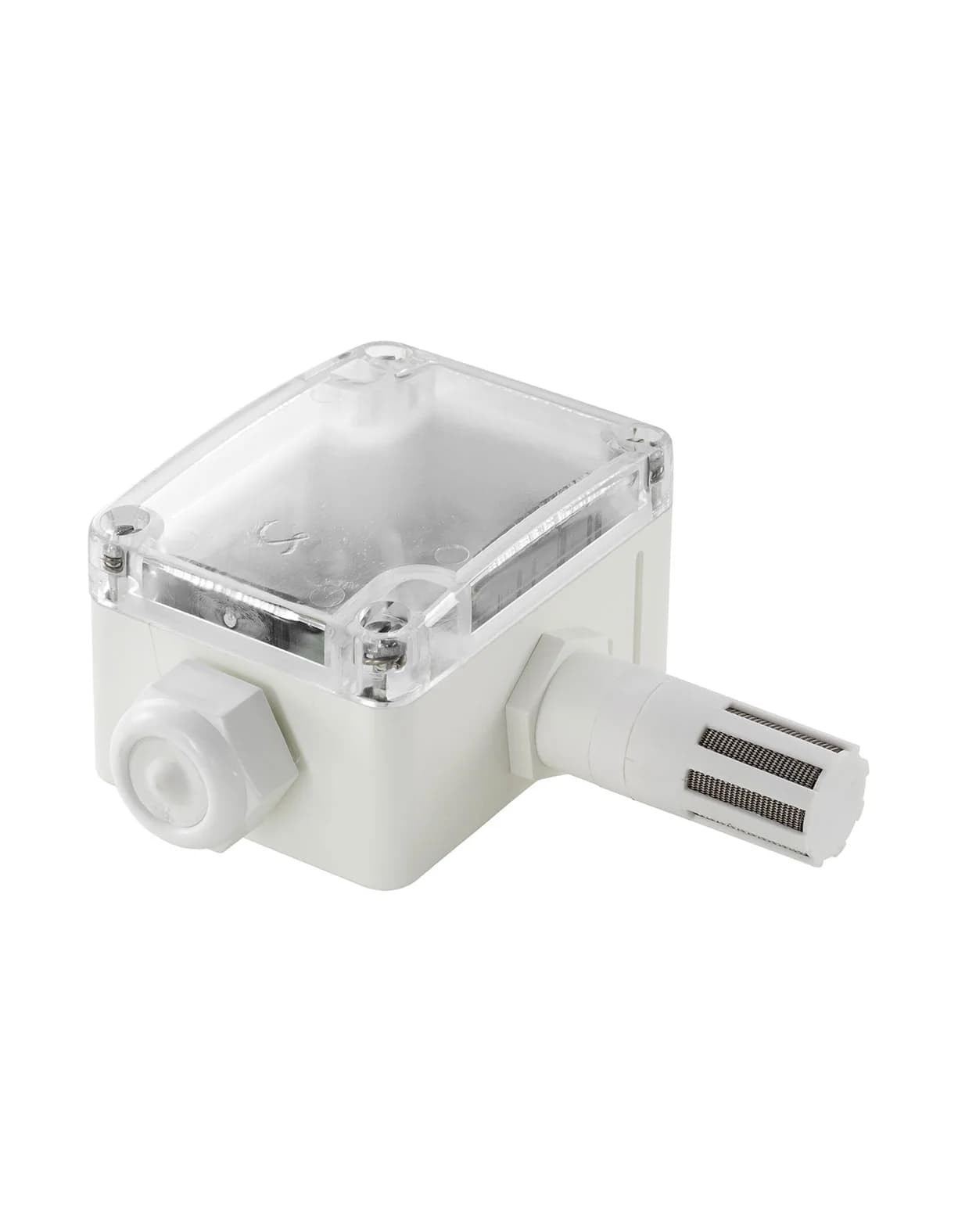

SR65 EnOcean
Solar powered wireless outdoor sensor for temperature, or temperature and humidity, sending EnOcean telegrams.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number230001
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Overview
The SR65 is an energy-harvesting wireless sensor for outdoor areas and harsh indoor spaces such as cold stores, production halls and warehouses. It runs from a solar cell with an internal super cap. Where it is too dark, for example in a server room, a back-up LS14250 (3.6 V) battery can be fitted. It sends standard EnOcean telegrams (EEP A5-02-14). The airConfig software sets measurement ranges, transmission intervals and wake-up times. The housing is IP65 with quick lock screws.
Specification12 values · 2 part numbers
Communication
- Protocol
- EnOcean (IEC 14543-3-10), EEP A5-02-14 (4BS)
- Interface
- EnOcean 868 MHz (902 MHz also listed), transmission power under 10 mW
Electrical
- Power supply
- Solar cell, internal super cap, optional LS14250 3.6 V battery
Environment
- Operating temperature
- -25 to +65 °C
- Humidity
- max. 85% rH, short term condensation
- Protection
- IP65
Performance
- Measuring range
- Temperature -20 to +60 °C (output scaling), humidity 0 to 100% rH (temp_rH version)
- Accuracy
- Temperature +/-1% of measuring range, humidity +/-5% rH at 30 to 70% rH, typical at 21 °C
- Probe length
- 50 mm, 19 mm diameter filter pipe
Physical
- Housing material
- PA6.6
- Colour
- Pure white, transparent cover
- Dimensions
- 78 x 58 x 46 mm
From the manufacturer's datasheet for SR65 EnOcean.
