Thermokon · Repeater · EnOcean
SRE-Repeater
EnOcean repeater with level 1, level 2 and rule based smart repeating, with an internal or external antenna.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number593809
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- EnOcean (868 and 902 MHz)
- Connection
- Terminal block, up to 1.5 mm²
Electrical
- Power supply
- 15 to 240 V AC or DC
- Power consumption
- 1 VA typical
Environment
- Operating temperature
- -20 to +60 °C
- Humidity
- Maximum 85% rH, non-condensing
- Protection
- IP65 IP rating
Physical
- Housing material
- PA6.6, transparent PC cover
- Colour
- Pure white
- Dimensions
- 78 x 58 x 46 mm
- Weight
- 110 g
Part numbers
From the manufacturer's datasheet for SRE-Repeater.
Overview

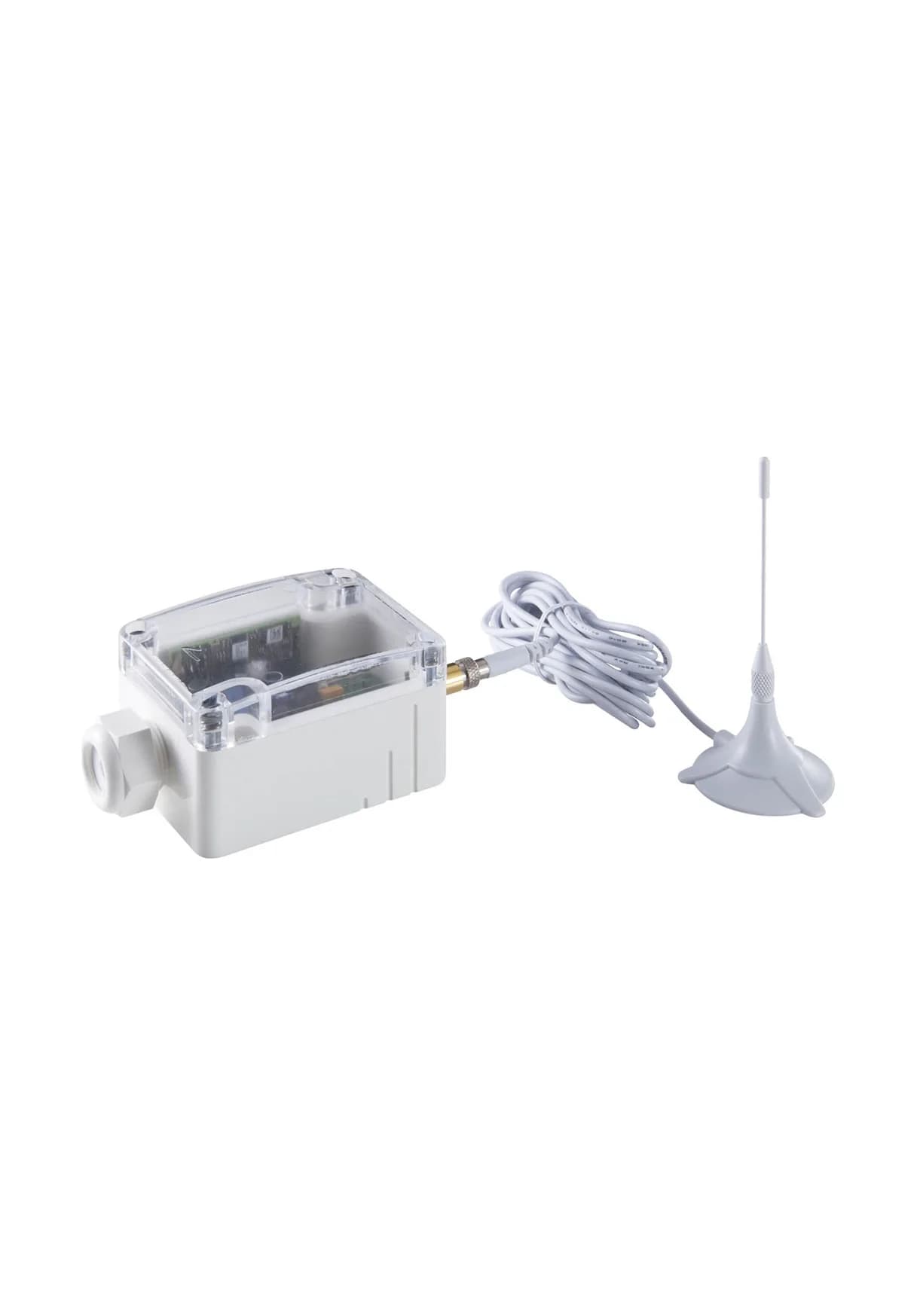

The SRE-Repeater re-sends EnOcean radio telegrams between transmitters and receivers where range is a problem, for example after walls go up or furniture moves. It can work as a level 1 or level 2 repeater, or in smart mode with up to ten rule based filters, all set with the free airConfig software. It is made for suspended ceilings, in an IP65 housing with flexible 15 to 240 V supply. The external antenna version comes with a 2.5 m antenna on a magnetic base.
