Thermokon · Window contact · EnOcean
SRW03 BAT

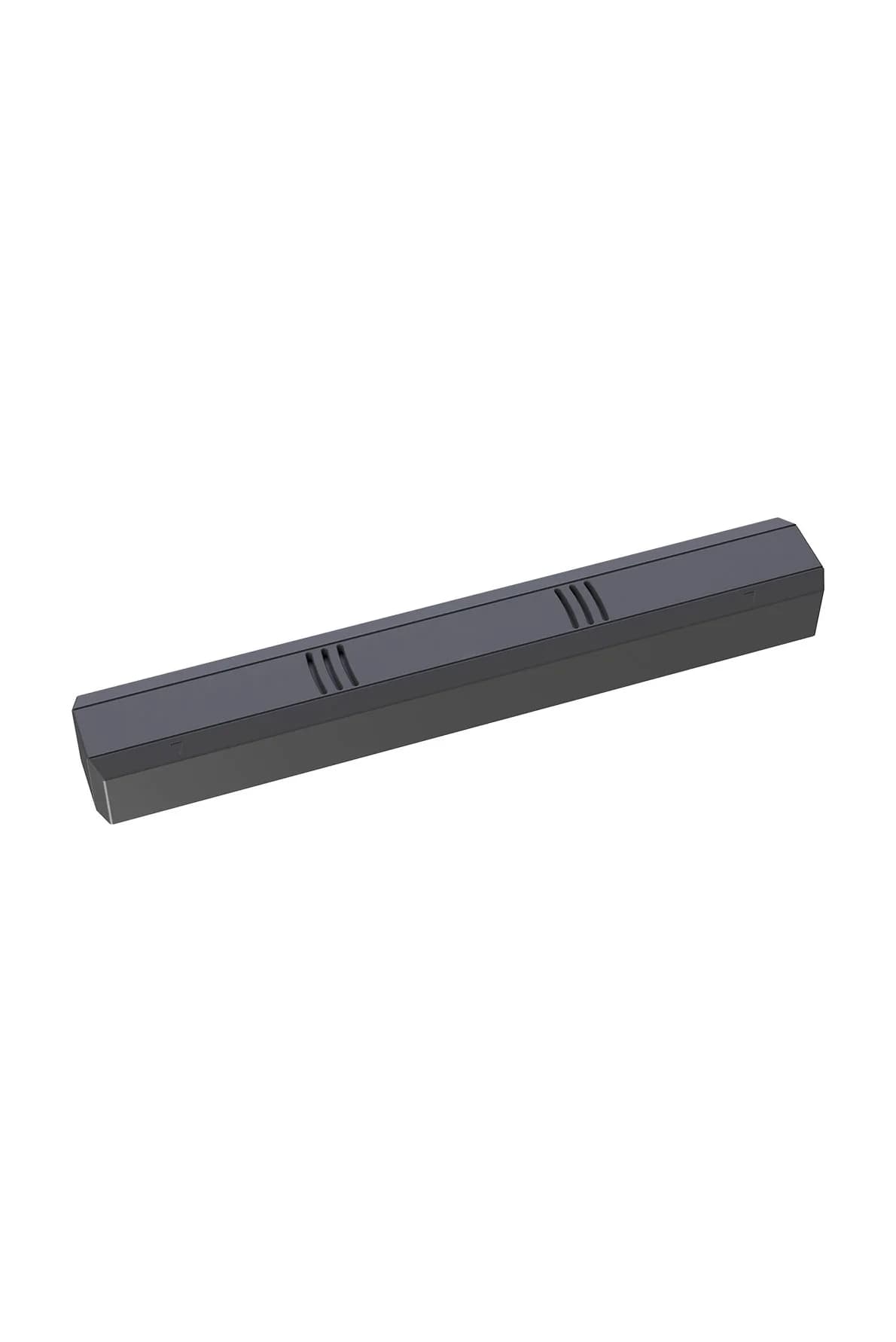

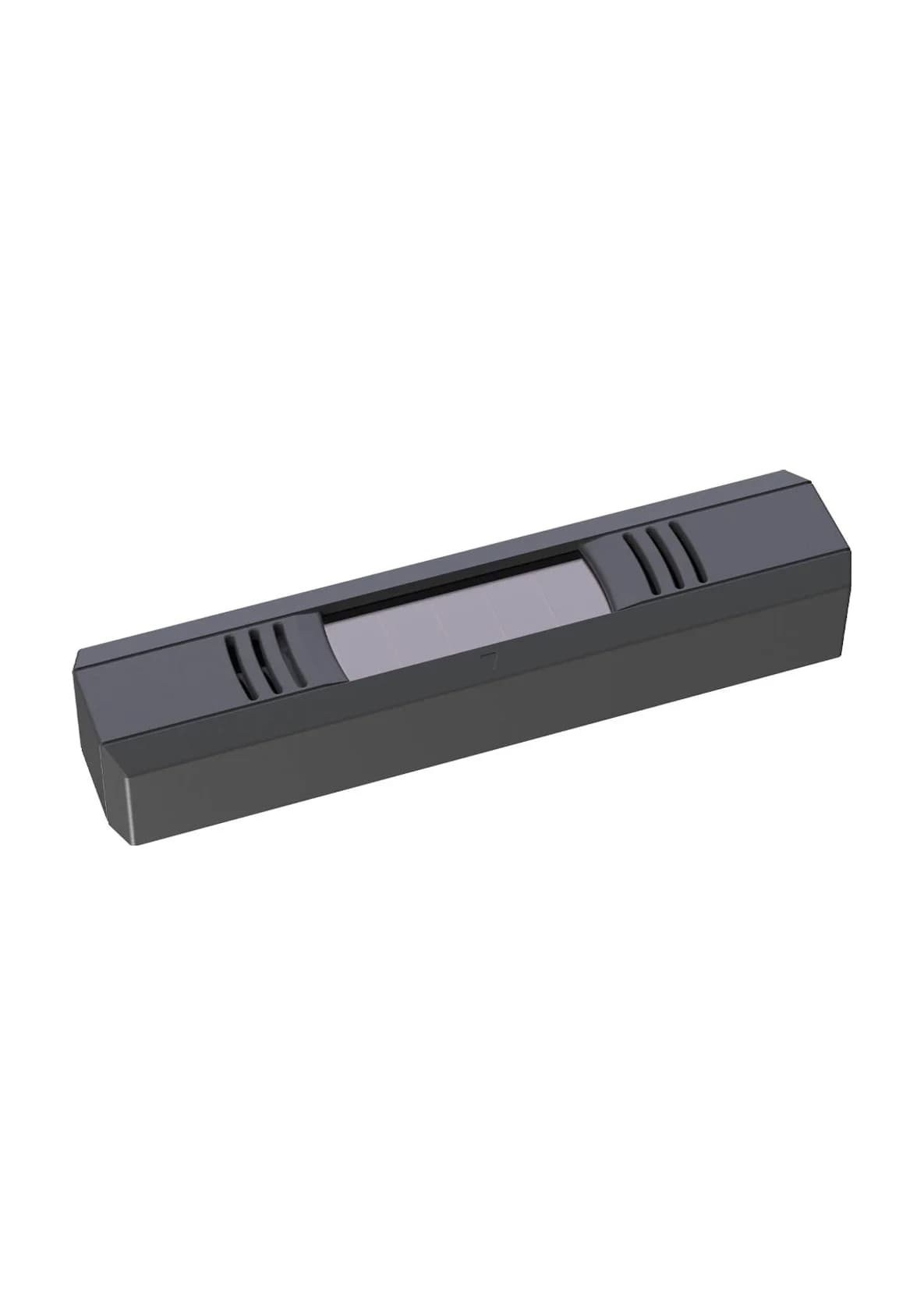

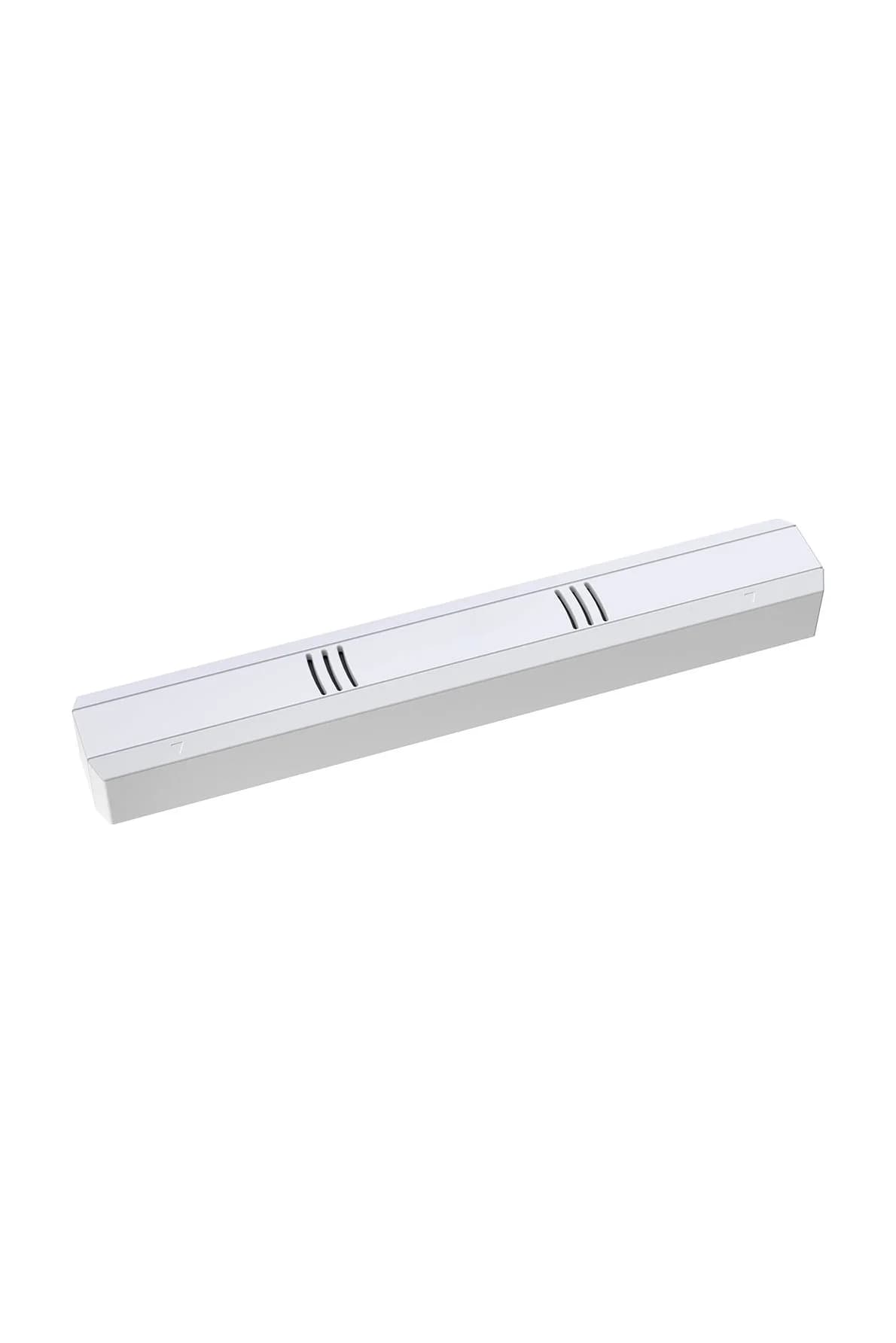

EnOcean wireless window and door contact (BAT version) in white or anthracite, for room control and energy saving.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number793728
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- EnOcean (IEC 14543-3-10), 868 MHz
- Interface
- EnOcean EEP D5-00-01 (1BS)
Electrical
- Power supply
- Solar cell with internal super cap; CR1225 coin cell as back-up in poorly lit rooms
Environment
- Operating temperature
- -20 to +60 °C
- Humidity
- Max. 85% rH, non-condensing
- Protection
- IP20 IP rating
Performance
- Sensor element
- Reed contact and magnet
Physical
- Housing material
- PC V0
- Colour
- White or anthracite
- Mounting
- Surface mount on a flat base with the supplied adhesive pad or screws
Part numbers
From the manufacturer's datasheet for SRW03 BAT.
Overview
The SRW03 BAT monitors the state of a window or door and sends it by EnOcean radio. It suits retrofits in hotel rooms and offices, where it lets the room controller reduce heating or cooling when a window is open. A solar cell charges an internal super cap, and a CR1225 coin cell can back it up in dim locations. The contact is a reed switch with a magnet, and the unit fixes flat with adhesive pad or screws.
