Logicboks · Mounting bracket
SYX-DDC-SMB and LMB
Mounting plate with DIN rail and fixings that carries a DDC420 or SYX controller on a panel front, in a small size for new work and a large size for retrofits.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part numberSYX-DDC-SMB
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Physical
- Dimensions
- Small 180 x 120 mm; large 240 x 180 mm
- Mounting
- Panel front with DIN rail for the controller
Part numbers
From the manufacturer's datasheet for SYX-DDC-SMB and LMB.
Overview

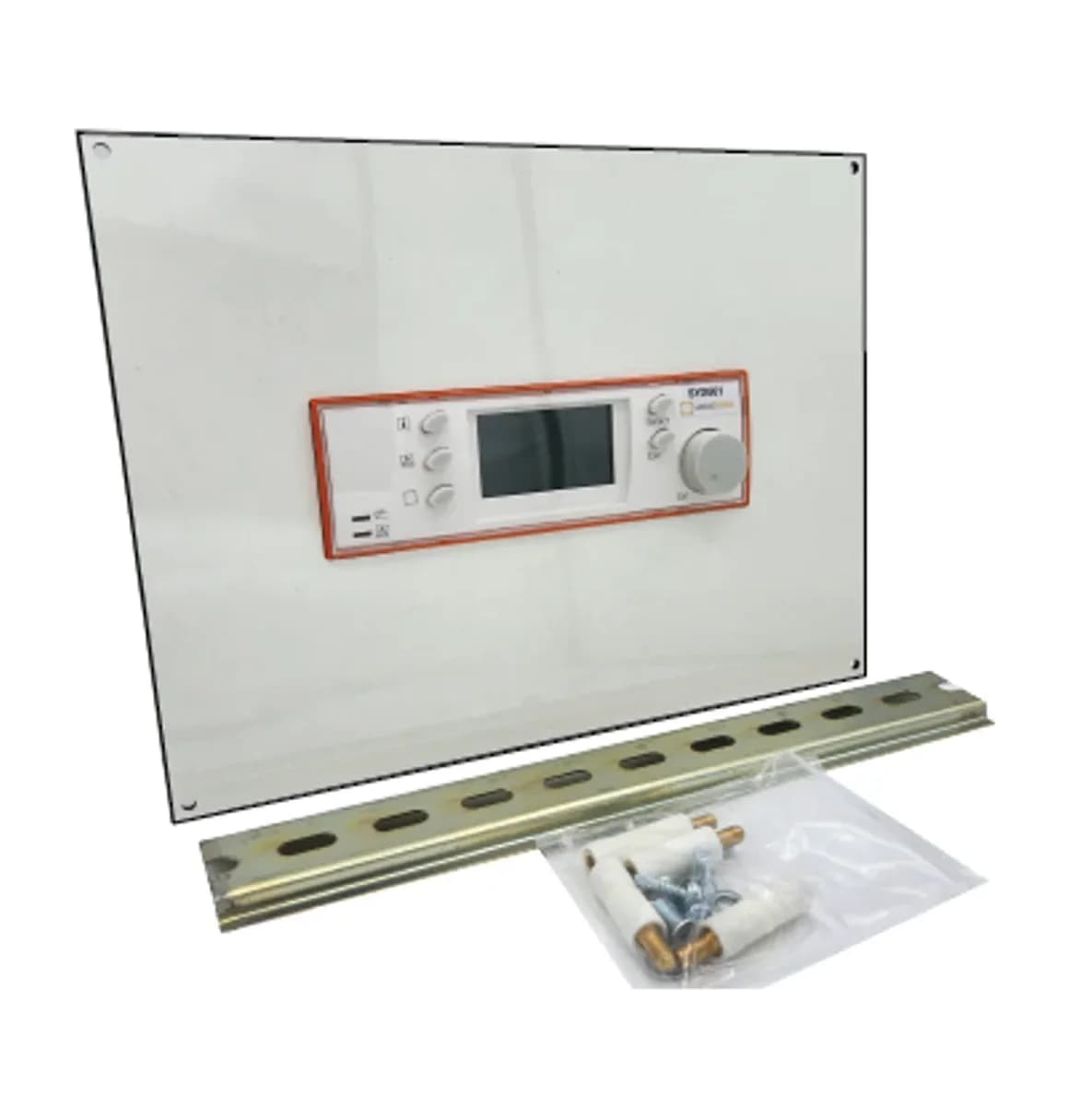

The mounting bracket is a front plate with a DIN rail and fixings on which a DDC420 or SYX optimiser compensator is fitted so that its display and controls sit in a cut-out in a panel. The small bracket, 180 x 120 mm, is for new installations. The large bracket, 240 x 180 mm, is for retrofits where the cut-out or fixing holes of an existing controller need to be covered. The bracket kit is supplied with the DIN rail and fixing screws, as shown in the photos.
