Logicboks · Optimiser compensator · BACnet
SYX662
SYX662 is a compact heating optimiser compensator for Ni1000 LG sensors, controlling one compensated circuit, up to two boilers and hot water.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part numberSYX662
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Interface
- Ethernet 10/100 Base-T with built-in web server
- Protocol
- BACnet server over Ethernet
Electrical
- Power supply
- 110 to 230 V AC ±10%, 50/60 Hz, 21 VA (time-delay fuse 1.25 A); relays do not supply voltage
Environment
- Operating temperature
- 0 to 50 °C
- Humidity
- Up to 95 % r.h., non-condensing
- Protection
- IP20 (controller) IP rating
Performance
- Inputs
- 7 analog, including outside, VT flow, space, boiler flow, boiler return and hot water flow temperatures; 2 digital, volt-free normally open, for overrides
- Outputs
- 1 analog; 6 relay outputs, 250 V AC, 5 (3) A: valve open, valve close, pump enable, boiler 1 enable, boiler 2 enable, hot water
- Approvals
- CE: EN 61000-6-3:2001 (emissions), EN 61000-6-2:2001 (immunity)
- Sensor element
- Ni1000 LG
Physical
- Mounting
- DIN rail; removable terminal blocks
- Dimensions
- 143.5 x 90 x 67 mm (controller only)
- Weight
- 500 g (controller only)
From the manufacturer's datasheet for SYX662.
Overview

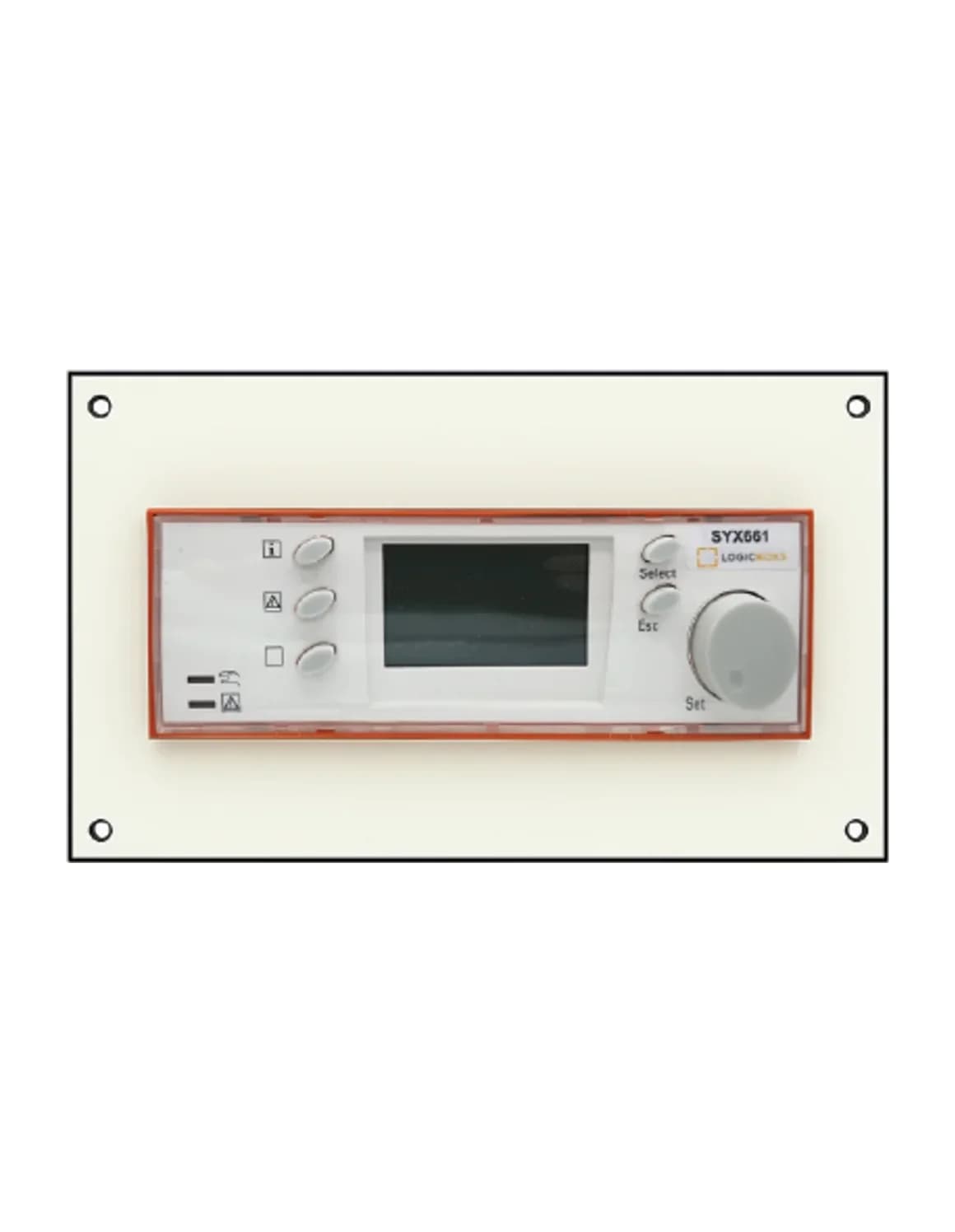

The SYX662 is an optimiser compensator controller for simple heating circuits. It controls a single compensated heating zone through a mixing valve or boiler modulation, with a heating time schedule, pump control with optional room sensor influence, and a hot water output. It is a Logicboks replacement for Siemens optimiser compensators and uses Ni1000 LG sensors. The controller has a backlit text display with set knob and buttons, plus a built-in web server so settings, time schedules and overrides can be changed from a browser. Functions include optimum start and stop, day economy, three-stage frost protection, pump run-on, up to two boilers with lead rotation, valve and pump exercise, a 30 minute service mode, four heating periods per day and Auto, Summer, Continuous, Frost and Service overrides. Alarm messages are logged with the event time. It mounts on a DIN rail and runs from a 110 to 230 V AC supply. A TPC35 or TPC56 remote colour touch panel (as SYX-TPC35 or SYX-TPC56) or a TPC070 (SYX-TPC070) can be added, and mounting brackets and a wall box are listed separately.
